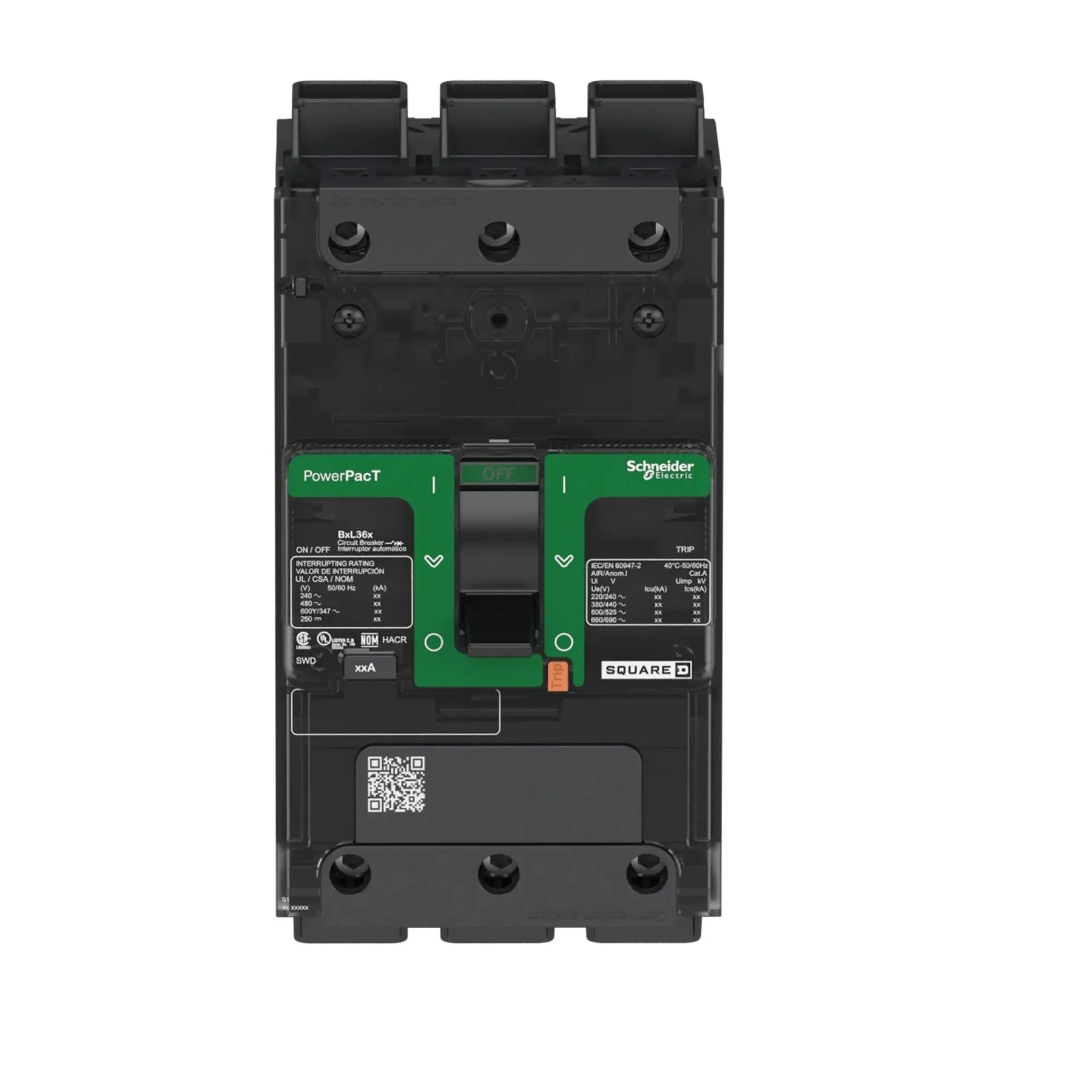

Square D BGL36070 PowerPacT B-Frame Molded Case Circuit Breaker – 3 Pole – 70A – 600Y/347VAC – Feed-Thru – Thermal Magnetic

In stock
SKU: BGL36070 GTIN/UPC: 3606489779320
$1,085.40
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D BGL36070 is a PowerPacT B-Frame molded case circuit breaker designed for commercial, industrial, and OEM electrical distribution systems. Manufactured by Schneider Electric under the Square D brand, this 3-pole, 70A breaker provides reliable thermal-magnetic protection for branch and feeder circuits in a compact, high-performance enclosure.

Built with a feed-thru unit-mount design, the BGL36070 supports flexible installation using either traditional back-pan mounting or integrated DIN rail mounting. It incorporates EverLink lug technology on both line and load terminals, which helps maintain secure conductor connections by reducing loosening caused by vibration and thermal cycling.

The breaker uses dual-break rotating contacts to help limit peak fault current during short-circuit events, improving system stability and equipment protection. An integrated push-to-trip button allows for manual testing and operational verification. With a 35kA interrupting rating at 480VAC and an 18kA rating at 600Y/347VAC, it is suitable for demanding industrial environments requiring dependable fault protection.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: BGL36070
  • Series: PowerPacT B-Frame
  • Type: Molded Case Circuit Breaker
  • Configuration: 3 Pole
  • Phase: 3 Phase
  • Current Rating: 70A
  • Voltage Rating: 600Y/347VAC
  • Connection Type: Feed-Thru
  • Mounting Style: Unit Mount
  • Protection Type: Thermal Magnetic
  • Trip Function: Long-Time and Instantaneous (LI)
  • Continuous Current Rating: 80%

Interrupting Ratings

  • 35kA @ 480VAC
  • 18kA @ 600Y/347VAC

Construction Features

  • Compact PowerPacT B-Frame design
  • Thermal-magnetic trip system
  • Dual-break rotating contact design for current limitation
  • Feed-thru configuration with EverLink line and load lugs
  • Push-to-trip button for manual testing
  • Back-pan and DIN rail mounting flexibility
  • Non-interchangeable trip unit
  • Industrial-grade molded case construction

Applications

  • Industrial electrical distribution systems
  • Commercial power panels
  • Motor control centers
  • OEM equipment and machinery
  • Switchboards and feeder protection
  • HVAC and building electrical systems

Certifications & Approvals

  • UL Listed
  • CSA Certified
  • NOM Compliant
  • IEC Compliant
  • CE Marked
  • Square D / Schneider Electric genuine product
  • Designed to meet UL 489 and related industrial standards
