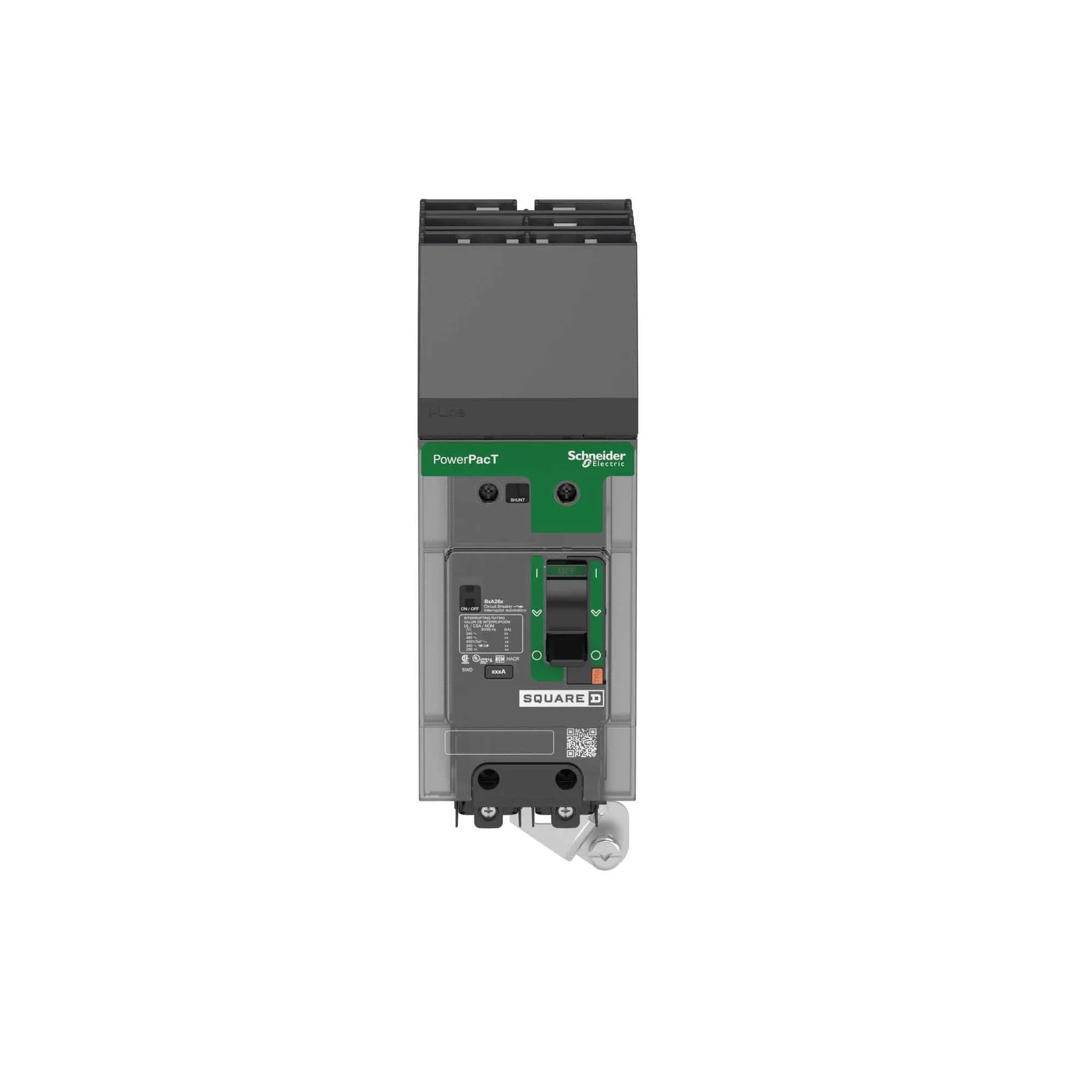

Square D BJA260201 PowerPacT B-Frame Molded Case Circuit Breaker – 2 Pole – 20A – 600Y/347VAC – I-Line Plug-In – Thermal Magnetic

The Square D BJA260201 is a PowerPacT B-Frame molded case circuit breaker designed for high-performance electrical protection in commercial and industrial power distribution systems. Manufactured by Schneider Electric under the Square D brand, this 2-pole, 20A breaker delivers reliable thermal-magnetic (LI) protection for branch circuits requiring high interrupting capacity and compact I-Line integration.

Engineered with an I-Line style plug-in connection, the BJA260201 is designed for fast installation into compatible Square D panelboards and switchboards. It features AB phase configuration and load-side mechanical lug terminals, supporting standardized panel layouts and efficient retrofit or new-build installations. The non-interchangeable trip unit ensures consistent and dependable protection characteristics across operating conditions.

With a high interrupting rating of 65kA at 480VAC, this breaker is suitable for demanding electrical environments where fault current levels are significant. Its compact footprint and rugged construction make it ideal for OEM equipment, industrial control systems, and commercial distribution applications.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: BJA260201
• Series: PowerPacT B-Frame
• Type: Molded Case Circuit Breaker
• Configuration: 2 Pole
• Phase: 1 Phase
• Current Rating: 20A
• Voltage Rating: 600Y/347VAC
• Connection Type: I-Line Style Plug-In
• Mounting Style: Plug-In (I-Line)
• Protection Type: Thermal Magnetic
• Trip Function: LI – Long-Time and Instantaneous

Interrupting Rating

• 65kA @ 480VAC

Construction Features

• Compact PowerPacT B-Frame design
• High interrupting capacity for industrial applications
• I-Line plug-in mounting system for fast installation
• Thermal-magnetic non-interchangeable trip unit
• AB phase configuration
• Load-side mechanical lug terminals
• Rugged molded case construction for durability

Applications

• Industrial power distribution systems
• Commercial panelboards and switchboards
• OEM machinery and control panels
• High fault-current environments
• Branch circuit protection applications

Certifications & Approvals

• UL Listed
• CSA Certified
• Schneider Electric / Square D genuine product
• Designed for PowerPacT B-Frame I-Line systems
• Meets applicable industrial electrical standards
