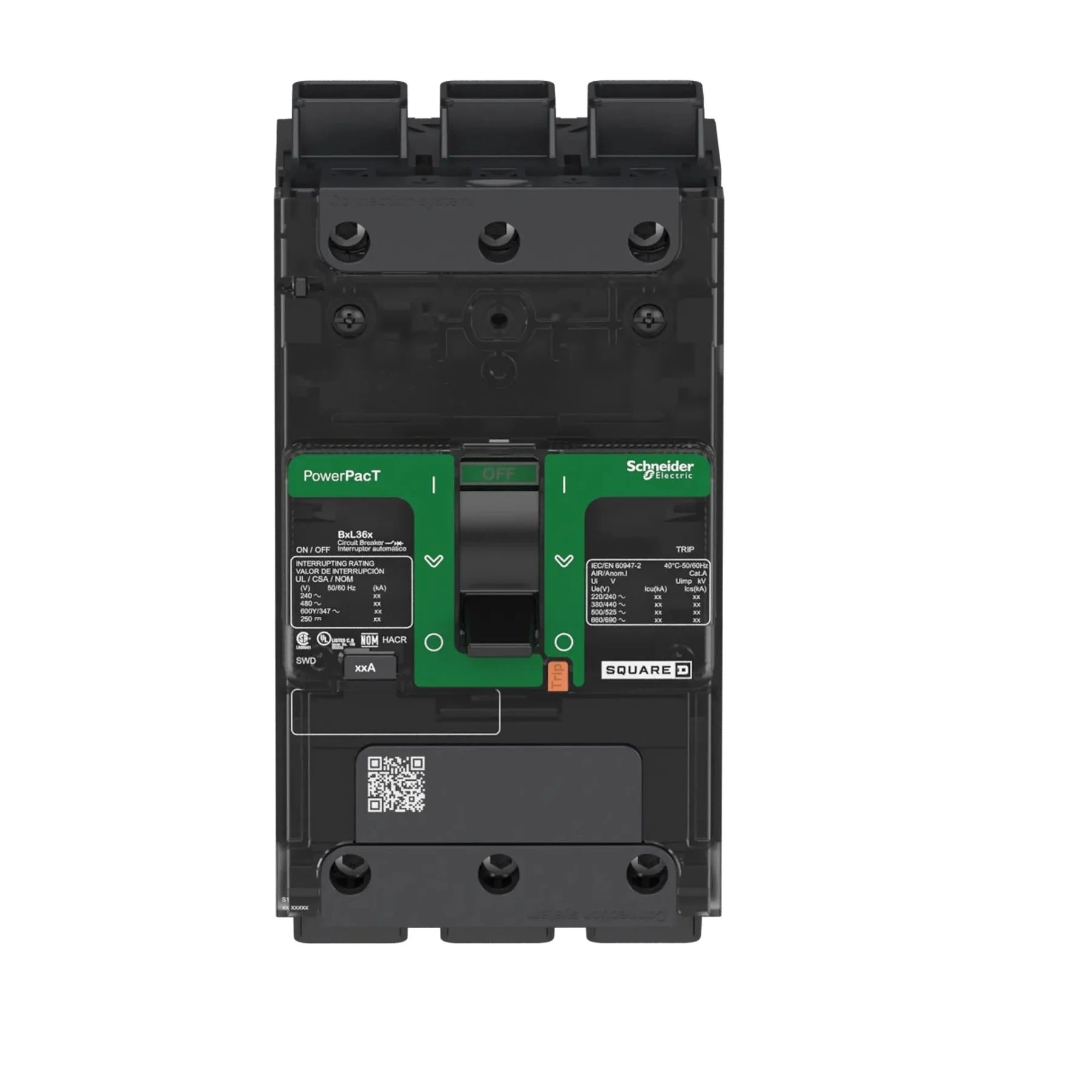

Square D BJL36030 Molded Case Circuit Breaker – 3 Pole – 30A – 600VAC – B-Frame – Feed-Thru – Thermal Magnetic – LI Trip

The Square D BJL36030 is a PowerPacT B-Frame molded case circuit breaker designed for reliable protection in industrial and commercial electrical distribution systems. Manufactured by Schneider Electric under the Square D brand, it provides dependable thermal-magnetic protection for branch circuit applications requiring high interrupting capacity and compact construction.

This 3-pole, 30A breaker is rated for 600VAC operation and is built with a feed-thru connection design for flexible installation in switchboards and control panels. It features LI (Long-Time and Instantaneous) fixed trip functions, ensuring consistent protection against overloads and short-circuit faults without field adjustment.

Engineered for durability and high performance, the BJL series is suitable for demanding environments and is commonly used as a replacement for legacy FA-series breakers. It incorporates a compact B-Frame design and is compatible with Square D PowerPacT systems.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: BJL36030
• Series: PowerPacT B-Frame
• Type: Molded Case Circuit Breaker
• Configuration: 3 Pole
• Phase: 3 Phase
• Current Rating: 30A
• Voltage Rating: 600VAC
• Mounting Style: Feed-Thru
• Frame Type: B-Frame
• Trip Function: LI (Long-Time and Instantaneous)
• Trip Technology: Thermal Magnetic
• Interrupt Rating: 25kA @ 600Y/347VAC (as specified)
• Connection Type: Line and Load Terminals
• Continuous Current Rating: 80%

Construction Features

• Compact B-Frame molded case design
• Feed-thru construction for flexible panel integration
• Dual-break contact system for improved fault interruption
• Fixed thermal and magnetic trip protection
• Designed for industrial and commercial distribution systems
• Compatible with Square D PowerPacT panelboards and switchboards

Applications

• Industrial power distribution
• Commercial electrical systems
• Motor branch circuit protection
• Switchboards and control panels
• OEM electrical equipment
• HVAC and building systems

Certifications & Standards

• UL 489 Listed
• CSA Certified
• IEC compliant
• CE marked
• NOM compliant
• NEMA AB 1 compliant design
