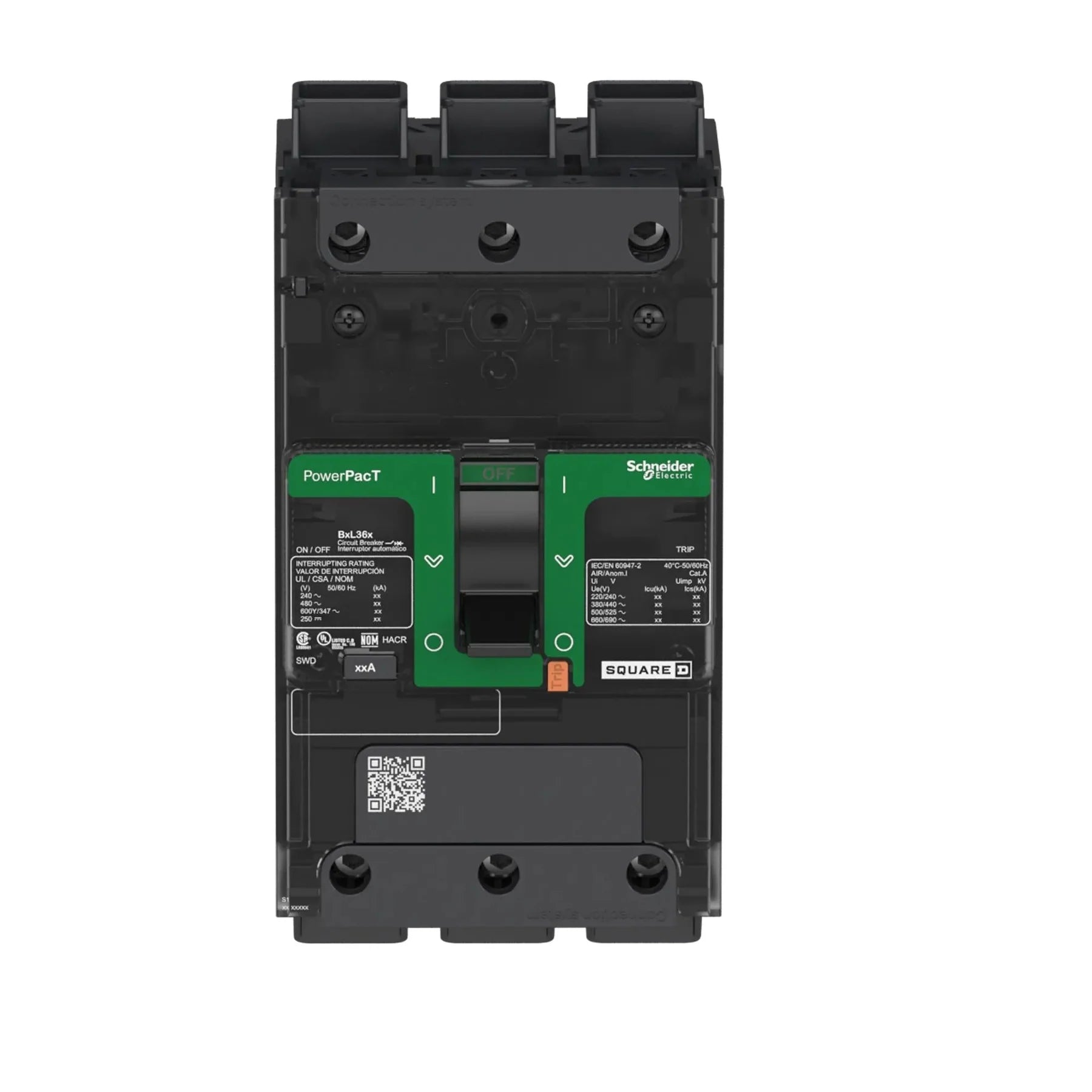

Square D BJL36070 Molded Case Circuit Breaker – 3 Pole – 70A – 600VAC – B-Frame – Feed-Thru – Thermal Magnetic – LI Trip

The Square D BJL36070 is a PowerPacT B-Frame molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. Manufactured by Schneider Electric under the Square D brand, it delivers dependable thermal-magnetic protection for branch circuits requiring high interrupting capacity and compact installation.

This 3-pole, 70A breaker is rated for 600VAC systems and features a feed-thru connection design for flexible installation in switchboards and control panels. It provides LI (Long-Time and Instantaneous) fixed trip functionality, ensuring consistent protection against overload and short-circuit conditions.

Built for durability and long service life, the BJL series is commonly used in industrial electrical distribution systems and as a replacement for legacy FA-series breakers. Its compact B-Frame construction allows efficient use of panel space while maintaining strong performance under fault conditions.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: BJL36070
• Series: PowerPacT B-Frame
• Type: Molded Case Circuit Breaker
• Configuration: 3 Pole
• Phase: 3 Phase
• Current Rating: 70A
• Voltage Rating: 600VAC
• Mounting Style: Feed-Thru
• Frame Type: B-Frame
• Trip Function: LI (Long-Time and Instantaneous)
• Trip Technology: Thermal Magnetic
• Interrupt Rating: 25kA @ 600Y/347VAC (as specified)
• Continuous Current Rating: 80%

Construction Features

• Compact B-Frame molded case design
• Feed-thru terminal construction
• Dual-break contact system for improved short-circuit interruption
• Fixed thermal and magnetic trip settings
• Designed for industrial and commercial distribution systems
• Compatible with Square D PowerPacT switchboards and panelboards

Applications

• Industrial power distribution systems
• Commercial electrical panels and switchboards
• Motor branch circuit protection
• HVAC and building systems
• OEM electrical equipment
• Control panel integration

Certifications & Standard

• UL 489 Listed
• CSA Certified
• IEC compliant
• CE marked
• NOM compliant
• NEMA AB 1 design compliance
