Square D

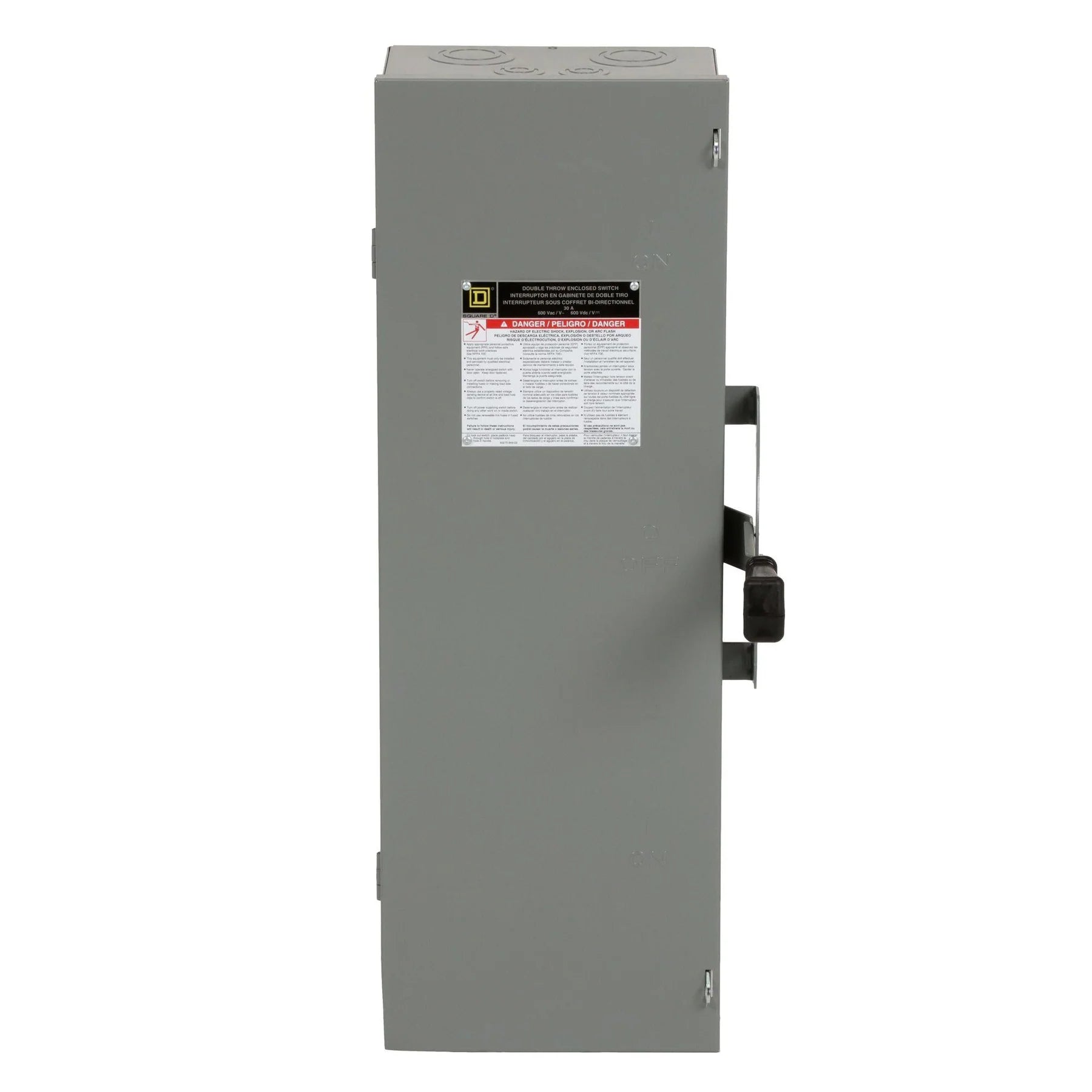

Square D DTU363RB Safety Switch – 3 Pole – 100A – 600VAC/VDC – Double Throw – Non-Fusible – NEMA 3R

In stock
SKU: DTU363RB GTIN/UPC: 785901308775
$3,478.53
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D DTU363RB is a Series F double-throw safety switch designed for dependable power source transfer and isolation in industrial and commercial electrical systems. Manufactured by Schneider Electric under the Square D brand, it is engineered for 3-phase, 3-pole applications requiring reliable switching between two power sources such as utility and generator feeds.

This unit is built with a weather-resistant NEMA 3R enclosure, making it suitable for outdoor installations where protection against rain and environmental exposure is required. Its non-fusible design simplifies maintenance while maintaining strong interrupting capability for high-energy electrical systems.

The DTU363RB is commonly used in backup power systems and critical load applications where safe transfer switching is required without interrupting downstream equipment operation.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: DTU363RB
  • Series: F Series
  • Type: Double Throw Safety Switch
  • Sub-Category: Disconnect Switch
  • Configuration: 3 Pole, 3 Phase
  • Amperage Rating: 100A
  • Voltage Rating: 600VAC/VDC
  • Switch Style: Non-Fusible
  • Action Type: Double Throw
  • Interrupting Rating: 200kA @ 600V
  • Mounting Type: Surface (typical for DTU F-Series)
  • NEMA Rating: 3R (Outdoor weather-resistant enclosure)
  • Number of Wires: 3

Applications

  • Outdoor generator transfer systems
  • Industrial power distribution
  • Commercial backup power switching
  • Utility-to-load transfer applications
  • HVAC and facility power control systems
  • Critical infrastructure power isolation

Construction Features

  • Weather-resistant NEMA 3R enclosure for outdoor use
  • Double-throw mechanism for source transfer
  • Heavy-duty switching performance for industrial loads
  • Non-fusible design for simplified operation and maintenance
  • High fault withstand capability (200kA @ 600V)
  • Built for reliability in utility and backup power systems

Certifications & Approvals

  • UL Listed
  • Designed to meet industrial electrical safety standards
  • Authentic Square D / Schneider Electric product
