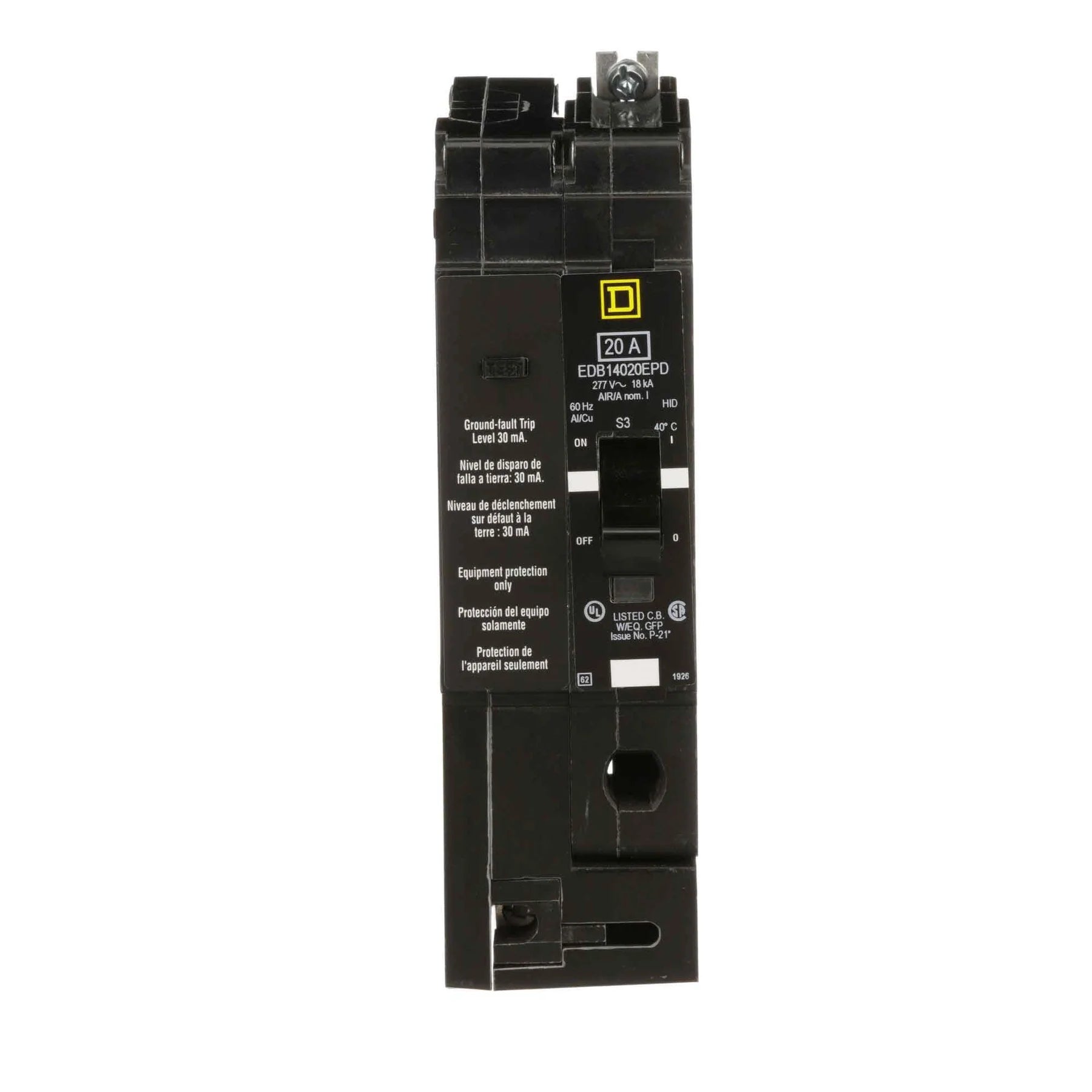

Square D EDB14020EPD Bolt-On Circuit Breaker – 1 Pole – 20A – 277VAC – EDB Series – Equipment Protection Device – Thermal Magnetic

In stock
SKU: EDB14020EPD GTIN/UPC: 785901425045
$691.20
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D EDB14020EPD is an EDB Series molded case circuit breaker from Schneider Electric, designed for dependable branch circuit protection in commercial and institutional electrical systems. Built for compatibility with Square D NF panelboards, it provides reliable overload and short-circuit protection in lighting, HVAC, and general distribution applications.

This 1-pole, bolt-on breaker features a thermal-magnetic trip unit with LI (Long-Time and Instantaneous) protection. It is equipped with an equipment protection device (EPD), enhancing protection performance in applications requiring more sensitive coordination and fault response characteristics.

Designed for 277V commercial systems, this breaker is suitable for lighting and building electrical loads where consistent protection and easy installation are required.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: EDB14020EPD
  • Series: EDB Series
  • Type: Molded Case Circuit Breaker
  • Configuration: 1 Pole
  • Amperage Rating: 20A
  • Voltage Rating: 277VAC
  • Mounting Type: Bolt-On
  • Trip Technology: Thermal Magnetic
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Interrupting Rating: 18kA @ 480V
  • Special Feature: Equipment Protection Device (EPD)
  • Temperature Rating: 40°C
  • Weight: 2 lb

Applications

  • Commercial lighting circuits
  • HVAC and motor protection
  • Panelboard branch circuit protection (Square D NF panels)
  • Building electrical distribution systems
  • Equipment requiring enhanced protection coordination
  • Institutional and office electrical installations

Construction Feature

  • Bolt-on mounting for secure panel integration
  • Thermal-magnetic protection for overload and short-circuit faults
  • Equipment Protection Device (EPD) for enhanced protection characteristics
  • Compact EDB frame design for panel efficiency
  • LI trip function for standard protection response
  • Designed for commercial 277V systems

Certifications & Approvals

  • UL Listed
  • CSA Certified
  • Designed for Square D NF panelboards
  • Authentic Schneider Electric / Square D product
  • Type Thermal Magnetic
