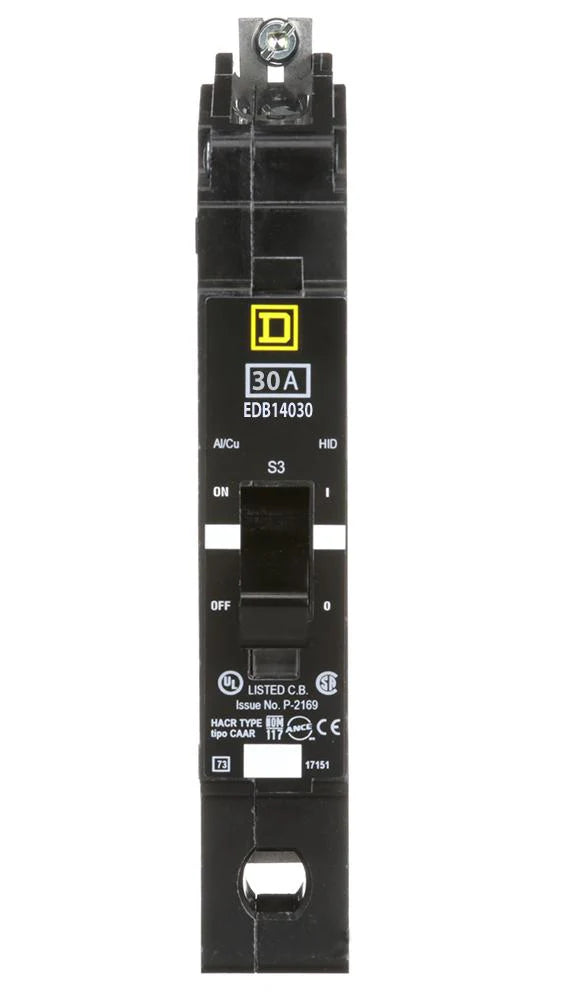

Square D EDB14030 Bolt-On Circuit Breaker – 1 Pole – 30A – 277VAC – EDB Series – Thermal Magnetic – HID/HACR Rated

The Square D EDB14030 is an E-Frame molded case circuit breaker from Schneider Electric designed for dependable branch circuit protection in Square D NF panelboards. It is commonly used in commercial lighting, HVAC, and general power distribution systems where HID and HACR ratings are required.

This 1-pole, bolt-on breaker provides secure panelboard installation and reliable performance in demanding electrical environments. It features a thermal-magnetic trip unit with LI (Long-Time and Instantaneous) protection, ensuring effective response to overload and short-circuit faults.

Built for 277V commercial applications, the EDB14030 is suitable for lighting circuits and building electrical loads requiring consistent protection and easy installation.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: EDB14030
• Series: EDB Series (E-Frame)
• Type: Molded Case Circuit Breaker
• Configuration: 1 Pole
• Amperage Rating: 30A
• Voltage Rating: 277VAC
• Mounting Type: Bolt-On
• Trip Technology: Thermal Magnetic
• Trip Functions: LI (Long-Time and Instantaneous)
• Interrupting Ratings:
  • 18kA @ 277V
  • 25kA @ 240V
  • 25kA @ 120V
• Application Ratings: HID Rated / HACR Rated
• Electrical Connection: Aluminum lugs
• Temperature Rating: 40°C
• Product Destination: Square D NF Panelboard

Applications

• Commercial lighting systems (including HID lighting)
• HVAC and motor load protection
• Panelboard branch circuit protection
• Office and institutional buildings
• General commercial electrical distribution
• Equipment requiring HACR-rated protection

Construction Features

• Bolt-on mounting for secure panelboard installation
• Thermal-magnetic protection for overload and short-circuit faults
• Trip indicator for quick fault identification
• HID and HACR rated for commercial load compatibility
• Aluminum lug terminals for reliable wiring connections
• Compact E-Frame design for efficient panel use

Certifications & Approvals

• UL Listed (UL 489)
• CSA Certified
• HACR Rated
• HID Rated
• Designed for Square D NF panelboards
• Authentic Schneider Electric / Square D product
