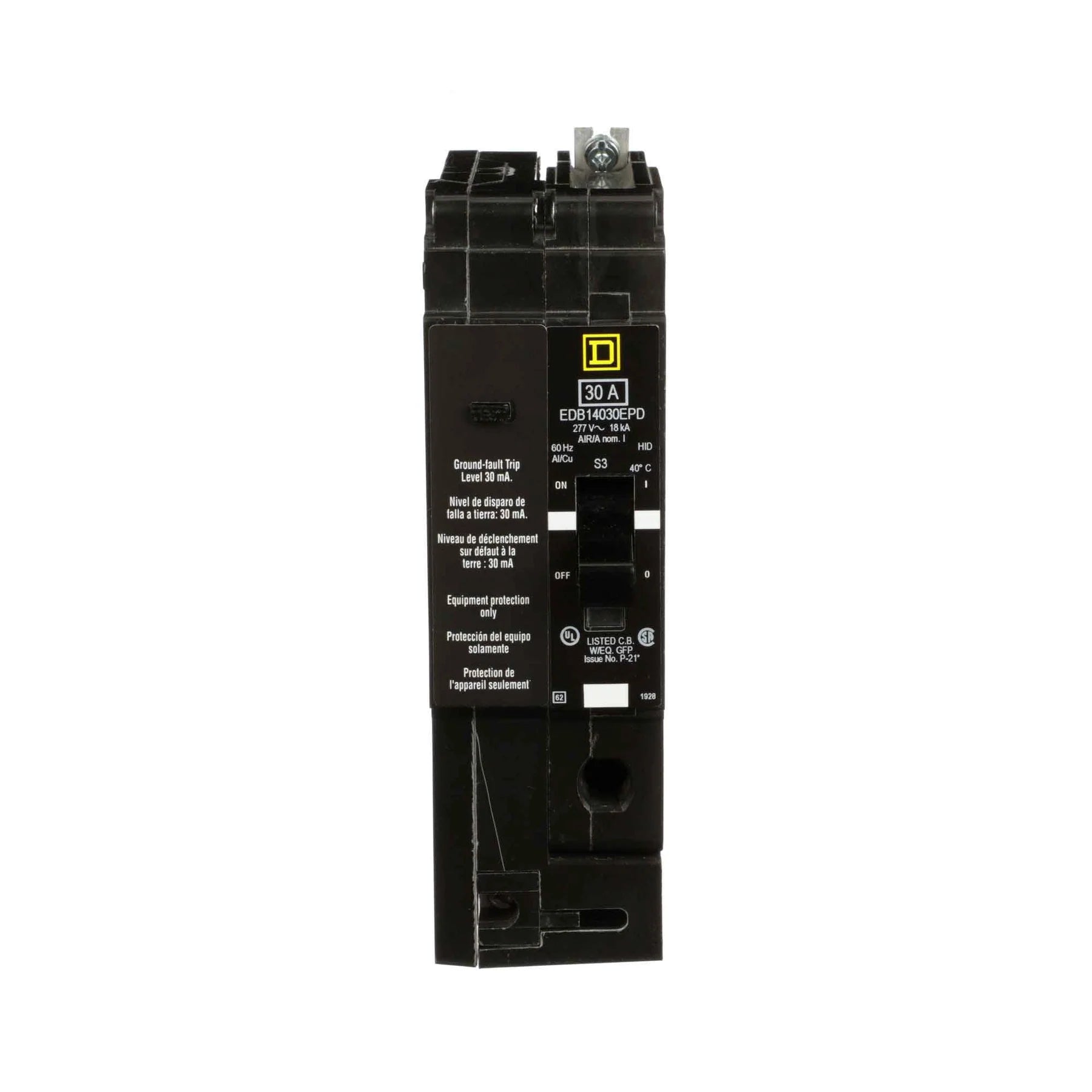

Square D EDB14030EPD Molded Case Circuit Breaker – 1 Pole – 30A – 277VAC – Bolt-On – E-Frame – Thermal Magnetic – Equipment Protection Device

The Square D EDB14030EPD, manufactured by Schneider Electric, is a bolt-on molded case circuit breaker designed for use in Square D NF panelboards. It belongs to the EDB Series E-Frame platform and provides reliable thermal-magnetic protection for commercial and industrial electrical systems.

This 1-pole, 30A breaker is rated for 277VAC applications and is equipped with an Equipment Protection Device (EPD) feature, enhancing system safety in sensitive load environments. The breaker uses a fixed thermal and magnetic trip mechanism to deliver dependable short-circuit and overload protection.

Designed for easy installation, the bolt-on connection ensures secure mounting in compatible NF panelboards. Its compact construction, high interrupting capacity, and HACR/HID ratings make it suitable for lighting, HVAC, and general power distribution circuits.

Specifications:

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: EDB14030EPD
• Series: EDB
• Type: E-Frame
• Category: Molded Case Circuit Breaker
• Configuration: 1 Pole
• Phase: 1 Phase
• Current Rating: 30A
• Voltage Rating: 277VAC
• Mounting Style: Bolt-On
• Trip Technology: Thermal Magnetic
• Trip Function: Long-Time and Instantaneous (LI)
• Protection Type: Overload and Short-Circuit
• Equipment Protection Device: Yes (EPD)
• Interrupting Capacity: 18kA @ 480V
• Application Rating: HID-Rated / HACR-Rated
• Calibration Temperature: 40°C

Construction Features:

• Bolt-on design for Square D NF panelboards
• Compact E-Frame construction
• Thermal-magnetic fixed trip system
• Built-in Equipment Protection Device (EPD)
• Visual trip indication (where applicable in EDB platform)
• Aluminum lug connection system
• Designed for consistent performance in commercial electrical systems
• Factory-calibrated for standard operating conditions

Applications:

• Commercial lighting systems
• HVAC and air conditioning circuits
• Industrial control panels
• Motor and compressor protection
• Building electrical distribution
• Square D NF panelboard installations

Standards & Approvals:

• UL Listed (UL 489)
• CSA Certified
• HACR Rated
• HID Rated
• NEMA / ANSI compliant design
• Suitable for industrial and commercial use
