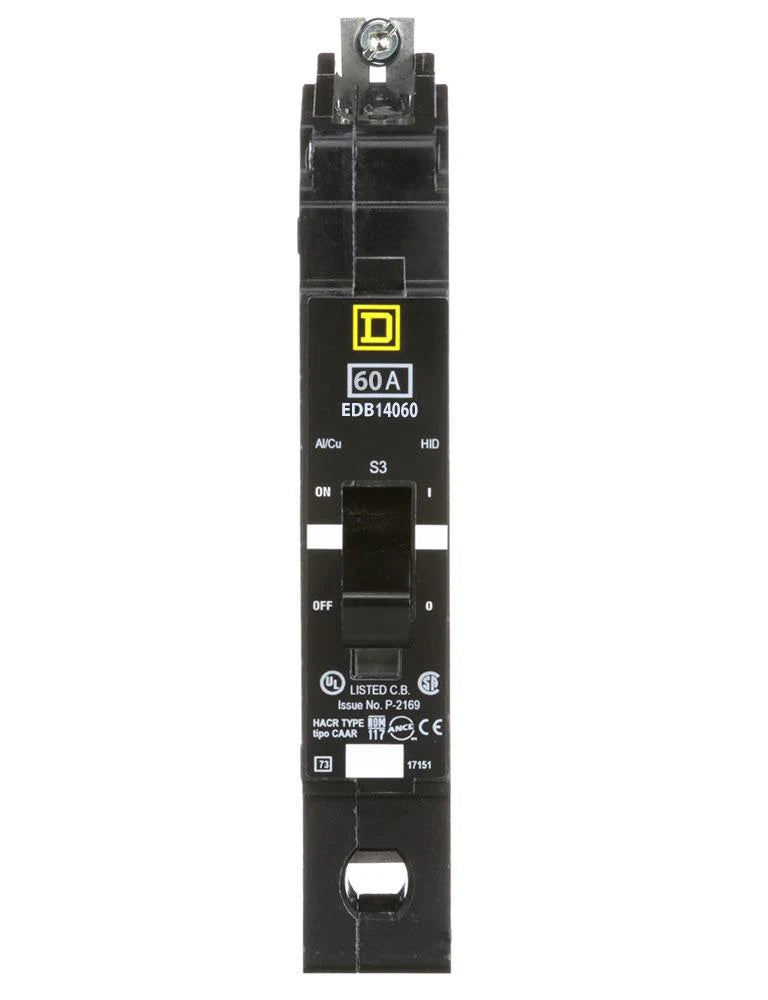

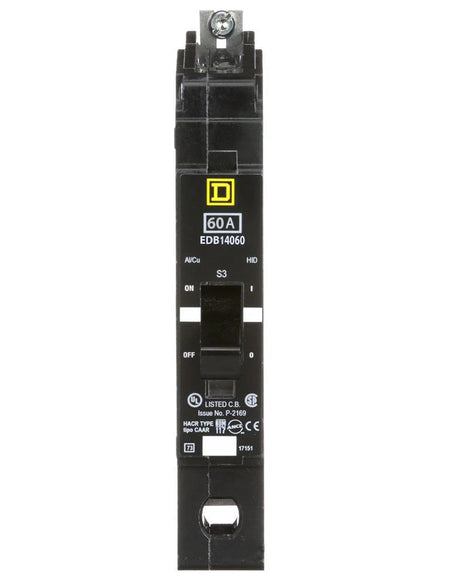

Square D EDB14060 Bolt-On Circuit Breaker – 1 Pole – 60A – 277V AC – Thermal Magnetic – E-Frame

In stock
SKU: EDB14060 GTIN/UPC: 785901326434
$78.40
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D EDB14060 is a bolt-on molded case circuit breaker designed for reliable circuit protection in Schneider Electric NF Panelboard applications. This 1-pole, 60A breaker provides dependable overload and short-circuit protection using a thermal-magnetic trip mechanism, ensuring safe operation in commercial and industrial electrical systems.

Engineered for ease of installation, the EDB14060 features a bolt-on mounting design that integrates directly into NF Panelboards. It is CSA approved, UL listed, HID-rated, and HACR-rated, making it suitable for lighting, HVAC, and general-purpose branch circuit applications.

The breaker includes a trip indicator for quick fault identification and uses aluminum lug terminals compatible with both copper and aluminum conductors. Its E-Frame construction ensures a compact footprint while maintaining strong interrupting performance for demanding environments.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: EDB14060
  • Series: EDB Series
  • Type: Molded Case / E-Frame
  • Configuration: 1 Pole
  • Phase: 1 Phase
  • Current Rating: 60A
  • Voltage Rating: 277V AC
  • Mounting Style: Bolt-On
  • Connection Type: Aluminum Lugs
  • Protection Type: Thermal Magnetic
  • Trip Function: LI – Long-Time and Instantaneous
  • Application: NF Panelboard

Interrupting Ratings

  • 18kA @ 277V
  • 25kA @ 240V
  • 25kA @ 120V

Dimensions

  • Height: 5.66 in
  • Width: 0.98 in
  • Depth: 4.05 in
  • Weight: 4 lbs

Electrical Ratings

  • Trip Unit Rating: 875A
  • Holding Current: 270A
  • Maximum Operating Voltage: 277V AC
  • AWG Range:
    • Copper: AWG 14–6
    • Aluminum: AWG 12–6

Construction Features

  • E-Frame molded case compact design
  • Bolt-on mounting for NF Panelboard compatibility
  • Thermal-magnetic protection for overload and short-circuit faults
  • Integrated trip indicator for fast fault detection
  • Aluminum lug terminals for copper and aluminum conductors
  • Calibrated for 40°C operating conditions
  • HID-rated and HACR-rated for lighting and HVAC applications

Applications

  • Commercial electrical distribution systems
  • NF Panelboard installations
  • Lighting circuits (HID-rated)
  • HVAC and refrigeration systems (HACR-rated)
  • General-purpose branch circuit protection
  • Industrial and OEM electrical panels

Certifications & Approvals

  • CSA Approved
  • UL Listed (HID-rated)
  • HACR Rated
  • Authentic Square D / Schneider Electric product
  • Designed for NF Panelboard systems
  • Type Thermal Magnetic
  • Vendor Square D
  • Brand Square D
