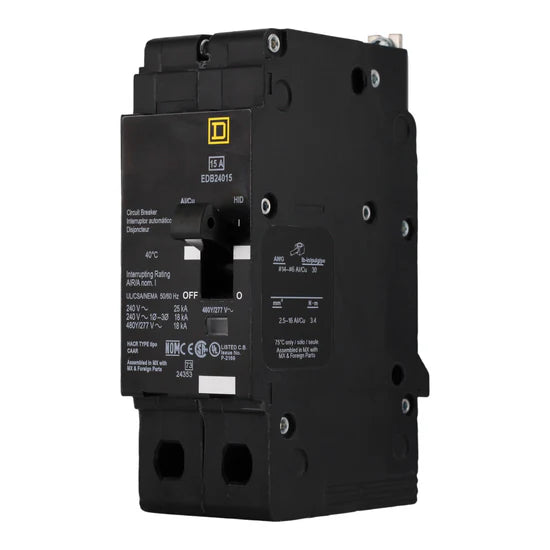

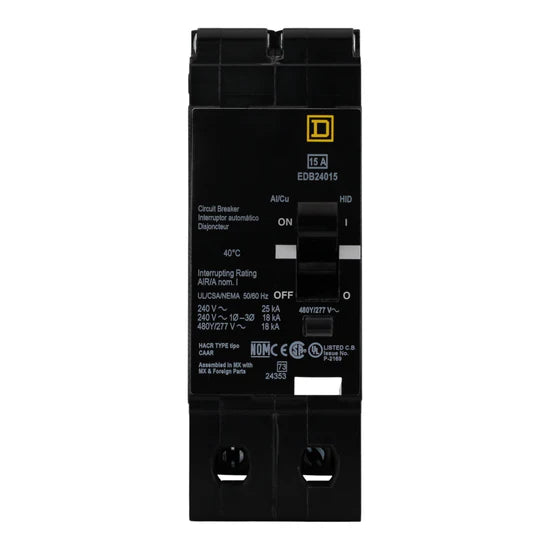

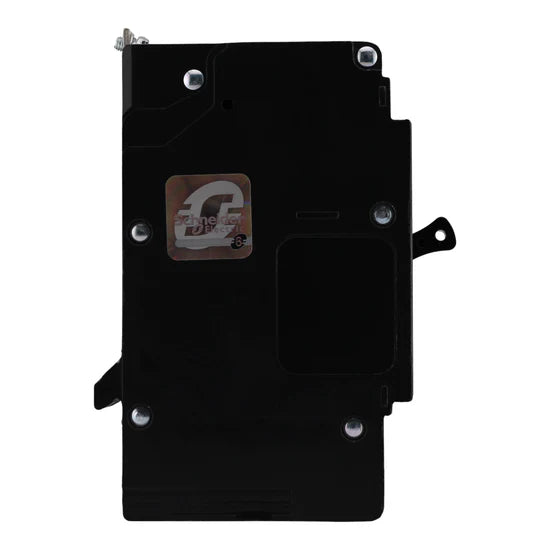

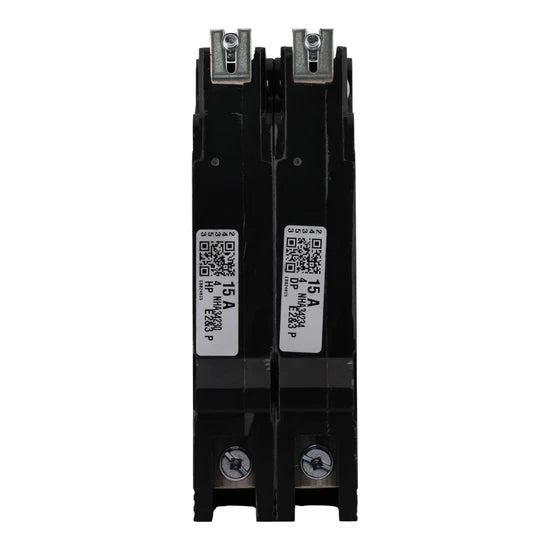

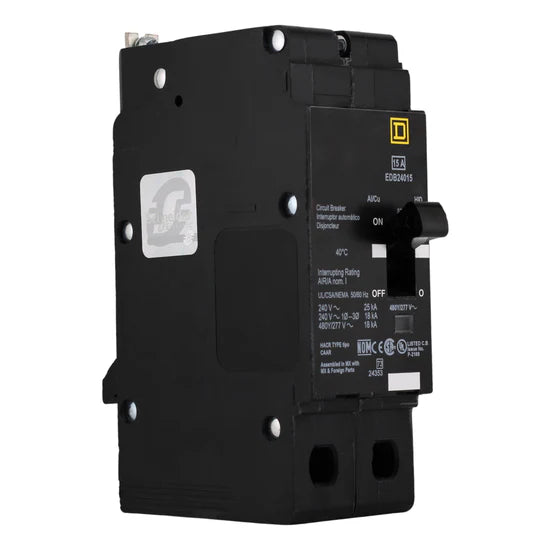

Square D EDB24015 15A 2P Thermal-Magnetic Circuit Breaker – Bolt-On – 480Y/277V

The Square D EDB24015 is a high-performance 15A 2-pole thermal-magnetic circuit breaker designed for dependable protection in commercial power distribution systems. Built for Square D NF and NFM panelboards, this E-Frame breaker features bolt-on mounting for secure installation and a Visi-Trip indicator that provides quick visual identification of trip conditions. With strong interrupting capacity and HACR/HID ratings, it delivers reliable overload and short-circuit protection for demanding 480Y/277V lighting and equipment applications.

Electrical Ratings:

• Amperage: 15 Amps
• Poles: 2-Pole
• Voltage Rating: 480Y/277 Volts AC
• Interrupt Rating:
• 25 kA @ 240 VAC
• 18 kA @ 480Y/277 VAC
• 25 kA @ 120/240 VAC

Key Features:

• Thermal-magnetic trip technology
• Bolt-on mounting for secure panelboard installation
• Visi-Trip red flag trip indicator
• HACR and HID rated
• Designed for NF and NFM panelboards

Technical Specifications:

• Breaker Type: Thermal-Magnetic
• Mounting Mode: Bolt-On

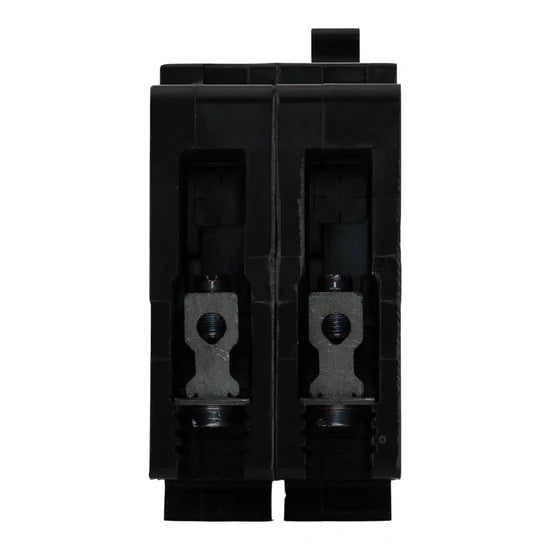

• Terminal Type: Cu/Al lugs
• Wire Size:
• Copper: AWG 14–6
• Aluminum: AWG 12–6
• Tightening Torque: 30.09 lb-in

Dimensions & Weight:

• • Height: 5.66 in
  • Width: 1.96 in
  • Depth: 4.05 in
  • Weight: 3.0 lbs

Certifications:

• UL Listed
• cULus
• HACR Rated
• HID Rated

Product Details:

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: E-Frame
• Model Number: EDB24015

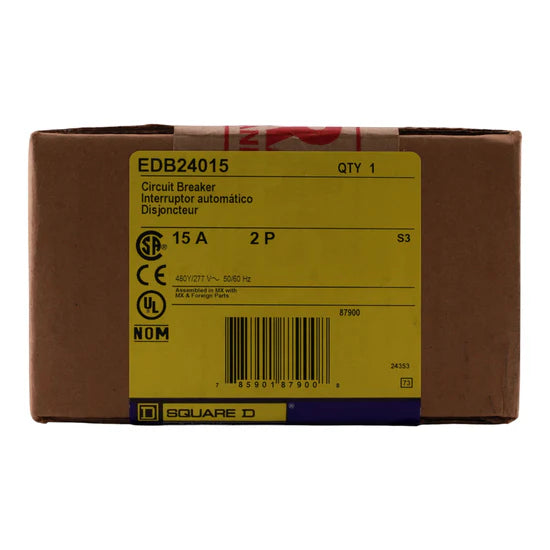

• UPC: 785901879008
