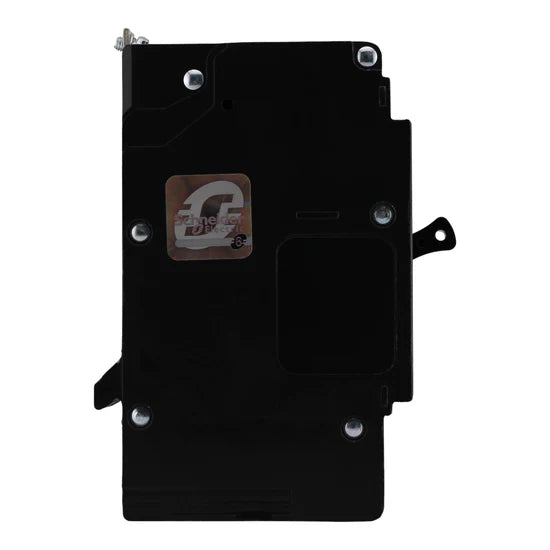

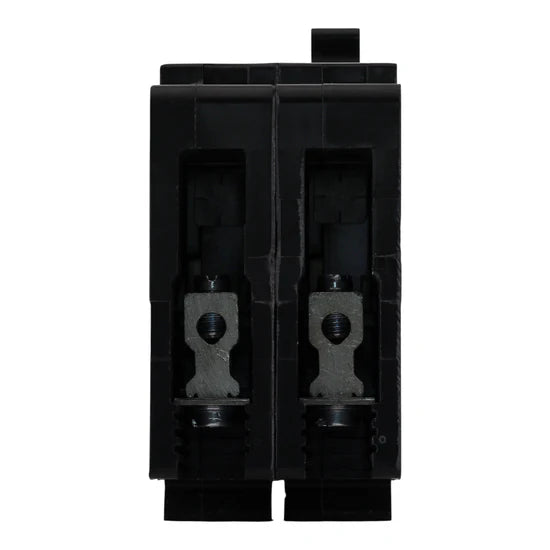

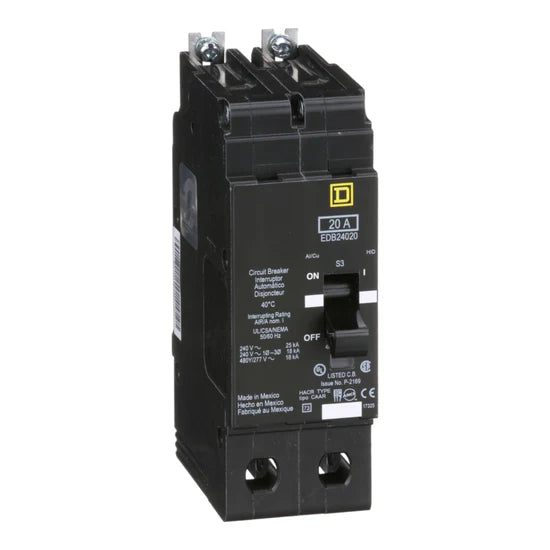

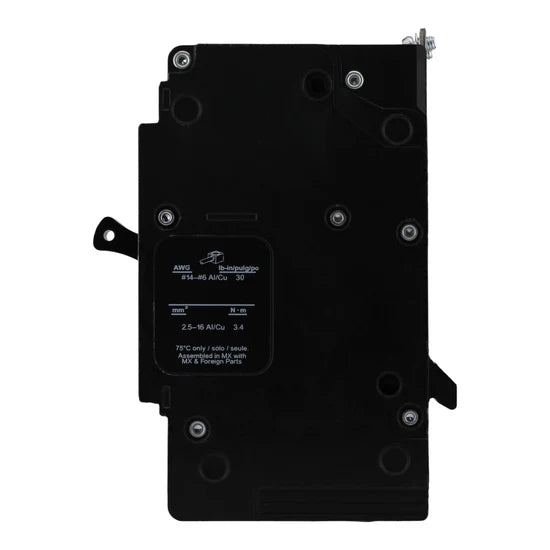

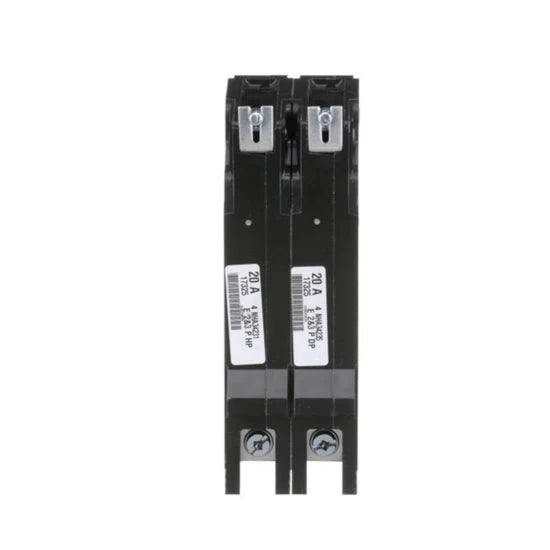

Square D EDB24020 20A 2P Thermal-Magnetic Circuit Breaker – Bolt-On – 480Y/277V

The Square D EDB24020 is a dependable 20A 2-pole thermal-magnetic circuit breaker engineered for commercial power distribution systems. Designed for Square D NF panelboards, this E-Frame breaker features secure bolt-on mounting and a robust 25 kA interrupt rating for reliable overload and short-circuit protection. Its HACR rating and durable construction make it well-suited for demanding 480Y/277V lighting and equipment applications.

Electrical Ratings:

• Amperage: 20 Amps
• Poles: 2-Pole
• Voltage Rating: 480Y/277 Volts AC
• Interrupt Rating: 25 kAIC

Key Features:

• Thermal-magnetic trip performance
• Bolt-on mounting for secure installation
• HACR rated for HVAC applications
• Designed for Square D NF panelboards
• Reliable commercial-grade protection

Technical Specifications:

• Breaker Type: Thermal-Magnetic
• Mounting Mode: Bolt-On
• Terminal Type: Aluminum/Copper lugs
• Wire Size:
• Copper: AWG 14–6
• Aluminum: AWG 12–6
• Tightening Torque: 30.09 lb-in

Dimensions & Weight:

• • Height: 5.66 in
  • Width: 1.96 in
  • Depth: 4.05 in
  • Weight: 2.65 lbs

Certifications:

• UL Listed
• CSA Certified
• HACR Rated

Product Details:

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: E-Frame
• Model Number: EDB24020
• UPC: 785901879015
