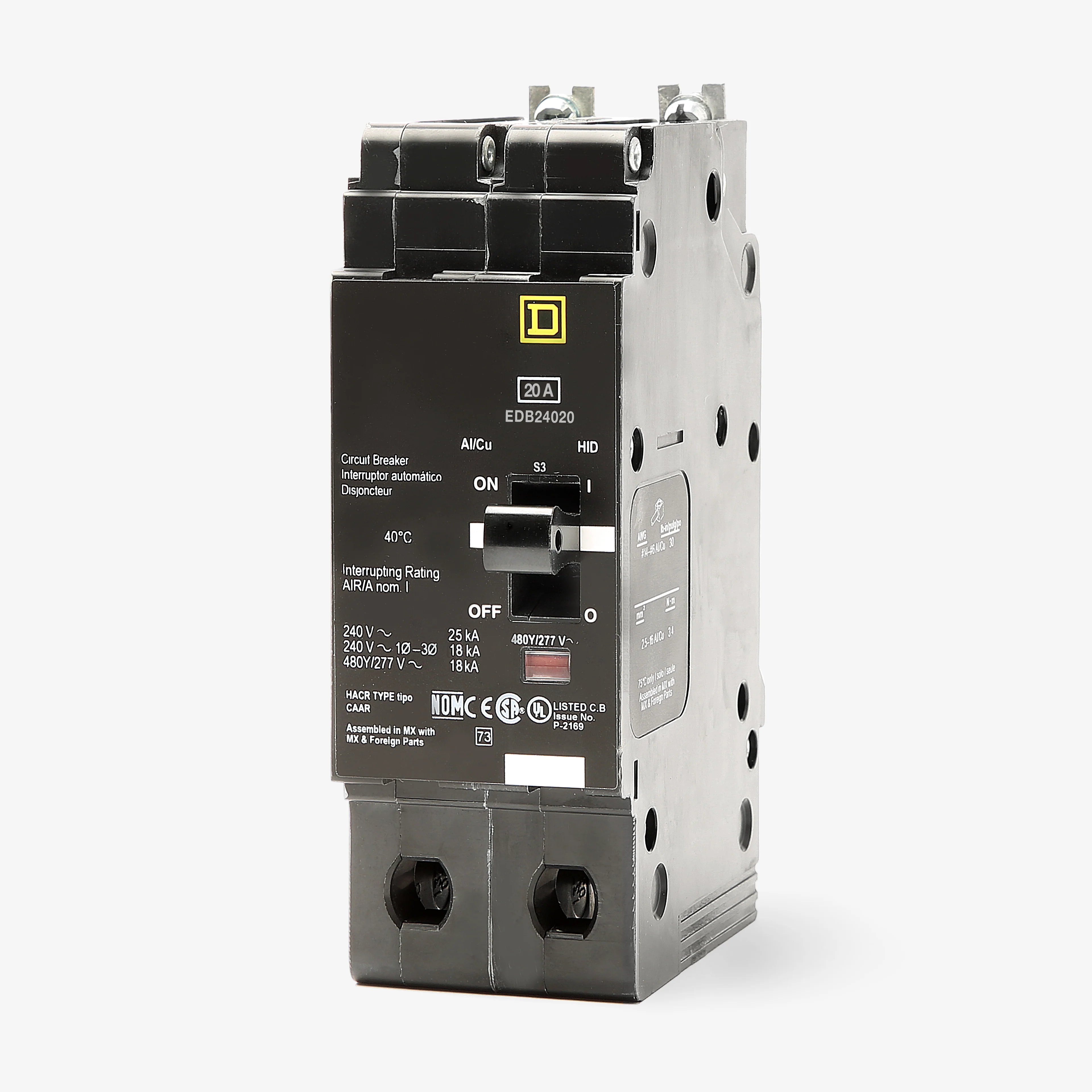

Square D EDB24020SA E-Frame Molded Case Circuit Breaker – 2 Pole – 20A – 480Y/277VAC – Bolt-On – Thermal Magnetic – Shunt Trip

The Square D EDB24020SA is a molded case circuit breaker designed for industrial and commercial power distribution systems. Manufactured by Schneider Electric, this 2-pole, 20A E-Frame breaker is intended for use in NF panelboards and provides reliable thermal-magnetic protection against overloads and short-circuit conditions.

This unit features a bolt-on mounting design for secure installation into NF panelboard assemblies, ensuring stable electrical connection and simplified integration. A factory-installed shunt trip allows for remote tripping functionality, while the built-in Visi-Trip indicator provides clear visual confirmation of fault conditions for faster diagnostics and maintenance response.

With fixed thermal and magnetic trip characteristics, the EDB24020SA is engineered for consistent protection performance in demanding environments. Its compact E-Frame construction and high interrupting capacity make it suitable for modern electrical distribution systems requiring both reliability and space efficiency.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: EDB24020SA
• Series: EDB Series
• Type: Molded Case Circuit Breaker (E-Frame)
• Configuration: 2 Pole
• Phase: 1 Phase
• Current Rating: 20A
• Voltage Rating: 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC
• Mounting Style: Bolt-On
• Connection Type: Load-side lugs
• Protection Type: Thermal Magnetic
• Trip Function: LI – Long-Time and Instantaneous
• Trip Adjustability: Fixed
• Application: NF Panelboard

Interrupting Ratings

• 25kA @ 120VAC
• 25kA @ 240VAC
• 18kA @ 277VAC
• 18kA @ 480Y/277VAC
• 25kA @ 120/240VAC

Electrical & Mechanical Features

• Factory-installed shunt trip for remote operation
• Visi-Trip indicator for quick fault identification
• Bolt-on NF panelboard mounting system
• Fixed thermal and magnetic trip settings
• Non-interchangeable trip design
• Aluminum/copper wire compatibility (Cu/Al rated lugs)
• HACR and HID rated construction
• Designed for 40°C operating environments

Wire Range

• Copper: AWG 14–6
• Aluminum: AWG 12–6
• Maximum wire size: AWG 6

Accessories

• Auxiliary switch option
• Alarm switch option
• Padlock attachment capability
• Factory-installed shunt trip
• Load-side lugs included

Standards & Approvals

• UL 489 Listed
• CSA C22.2 No. 5
• NEMA AB 1
• CSA, cULus, NOM Approved
• HACR Rated
• HID Rated
• Authentic Square D / Schneider Electric product
• Designed for NF Panelboard systems
