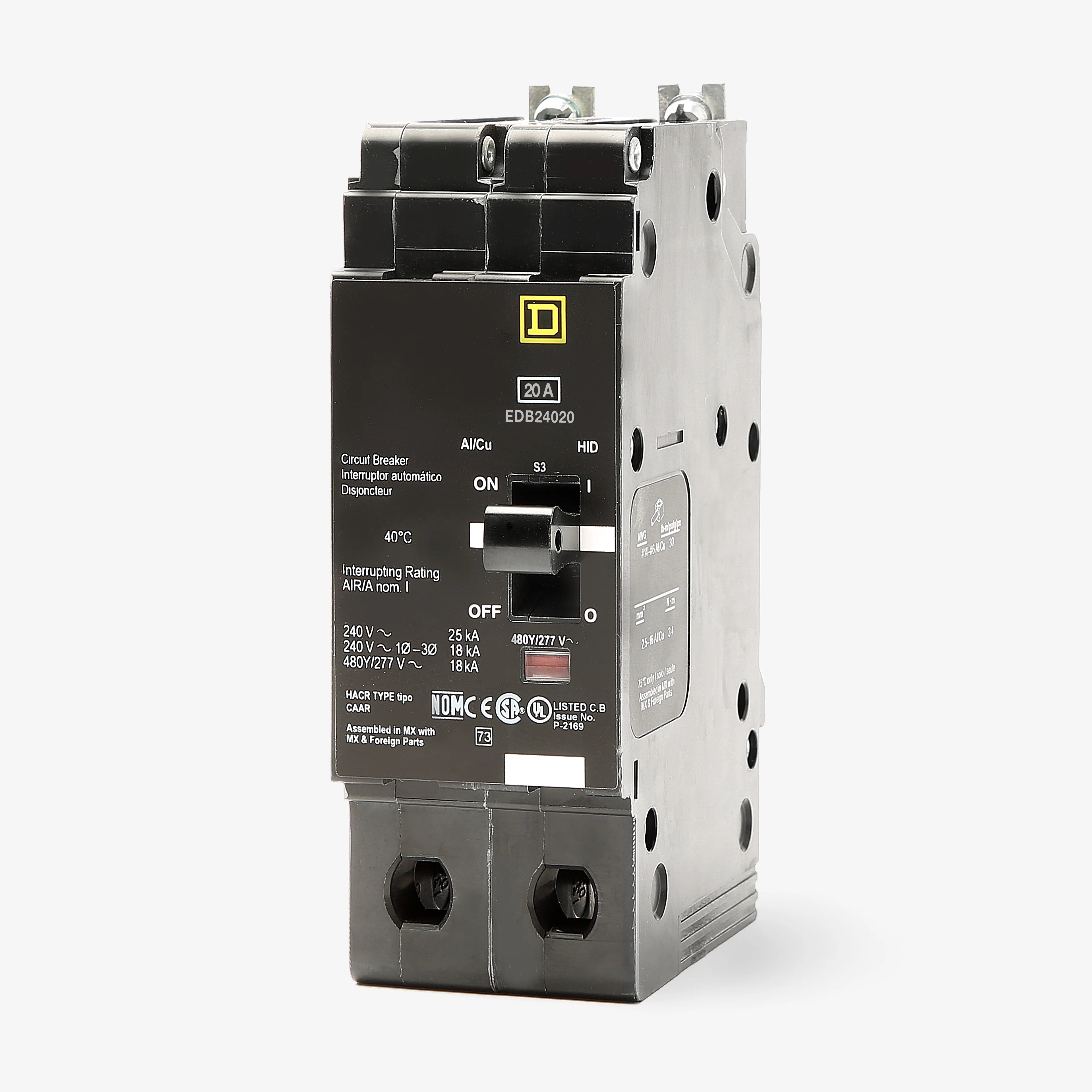

Square D EDB24030SA E-Frame Molded Case Circuit Breaker – 2 Pole – 30A – 480Y/277VAC – Bolt-On – Thermal Magnetic – 120VAC Shunt Trip

In stock
SKU: EDB24030SA GTIN/UPC: 785901545743
$774.90
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D EDB24030SA is a molded case circuit breaker designed for applications requiring reliable protection with remote control capability. Manufactured by Schneider Electric, this 2-pole, 30A E-Frame breaker is intended for installation in NF panelboards and provides dependable thermal-magnetic protection for overload and short-circuit conditions.

This model features a factory-installed 120VAC shunt trip, allowing for remote tripping of the breaker in control or safety systems. Its bolt-on mounting design ensures secure integration into NF panelboards, while the Visi-Trip indicator provides fast visual identification of a tripped condition for improved maintenance response and troubleshooting efficiency.

Built with fixed thermal and magnetic protection characteristics, the EDB24030SA delivers consistent performance in commercial and industrial electrical distribution systems. Its compact E-Frame design supports space-efficient panel layouts without compromising interrupting capability.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: EDB24030SA
  • Series: EDB Series
  • Type: Molded Case Circuit Breaker (E-Frame)
  • Configuration: 2 Pole
  • Phase: 1 Phase
  • Current Rating: 30A
  • Voltage Rating: 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC
  • Mounting Style: Bolt-On
  • Connection Type: Lug Terminal
  • Protection Type: Thermal Magnetic
  • Trip Function: LI – Long-Time and Instantaneous
  • Trip Adjustability: Fixed
  • Application: NF Panelboard

Interrupting Ratings

  • 25kA @ 120VAC
  • 25kA @ 240VAC
  • 18kA @ 277VAC
  • 18kA @ 480Y/277VAC
  • 25kA @ 120/240VAC

Electrical & Mechanical Features

  • Factory-installed 120VAC shunt trip for remote operation
  • Bolt-on mounting for NF panelboard compatibility
  • Visi-Trip indicator for quick fault identification
  • Fixed thermal and magnetic trip settings
  • Non-interchangeable trip design
  • Aluminum/copper lug compatibility (Cu 14–6 AWG / Al 12–6 AWG)
  • HACR and HID rated construction
  • Designed for 40°C operating environment

Wire Range

  • Copper: AWG 14–6
  • Aluminum: AWG 12–6
  • Maximum wire size: AWG 6

Accessories

  • Auxiliary switch option
  • Alarm switch option
  • Padlock attachment capability
  • Factory-installed 120VAC shunt trip
  • Standard lugs included

Standards & Approvals

  • UL 489 Listed
  • CSA C22.2 No. 5
  • NEMA AB 1
  • CSA, cULus, NOM Approved
  • HACR Rated
  • HID Rated
  • Authentic Square D / Schneider Electric product
  • Designed for NF Panelboard systems
  • Type Circuit Breakers
  • Vendor Square D
  • Brand Square D
