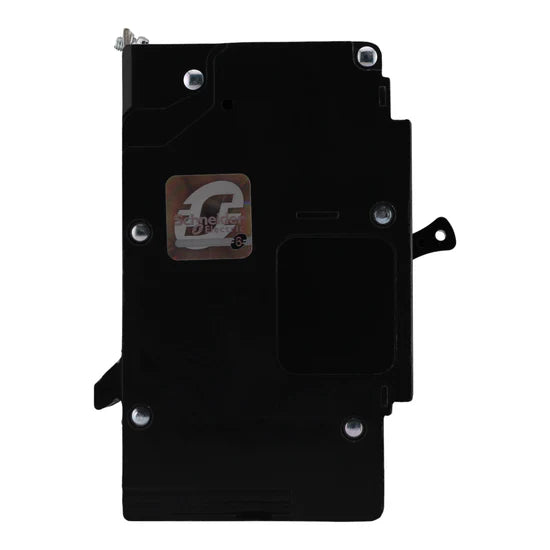

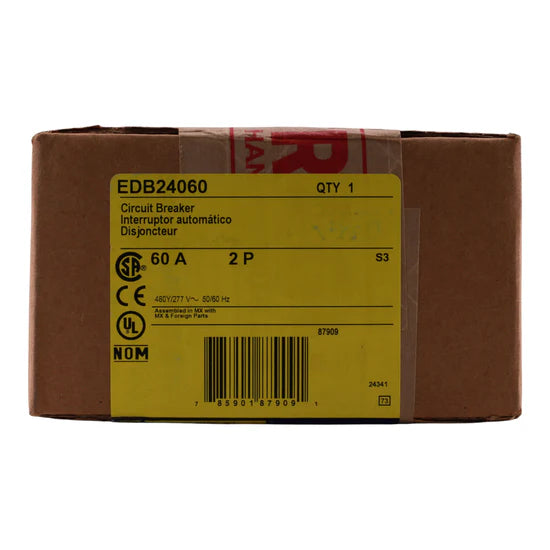

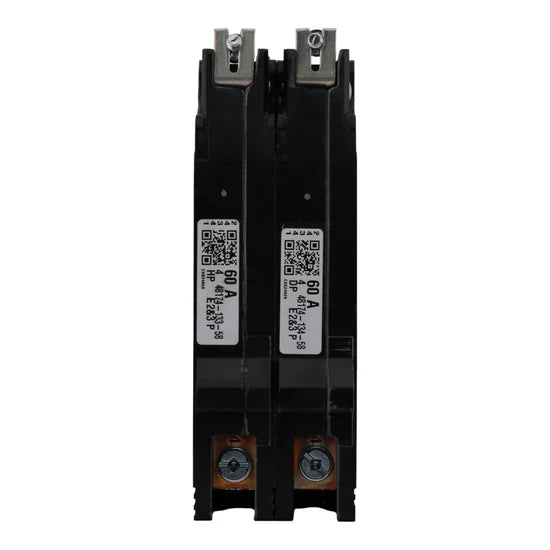

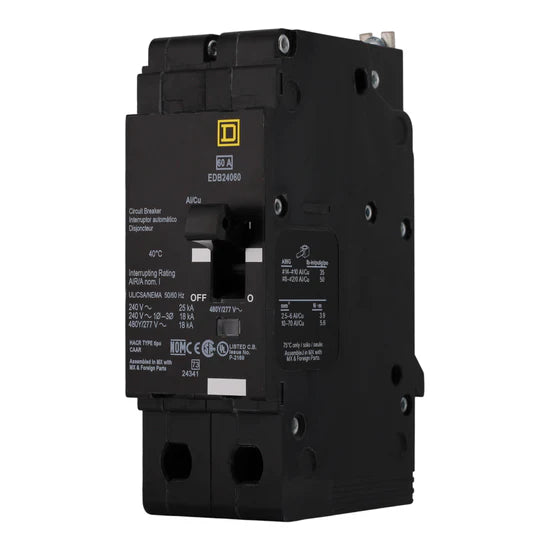

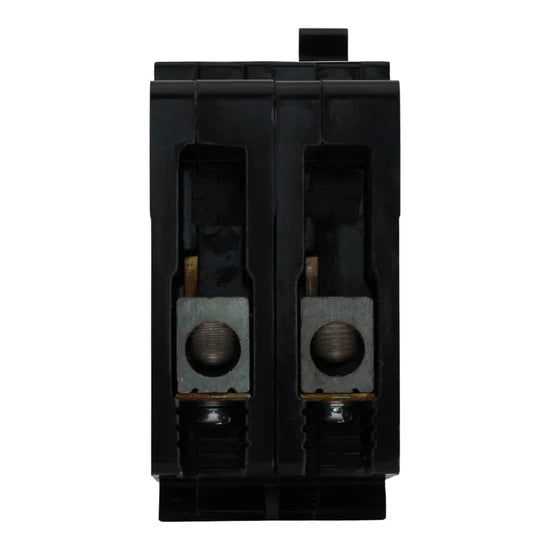

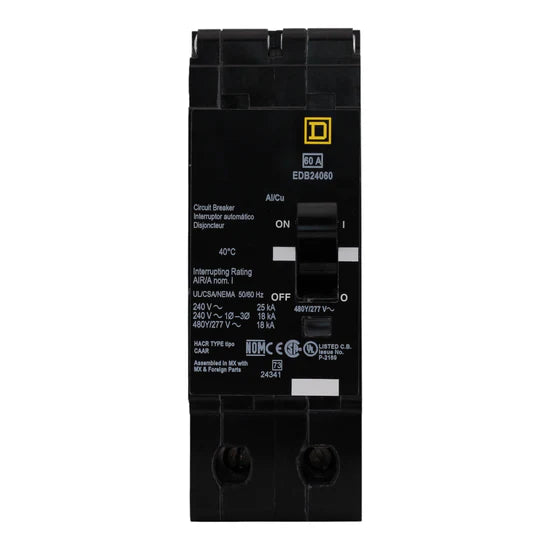

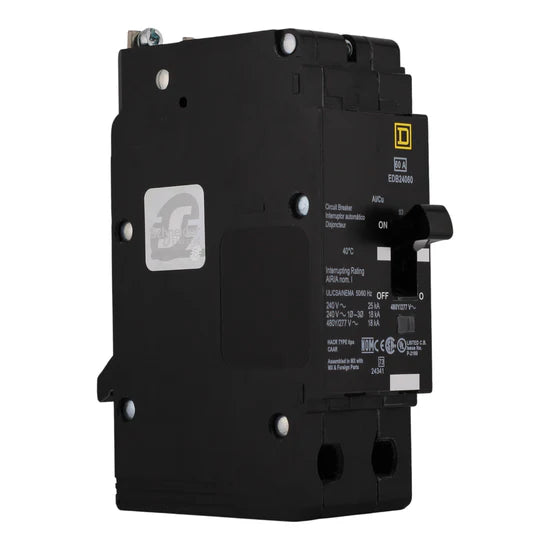

Square D EDB24060 60A 2-Pole Thermal-Magnetic – Bolt-On – 480Y/277V

The Square D EDB24060 60A 2-Pole Thermal-Magnetic – Bolt-On – 480Y/277V circuit breaker provides reliable 60 Amp, 2-pole thermal-magnetic protection for commercial and industrial 480Y/277V AC systems. Designed for Square D NF and NFM panelboards, this E-Frame breaker offers superior overload and short-circuit protection with a 25 kAIC interrupt rating at 240V and 18 kAIC at 480Y/277V. The bolt-on mounting allows for straightforward installation, and the Visi-Trip indicator enables fast fault detection. Equipped with lugs that accept copper or aluminum conductors up to 2/0 AWG, it is ideal for commercial lighting panelboards and applications requiring HACR-rated performance. Calibrated for 40°C ambient conditions, this breaker meets rigorous safety and performance standards.

Voltage and Rating

• Current Rating: 60 Amps
• Voltage Rating: 480Y/277 Volts AC
• Interrupting Capacity:
• 25 kAIC at 240V AC
• 18 kAIC at 480Y/277V AC
• Frequency: 50/60 Hz

Key Specifications

• Breaker Type: Thermal-Magnetic
• Number of Poles: 2-Pole
• Mounting Type: Bolt-On
• Product Range: E-Frame (for Square D NF and NFM panelboards)
• Application: Commercial and industrial branch circuit protection
• Special Features: Visi-Trip indicator, calibrated for 40°C ambient
• Ratings: HACR Rated

Technical Specifications

• Connection Type: Lugs (aluminum/copper)
• Wire Size:
• Copper: AWG 14…AWG 2/0
• Aluminum: AWG 12…AWG 2/0
• Terminal Tightening Torque:
• 34.5 lbf-in (AWG 14–10)
• 49.6 lbf-in (AWG 8–2/0)
• Operating Mechanism: Thermal-magnetic
• Interrupt Rating: 25 kAIC (240V), 18 kAIC (480Y/277V)
• Certifications: UL Listed, cULus, HACR Rated

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: EDB24060
• UPC: 785901879091

Dimensions

• • Height: 5.66 in
  • Width: 3.92 in
  • Depth: 4.05 in
  • Weight: 4.0 lbs
