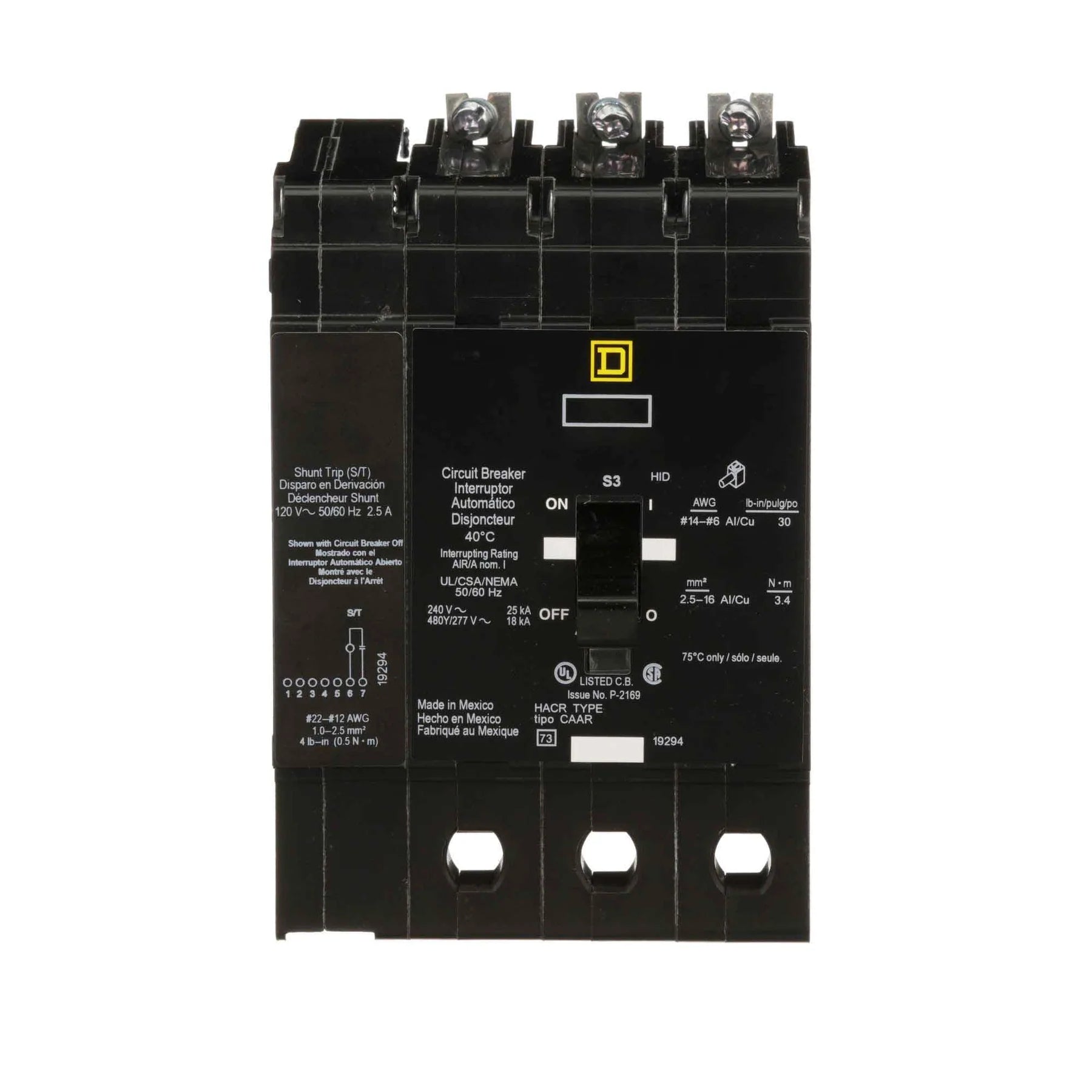

Square D EDB34025SA E-Frame Molded Case Circuit Breaker – 3 Pole – 25A – Bolt-On – Thermal Magnetic – 120VAC Shunt Trip

In stock
SKU: EDB34025SA GTIN/UPC: 785901546849
$932.85
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D EDB34025SA is an E-Frame molded case circuit breaker designed for commercial and industrial power distribution applications. Manufactured by Schneider Electric, this 3-pole, 25A breaker provides dependable thermal-magnetic protection against overload and short-circuit conditions in three-phase electrical systems.

This model features a factory-installed 120VAC shunt trip, enabling remote tripping functionality for emergency shutdown, automation, and control applications. Designed for installation in NF panelboards, the breaker utilizes a secure bolt-on mounting configuration and occupies four pole spaces due to the integrated shunt trip accessory.

The EDB34025SA incorporates Visi-Trip technology for rapid visual identification of tripped circuits, helping reduce troubleshooting time and improve maintenance efficiency. With interrupting ratings up to 25kA and a rugged molded case design, it delivers reliable performance in demanding electrical distribution environments.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: EDB34025SA
  • Series: EDB Series
  • Type: Molded Case Circuit Breaker (E-Frame)
  • Configuration: 3 Pole
  • Phase: 3 Phase
  • Current Rating: 25A
  • Voltage Rating: 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC
  • Mounting Style: Bolt-On
  • Connection Type: Lug Terminal
  • Protection Type: Thermal Magnetic
  • Trip Function: LI – Long-Time and Instantaneous
  • Trip Adjustability: Fixed
  • Application: NF Panelboard

Interrupting Ratings

  • 25kA @ 120VAC
  • 25kA @ 240VAC
  • 18kA @ 277VAC
  • 18kA @ 480Y/277VAC
  • 25kA @ 120/240VAC

Electrical & Mechanical Features

  • Factory-installed 120VAC shunt trip for remote operation
  • Occupies four pole spaces in NF panelboards
  • Thermal-magnetic overload and short-circuit protection
  • Fixed trip characteristics
  • Visi-Trip visual trip indicator
  • Non-interchangeable trip unit design
  • HACR and HID rated construction
  • Bolt-on mounting configuration
  • Rated for 40°C operating environments

Wire Range

  • Copper: AWG 14–6
  • Aluminum: AWG 12–6
  • Maximum wire size: AWG 6
  • Minimum wire size: AWG 14 Copper / AWG 12 Aluminum

Accessories

  • Auxiliary switch option
  • Alarm switch option
  • Padlock attachment option
  • Factory-installed 120VAC shunt trip

Standards & Approvals

  • UL 489 Listed
  • CSA C22.2 No. 5
  • IEC 60947-2 Compliant
  • NEMA AB 1
  • CSA Approved
  • cULus Listed
  • NOM Approved
  • UL Listed
  • HACR Rated
  • HID Rated
  • Authentic Square D / Schneider Electric product
  • Designed for NF Panelboard systems
  • Type Circuit Breakers
  • Vendor Square D
  • Brand Square D
