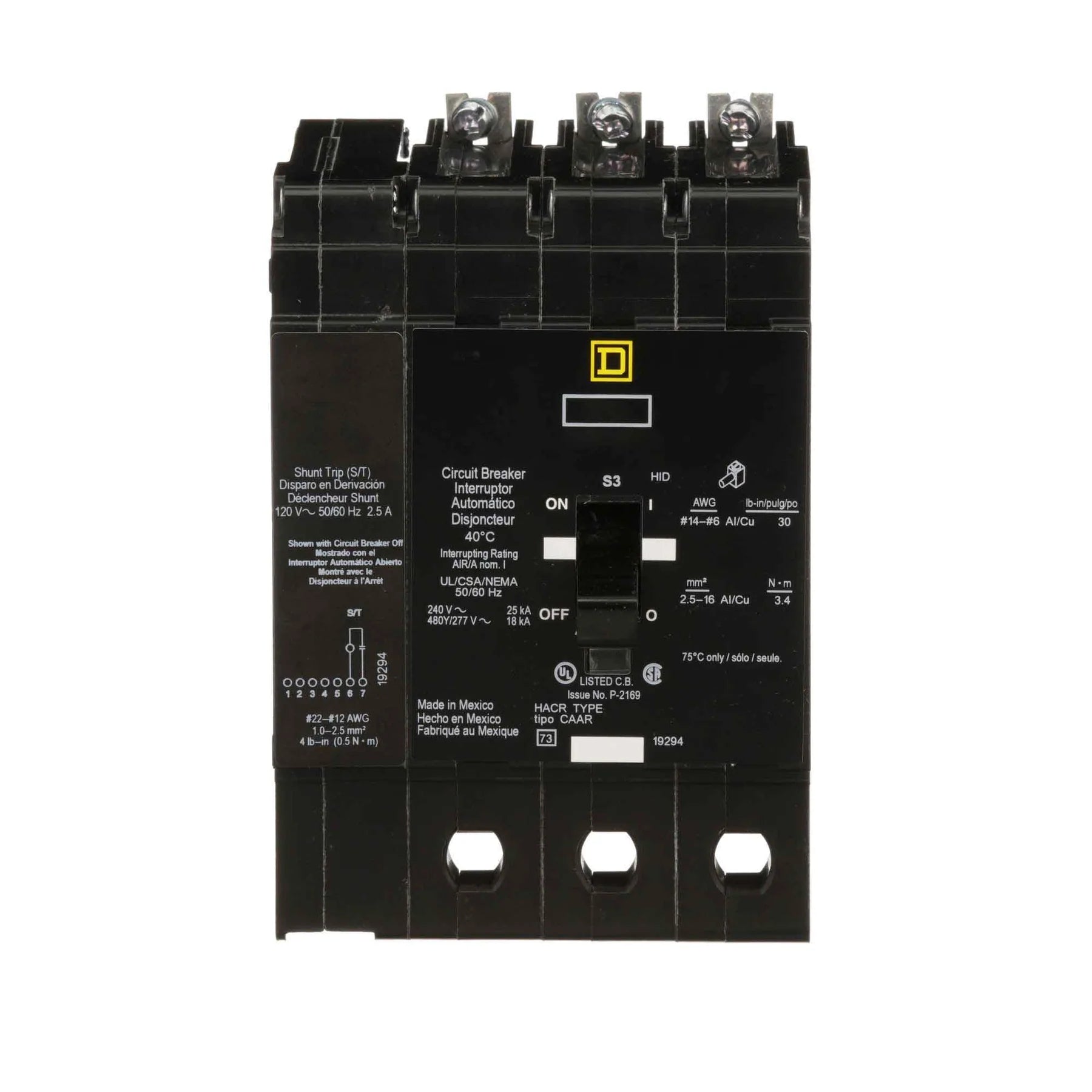

Square D EDB34030SA E-Frame Molded Case Circuit Breaker – 3 Pole – 30A – 277/480V – Bolt-On – Thermal Magnetic – 120V Shunt Trip

In stock
SKU: EDB34030SA GTIN/UPC: 785901326427
$932.85
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D EDB34030SA is a molded case circuit breaker designed for commercial and industrial power distribution systems requiring dependable circuit protection and remote tripping capability. Manufactured by Schneider Electric, this EDB Series breaker features a 3-pole, 30A configuration for three-phase electrical applications.

Equipped with a factory-installed 120V shunt trip, the EDB34030SA enables remote operation and emergency shutdown functionality, making it suitable for automated control and safety systems. The breaker utilizes a secure bolt-on mounting design for installation in compatible panelboards and distribution equipment.

Its thermal-magnetic trip unit provides reliable protection against overloads and short circuits through fixed long-time and instantaneous trip functions. With an interrupting capacity of 18kA at 480V and a compact E-Frame construction, this breaker offers dependable performance in demanding commercial and industrial environments.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: EDB34030SA
  • Series: EDB Series
  • Type: Molded Case Circuit Breaker (E-Frame)
  • Configuration: 3 Pole
  • Phase: 3 Phase
  • Current Rating: 30A
  • Voltage Rating: 277/480V AC
  • Connection Type: Bolt-On
  • Protection Type: Thermal Magnetic
  • Trip Function: LI – Long-Time and Instantaneous
  • Operating Temperature Rating: 40°C

Interrupting Rating

  • 18kA @ 480V AC

Dimensions

  • Height: 5.66 in
  • Width: 3.92 in
  • Depth: 4.05 in
  • Weight: 4 lbs

Electrical & Mechanical Features

  • Factory-installed 120V shunt trip
  • Bolt-on mounting configuration
  • Thermal-magnetic overload and short-circuit protection
  • Fixed long-time and instantaneous trip functions
  • Standard interrupting capacity design
  • Compact E-Frame molded case construction
  • Suitable for remote tripping and emergency shutdown applications
  • Designed for three-phase power distribution systems

Applications

  • Commercial electrical distribution systems
  • Industrial power distribution equipment
  • Motor control and branch circuit protection
  • Remote tripping and control systems
  • Emergency shutdown systems
  • Panelboards and switchboard installations

Standards & Approvals

  • CSA Approved
  • Thermal-Magnetic Protection Design
  • Standard Interrupting Capacity Rated
  • Authentic Square D / Schneider Electric product
  • Manufactured to EDB Series specifications
