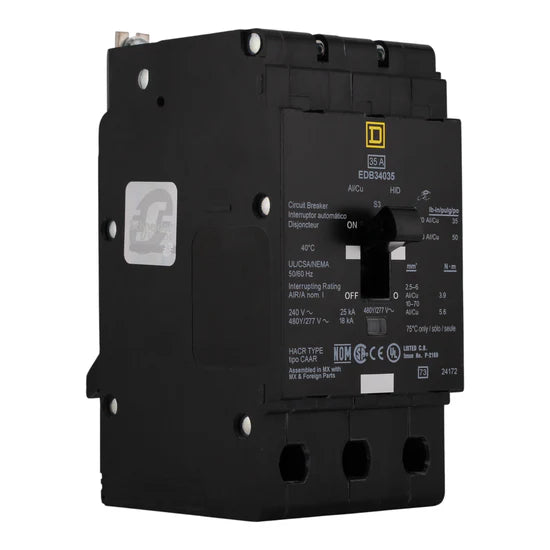

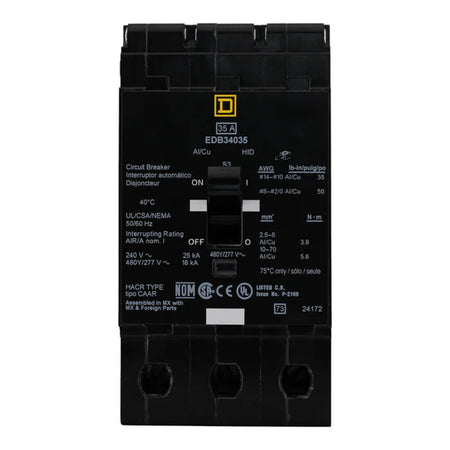

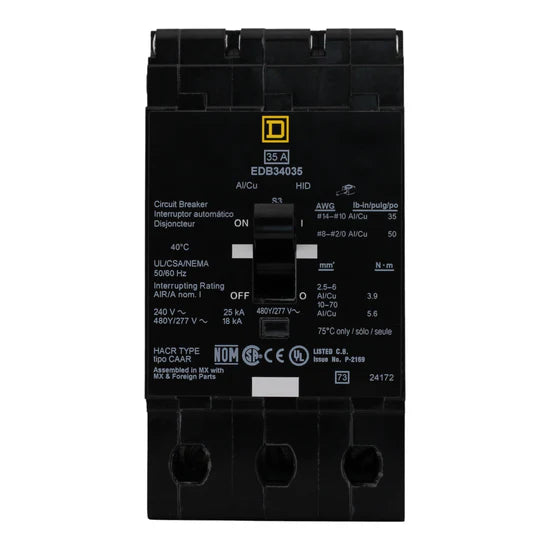

Square D EDB34035 35A 3-Pole Thermal-Magnetic – Bolt-On – 480Y/277V

The Square D EDB34035 35A 3-Pole Thermal-Magnetic – Bolt-On – 480Y/277V circuit breaker delivers reliable 35 Amp, 3-pole thermal-magnetic protection for commercial and industrial 480Y/277V AC systems. Designed for Square D NF panelboards and equipment, this E-Frame breaker ensures robust overload and short-circuit protection with a 25 kAIC interrupt rating. The bolt-on mounting simplifies installation, and the Visi-Trip indicator allows for fast fault detection. With lugs supporting copper or aluminum conductors up to AWG 2/0, it is ideal for lighting, commercial, and industrial applications requiring HACR- and HID-rated performance.

Voltage and Rating

• Current Rating: 35 Amps
• Voltage Rating: 480Y/277 Volts AC
• Interrupting Capacity: 25 kAIC
• Frequency: 50/60 Hz

Key Specifications

• Breaker Type: Thermal-Magnetic
• Number of Poles: 3-Pole
• Mounting Type: Bolt-On
• Product Range: E-Frame (for Square D NF panelboards and equipment)
• Application: Commercial and industrial branch circuit protection
• Special Features: Visi-Trip indicator
• Ratings: UL Listed, cULus, HACR Rated, HID Rated

Technical Specifications

• Connection Type: Lugs
• Wire Size:
• Copper: AWG 14–2/0
• Aluminum: AWG 12–2/0
• Terminal Tightening Torque: 34.5–49.6 lb-in
• Operating Mechanism: Thermal-magnetic
• Interrupt Rating: 25 kAIC
• Certifications: UL Listed, cULus, HACR Rated, HID Rated

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: EDB34035
• UPC: 785901875277

Dimensions

• • Height: 5.66 in
  • Width: 2.94 in
  • Depth: 4.05 in
  • Weight: 4.0 lbs
