Square D EDB34040 40A 3-Pole Thermal-Magnetic – Bolt-On – 480Y/277V

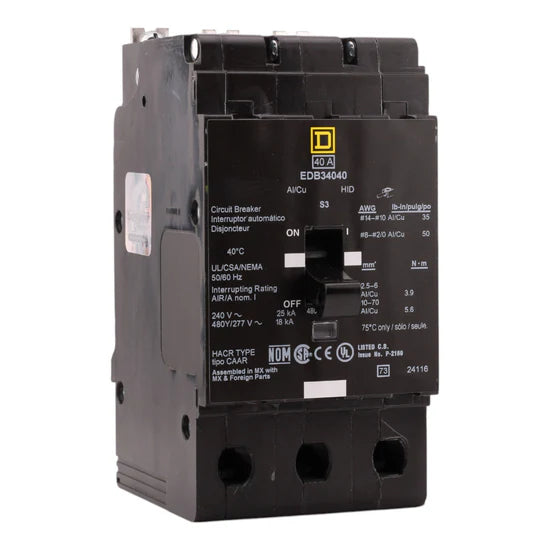

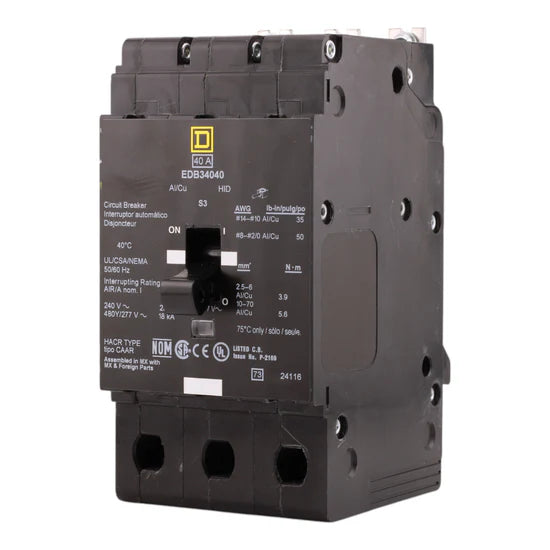

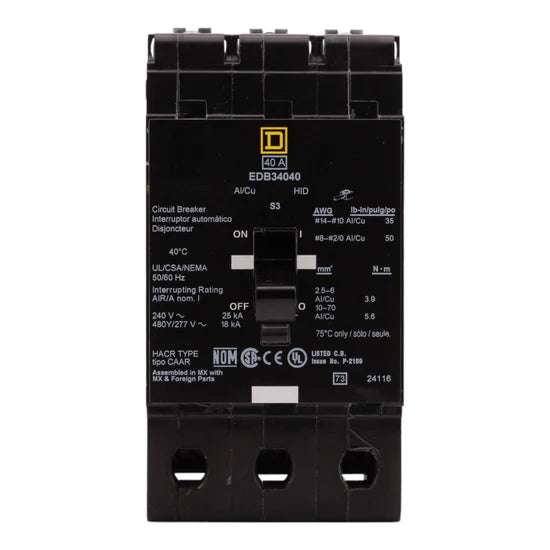

The Square D EDB34040 by Schneider Electric is a 40 Amp, 3-pole E-Frame miniature circuit breaker designed for NF panelboards. With a 25kA interrupt rating at 480Y/277V AC, bolt-on mounting, and HACR rating, it provides reliable overload and short-circuit protection. Its thermal-magnetic trip technology ensures precise response under fault conditions.

Voltage and Rating:

• Current Rating: 40 Amps
• Voltage Rating: 480Y/277 V AC
• Interrupting Capacity: 18kA at 480Y/277V AC, 25kA at 240V AC

Key Specifications:

• Breaker Type: Thermal-Magnetic Miniature Circuit Breaker (E-Frame)
• Number of Poles: 3-Pole
• Mounting Mode: Bolt-on
• Trip Unit Rating: 1800 A
• Holding Current: 630 A
• Protection Type: Overload and Short-circuit
• Trip Unit Technology: Thermal-Magnetic
• Breaking Capacity Code: D
• Application: NF Panelboard protection

Electrical Connections:

• Wire Size (Aluminum): AWG 12–2/0
• Wire Size (Copper): AWG 14–2/0
• Electrical Connection: Aluminum lugs
• Connection Terminals: Aluminum lugs
• Tightening Torque:
• 34.5 lbf.in (AWG 14–10)
• 49.6 lbf.in (AWG 8–2/0)

Physical Specifications:

• • Dimensions (H × W × D): 5.66 × 2.94 × 4.05 in (143.76 × 74.68 × 102.87 mm)
  • Weight: 4 lbs (1.8 kg)
  • Number of Spaces Required: 3

Product Data

• • Manufacturer: Schneider Electric
    Brand: Square D
    Model Number: EDB34040
    UPC/GTIN: 785901875284
    Range: 125 A Frame EDB-EGB-EJB Series
    Product Type: Miniature Circuit Breaker
    Module Type: E-Frame
    Device Short Name: EDB
    Certifications: HACR Rated
    Product Destination: NF Panelboard
