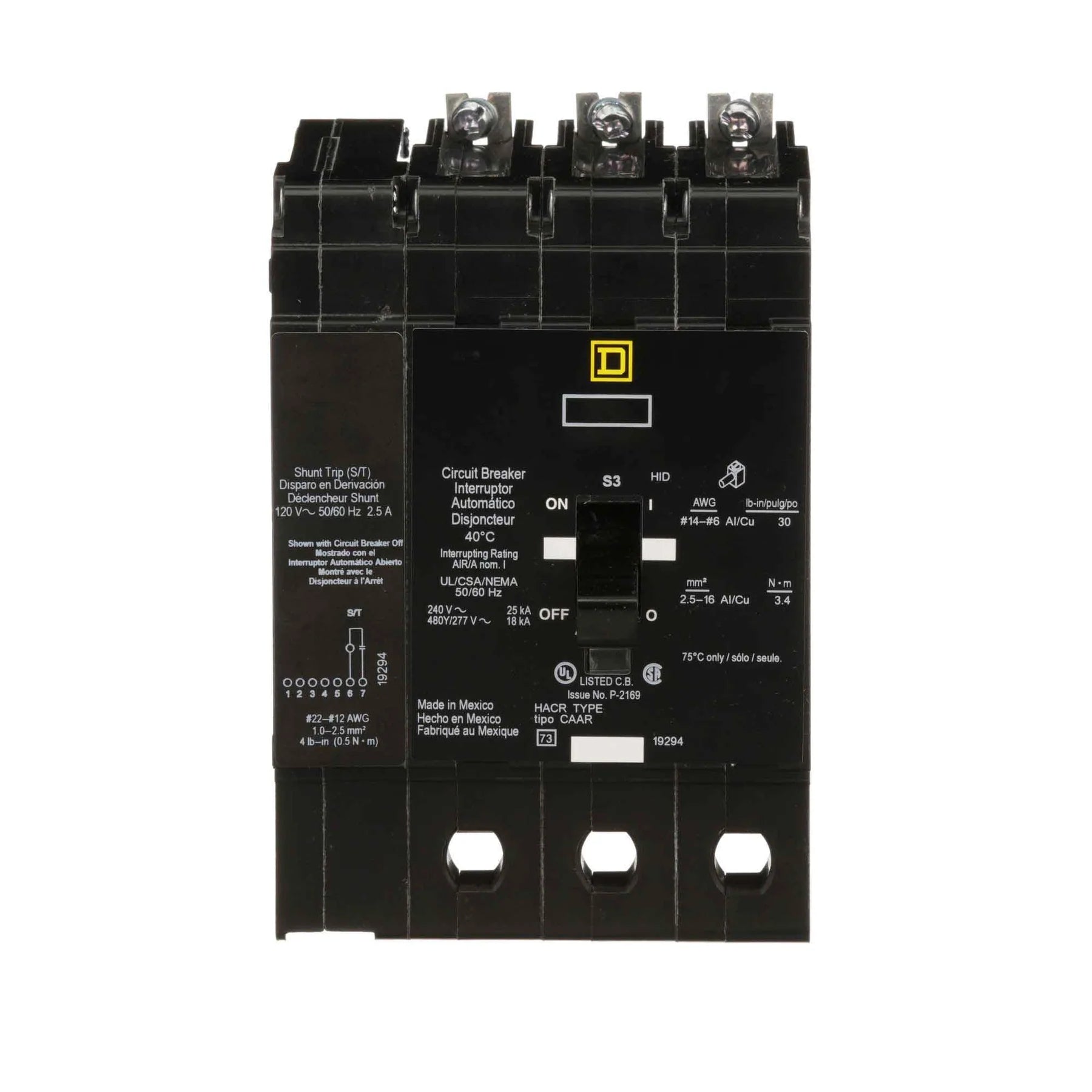

Square D EDB34045SA E-Frame Molded Case Circuit Breaker – 3 Pole – 45A – Bolt-On – Thermal Magnetic – 120VAC Shunt Trip

The Square D EDB34045SA is an E-Frame molded case circuit breaker designed for commercial and industrial power distribution systems requiring remote tripping capability. Manufactured by Schneider Electric, this 3-pole, 45A breaker combines dependable thermal-magnetic protection with an integrated 120VAC shunt trip for enhanced control and safety applications.

The factory-installed shunt trip allows remote circuit disconnection for emergency shutdown systems, automation controls, and facility safety applications. Designed for use in NF panelboards, the breaker mounts securely using a bolt-on connection and occupies four pole spaces due to the integrated accessory assembly.

With interrupting ratings up to 25kA and a standard 18kA rating at 480Y/277VAC, the EDB34045SA provides reliable protection against overload and short-circuit conditions. A built-in visual trip indicator enables quick identification of fault conditions, helping reduce maintenance and troubleshooting time.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: EDB34045SA
• Series: EDB Series
• Type: Molded Case Circuit Breaker (E-Frame)
• Configuration: 3 Pole
• Phase: 3 Phase
• Current Rating: 45A
• Voltage Rating: 120VAC, 240VAC, 277VAC, 480Y/277VAC, 120/240VAC
• Mounting Style: Bolt-On
• Connection Type: Lug Terminal
• Protection Type: Thermal Magnetic
• Trip Function: LI – Long-Time and Instantaneous
• Trip Adjustability: Fixed
• Application: NF Panelboard

Interrupting Ratings

• 25kA @ 120VAC
• 25kA @ 240VAC
• 18kA @ 277VAC
• 18kA @ 480Y/277VAC
• 25kA @ 120/240VAC

Electrical & Mechanical Features

• Factory-installed 120VAC shunt trip
• Occupies four pole spaces in NF panelboards
• Thermal-magnetic overload and short-circuit protection
• Fixed trip characteristics
• Visual trip indicator for fault identification
• Bolt-on mounting configuration
• HACR and HID rated construction
• Designed for 40°C operating environments
• Suitable for remote tripping and emergency shutdown systems

Wire Range

• Copper: AWG 14–2/0
• Aluminum: AWG 12–2/0
• Maximum wire size: 2/0 AWG
• Minimum wire size: AWG 14 Copper / AWG 12 Aluminum

Accessories

• Factory-installed 120VAC shunt trip
• Auxiliary switch option
• Alarm switch option
• Padlock attachment option

Standards & Approvals

• UL 489 Listed
• CSA C22.2 No. 5
• IEC 60947-2 Compliant
• NEMA AB 1
• CSA Approved
• cULus Listed
• NOM Approved
• UL Listed
• HACR Rated
• HID Rated
• Authentic Square D / Schneider Electric product
• Designed for NF Panelboard systems
