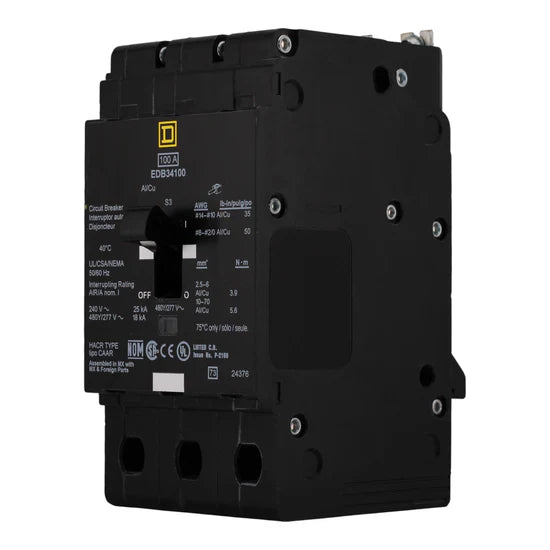

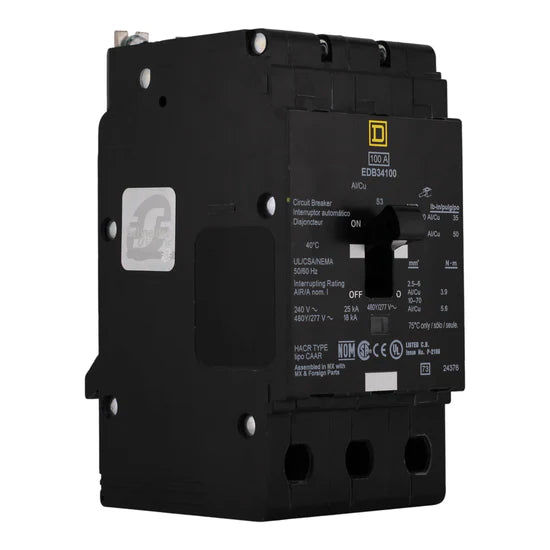

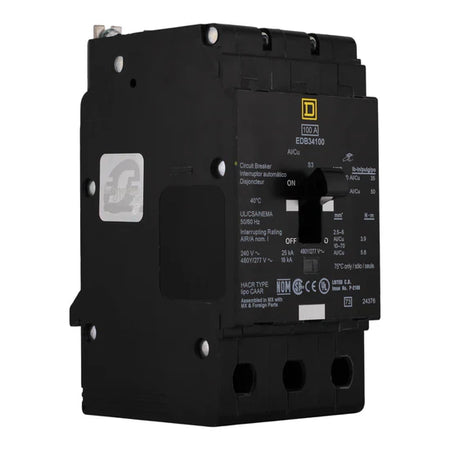

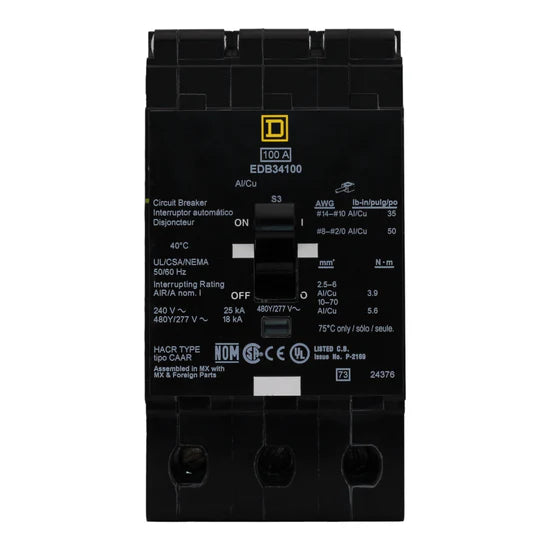

Square D EDB34100 100A 3-Pole Thermal-Magnetic – Bolt-On – 480Y/277V

The Square D EDB34100 100A 3-Pole Thermal-Magnetic – Bolt-On – 480Y/277V circuit breaker provides dependable 100 Amp, 3-pole thermal-magnetic protection for commercial and industrial 480Y/277V AC systems. Designed for Square D NF panelboards and equipment, this E-Frame breaker delivers robust overload and short-circuit protection with an interrupt rating of 25 kAIC at 240V AC and below, and 18 kAIC at 480Y/277V AC. The bolt-on mounting simplifies installation, and the Visi-Trip indicator allows fast fault identification. Equipped with lug terminals supporting copper or aluminum conductors up to AWG 2/0, it ensures reliable performance, safety, and compliance with UL, cULus, and HACR standards for demanding commercial and lighting applications.

Voltage and Rating

• Current Rating: 100 Amps
• Voltage Rating: 480Y/277 Volts AC
• Interrupting Capacity:
• 25 kAIC at 240V AC and below
• 18 kAIC at 480Y/277V AC
• Frequency: 50/60 Hz

Key Specifications

• Breaker Type: Thermal-Magnetic
• Number of Poles: 3-Pole
• Mounting Type: Bolt-On
• Product Range: E-Frame (for Square D NF panelboards and equipment)
• Application: Commercial and industrial branch circuit protection
• Special Features: Visi-Trip indicator
• Ratings: UL Listed, cULus, HACR Rated

Technical Specifications

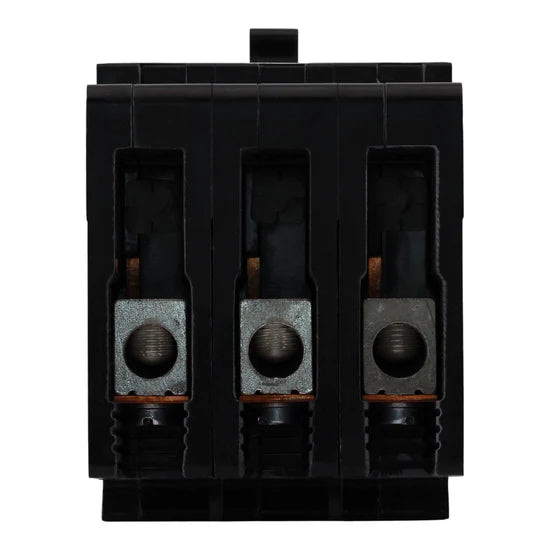

• Connection Type: Lug terminals
• Wire Size: AWG 14–2/0 Cu/Al
• Terminal Tightening Torque:
• 34.5 lb-in (AWG 14–10)
• 49.6 lb-in (AWG 8–2/0)
• Operating Mechanism: Thermal-magnetic
• Interrupt Rating: 25 kAIC at 240V AC and below; 18 kAIC at 480Y/277V AC
• Certifications: UL Listed, cULus, HACR Rated

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: EDB34100
• UPC: 785901875383

Dimensions

• • Height: 5.66 in
  • Width: 2.94 in
  • Depth: 4.05 in
  • Weight: 4.0 lbs
