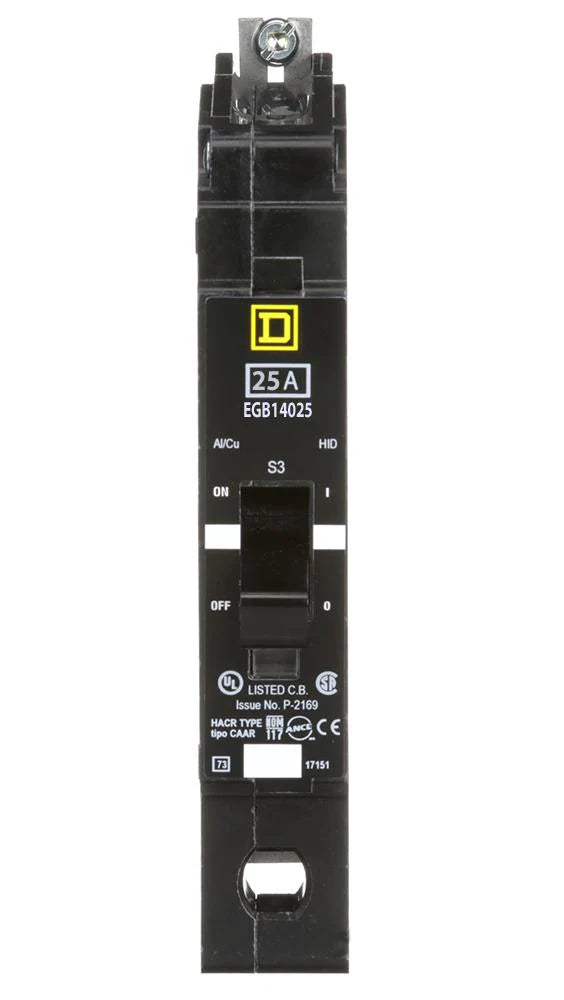

Square D EGB14025 Bolt-On Circuit Breaker – 1 Pole – 25A – 277V AC – Thermal Magnetic – E-Frame

The Square D EGB14025 is a bolt-on molded case circuit breaker engineered for commercial and industrial branch circuit protection applications. Manufactured by Schneider Electric, this 1-pole, 25A breaker is designed for installation in NF Panelboards and provides dependable thermal-magnetic protection against overloads and short-circuit faults.

As part of the EGB Series, the EGB14025 features a high interrupting capacity design, making it suitable for electrical systems with elevated fault current requirements. The breaker incorporates an integrated trip indicator for rapid fault identification and utilizes aluminum lug terminals compatible with both copper and aluminum conductors.

CSA approved, UL listed, HID-rated, and HACR-rated, the EGB14025 is well suited for lighting systems, HVAC equipment, refrigeration systems, and general commercial electrical distribution applications. Its compact E-Frame construction and bolt-on mounting configuration ensure secure installation and long-term operational reliability.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: EGB14025
• Series: EGB Series
• Type: Molded Case Circuit Breaker (E-Frame)
• Configuration: 1 Pole
• Phase: 1 Phase
• Current Rating: 25A
• Voltage Rating: 277V AC
• Mounting Style: Bolt-On
• Connection Type: Aluminum Lugs
• Protection Type: Thermal Magnetic
• Trip Function: LI – Long-Time and Instantaneous
• Application: NF Panelboard

Interrupting Ratings

• 35kA @ 277V
• 65kA @ 240V
• 65kA @ 120V

Dimensions

• Height: 5.66 in
• Width: 0.98 in
• Depth: 4.05 in
• Weight: 2 lbs

Electrical Ratings

• Trip Unit Rating: 875A
• Holding Current: 270A
• Line Rated Current: 25A
• Maximum Operating Voltage: 277V AC
• AWG Range:
  • Copper: AWG 14–6
  • Aluminum: AWG 12–6

Construction Features

• E-Frame molded case design
• High interrupting capacity construction
• Bolt-on mounting for NF Panelboard applications
• Thermal-magnetic overload and short-circuit protection
• Integrated trip indicator for fault identification
• Aluminum lug terminals compatible with copper and aluminum conductors
• Calibrated for 40°C operating environments
• HID-rated and HACR-rated construction

Applications

• Commercial electrical distribution systems
• NF Panelboard installations
• Lighting distribution circuits
• HID lighting applications
• HVAC and refrigeration equipment
• Industrial branch circuit protection
• OEM and control panel applications

Certifications & Approvals

• CSA Approved
• UL Listed
• HID Rated
• HACR Rated
• Authentic Square D / Schneider Electric product
• Designed for NF Panelboard systems
