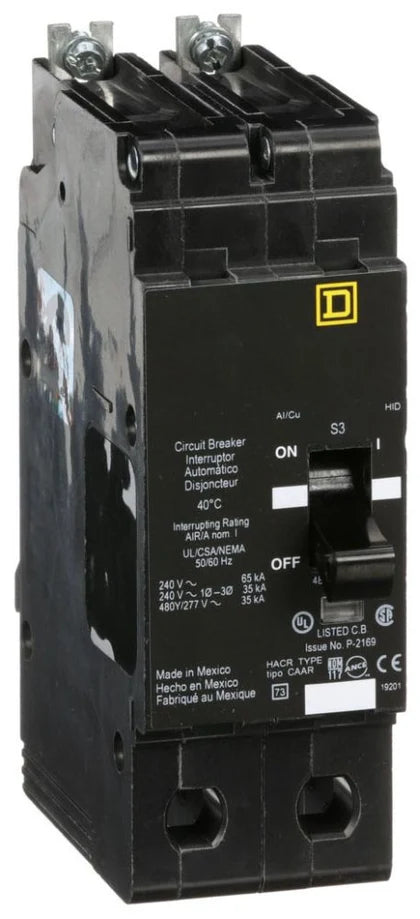

Square D EGB24045 45A 2-Pole 480Y/277V Bolt-On Thermal Magnetic Circuit Breaker 35kAIC

Product Description

The Square D EGB24045 is a 45 Amp, 2-pole, bolt-on thermal magnetic miniature circuit breaker designed for use in Square D NF lighting panelboards. Part of the EGB E-Frame Series, it provides reliable overload and short-circuit protection for commercial and industrial electrical distribution systems operating at 480Y/277 VAC. Featuring a high interrupting capacity, Visi-Trip® trip indication, and HACR rating, the EGB24045 is an excellent choice for demanding branch circuit protection.

Key Features

• Genuine Square D / Schneider Electric circuit breaker
• EGB E-Frame Series
• 45 Amp continuous current rating
• 2-Pole configuration
• Thermal Magnetic trip unit
• Bolt-on mounting
• Designed for Square D NF lighting panelboards
• High interrupting capacity
• Visi-Trip® trip indicator
• HACR Rated
• HID Rated
• UL Listed
• 50/60 Hz operation

Technical Specifications

• Manufacturer: Schneider Electric / Square D
• Catalog Number: EGB24045
• Series: EGB E-Frame
• Product Type: Miniature Molded Case Circuit Breaker
• Amperage: 45A
• Poles: 2
• Voltage Rating: 480Y/277 VAC
• Phase: 1 Phase
• Trip Unit: Thermal Magnetic
• Mounting Style: Bolt-On
• Connection Type: Lugs
• Compatible Panelboards: Square D NF Series
• Interrupting Ratings:
  • 65kAIC @ 120VAC
  • 35kAIC @ 277VAC
  • 35kAIC @ 480Y/277VAC
• Frequency: 50/60 Hz
• Wire Range: #14 AWG – 2/0 AWG Copper / #12 AWG – 2/0 AWG Aluminum
• Height: 5.66 in.
• Width: 1.96 in.
• Depth: 4.05 in.
• Approximate Weight: 2.5 lbs
• Certifications: UL Listed, HACR Rated, HID Rated
• Country of Origin: USA or Mexico (varies by production run)

Product Data

• Brand: Square D
• Manufacturer: Schneider Electric
• Model: EGB24045
• UPC / GTIN: 785901130321
• GTIN-14: 00785901130321
• Condition: New / Manufacturer Surplus / Professionally Reconditioned
• Mounting Type: Bolt-On
• Frame Size: E-Frame
• Panel Compatibility: Square D NF Lighting Panelboards
• Protection Type: Thermal Magnetic Overload and Short-Circuit Protection
