Square D

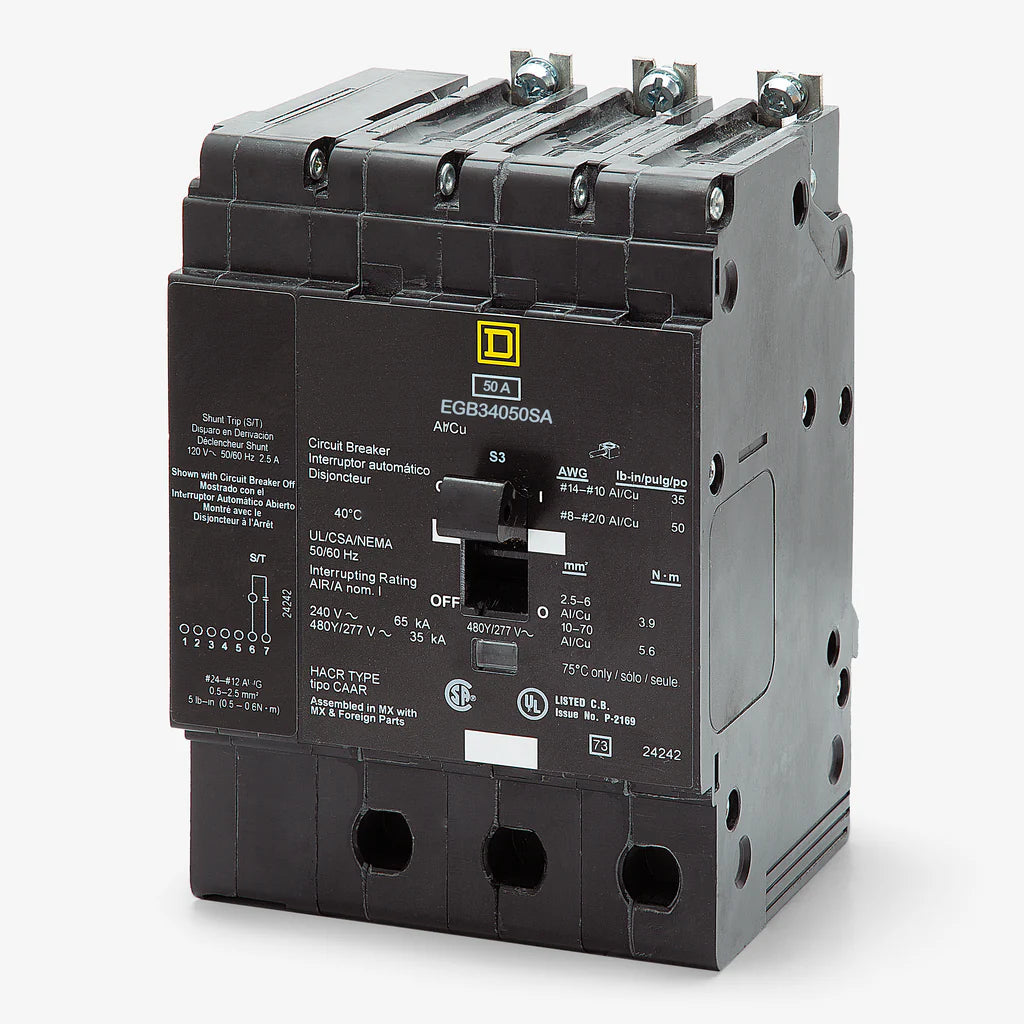

Square D EGB34050SA E-Frame Molded Case Circuit Breaker – 3 Pole – 50A – Bolt-On – Thermal Magnetic – Factory Shunt Trip

In stock
SKU: EGB34050SA GTIN/UPC: 785901159094
$1,310.85
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D EGB34050SA is an E-Frame molded case circuit breaker designed for commercial and industrial power distribution systems requiring reliable protection and remote disconnect capability. Manufactured by Schneider Electric, this 3-pole, 50A breaker provides dependable thermal-magnetic protection for overload and short-circuit conditions in three-phase electrical applications.

This model includes a factory-installed shunt trip mechanism, enabling remote tripping for emergency shutdown systems, control automation, and facility safety applications. It is designed for secure bolt-on installation in standard NF panelboards and features load-side lugs for straightforward integration.

With a high interrupting rating of 65kA at 240VAC and 35kA at 480Y/277VAC, the EGB34050SA delivers strong fault-clearing performance for demanding electrical environments. A built-in visual trip indicator enhances maintenance efficiency by allowing quick identification of tripped circuits.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: EGB34050SA
  • Series: EGB Series
  • Type: Molded Case Circuit Breaker (E-Frame)
  • Configuration: 3 Pole
  • Phase: 3 Phase
  • Current Rating: 50A
  • Voltage Rating: 120VAC, 240VAC, 480Y/277VAC
  • Mounting Style: Bolt-On
  • Connection Type: Lug Terminal (Load Side Lugs Included)
  • Protection Type: Thermal Magnetic
  • Trip Function: LI – Long-Time and Instantaneous
  • Trip Adjustability: Fixed Thermal, Fixed Magnetic
  • Application: NF Panelboard / Commercial Power Distribution

Interrupting Ratings

  • 65kA @ 120VAC
  • 65kA @ 240VAC
  • 35kA @ 480Y/277VAC

Electrical & Mechanical Features

  • Factory-installed shunt trip for remote power disconnection
  • Thermal-magnetic protection for overload and short-circuit faults
  • Bolt-on NF panelboard mounting system
  • Load-side lugs included
  • Visual trip indicator for fast fault identification
  • HACR and HID rated construction
  • Suitable for commercial facility distribution systems
  • Designed for maintenance-friendly operation and upgrades
  • Fixed trip characteristics for consistent protection

Wire Range

  • Copper: AWG 14–2/0
  • Aluminum: AWG 12–2/0
  • Maximum wire size: 2/0 AWG
  • Minimum wire size: AWG 14 Copper / AWG 12 Aluminum

Accessories

  • Factory-installed shunt trip
  • Auxiliary switch option
  • Alarm switch option
  • Padlock attachment option

Standards & Approvals

  • UL 489 Listed
  • CSA C22.2 No. 5
  • NFPA 70 Compliant
  • NEMA AB 1 Compliant
  • CSA Approved
  • cULus Listed
  • HACR Rated
  • HID Rated
  • NOM Approved
  • Authentic Square D / Schneider Electric product
  • Designed for NF Panelboard systems
  • Type Thermal Magnetic
  • Vendor Square D
  • Brand Square D
