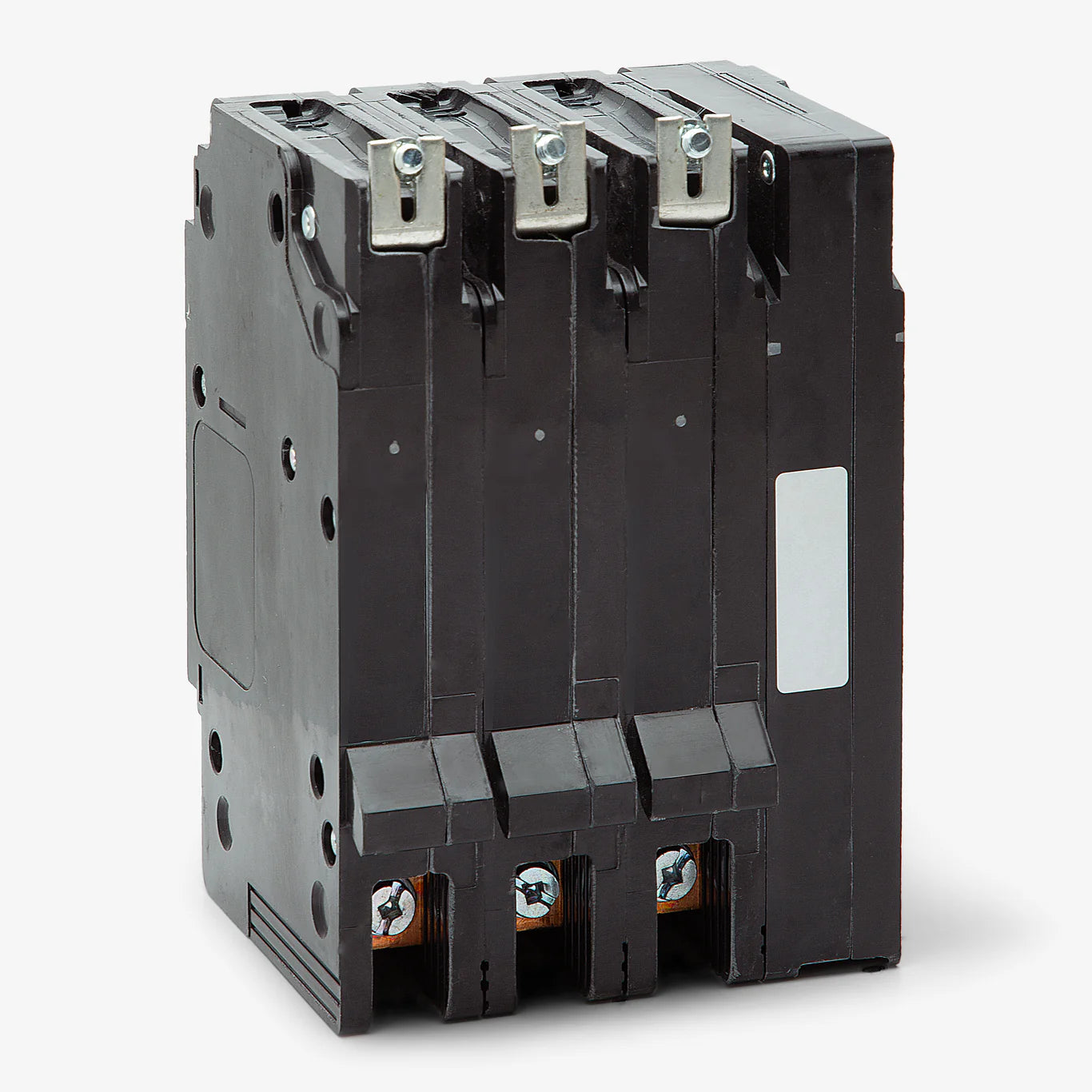

Square D EGB34070SA E-Frame Molded Case Circuit Breaker – 3 Pole – 70A – Bolt-On – Thermal Magnetic – 120VAC Shunt Trip

The Square D EGB34070SA is a molded case circuit breaker designed for commercial and industrial power distribution systems requiring reliable protection and remote tripping capability. Manufactured by Schneider Electric, this 3-pole, 70A E-Frame breaker delivers dependable thermal-magnetic protection for overloads and short-circuit conditions in three-phase electrical applications.

This model includes a factory-installed 120VAC shunt trip, enabling remote or automated disconnection for emergency power-off systems, safety interlocks, and building automation control. It mounts securely into NF panelboards using a bolt-on connection and is designed for stable operation in demanding electrical environments.

Due to the integrated shunt trip mechanism, the breaker features a wider 3.92-inch footprint compared to standard models, ensuring proper accommodation of the accessory within NF panelboard configurations.

With a high interrupting rating of 65kA at 240VAC and 35kA at 480Y/277VAC, the EGB34070SA provides strong fault protection performance for commercial distribution systems. A Visi-Trip indicator allows quick visual identification of tripped circuits, improving maintenance efficiency and system uptime.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: EGB34070SA
• Series: EGB Series
• Type: Molded Case Circuit Breaker (E-Frame)
• Configuration: 3 Pole
• Phase: 3 Phase
• Current Rating: 70A
• Voltage Rating: 120VAC, 240VAC, 480Y/277VAC

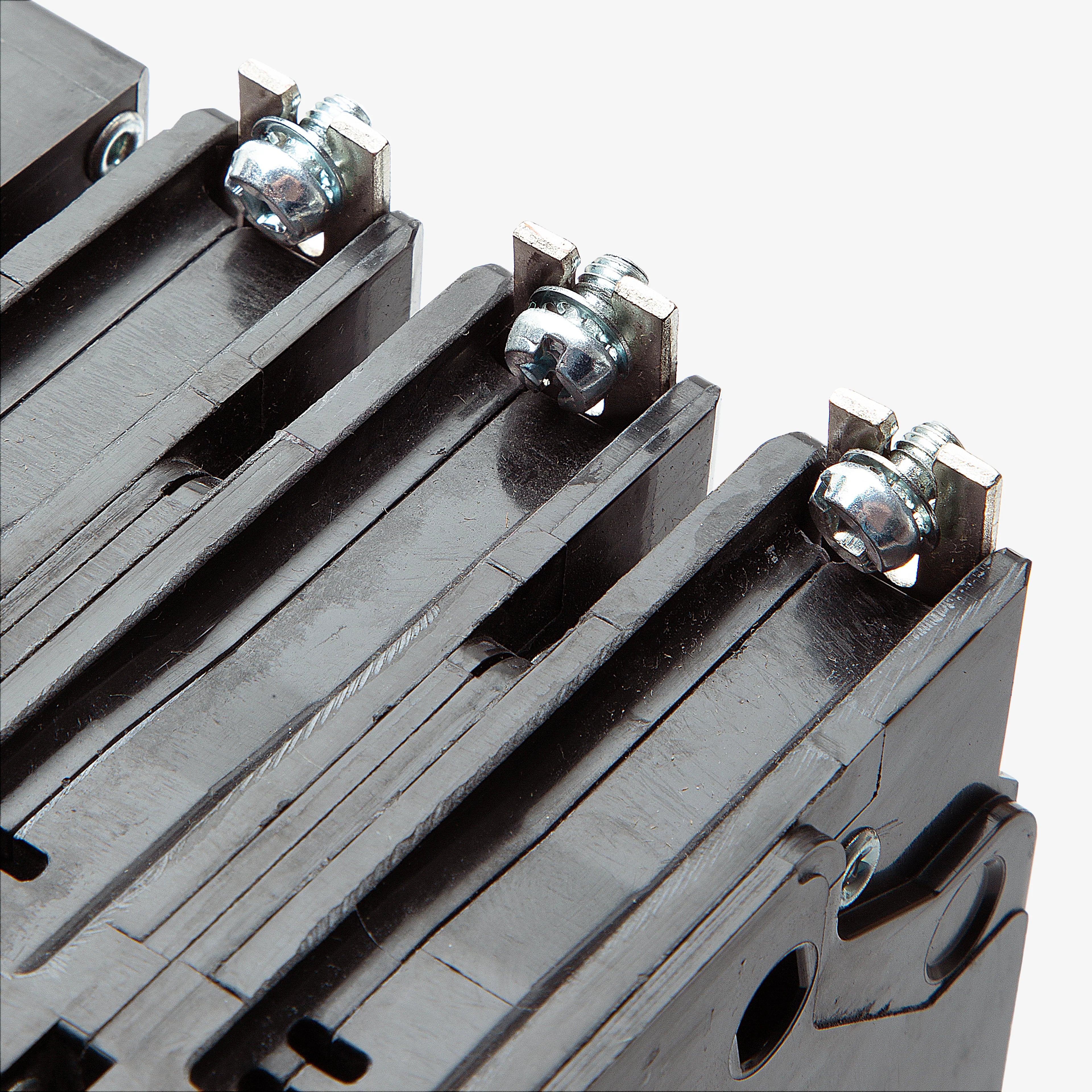

• Mounting Style: Bolt-On

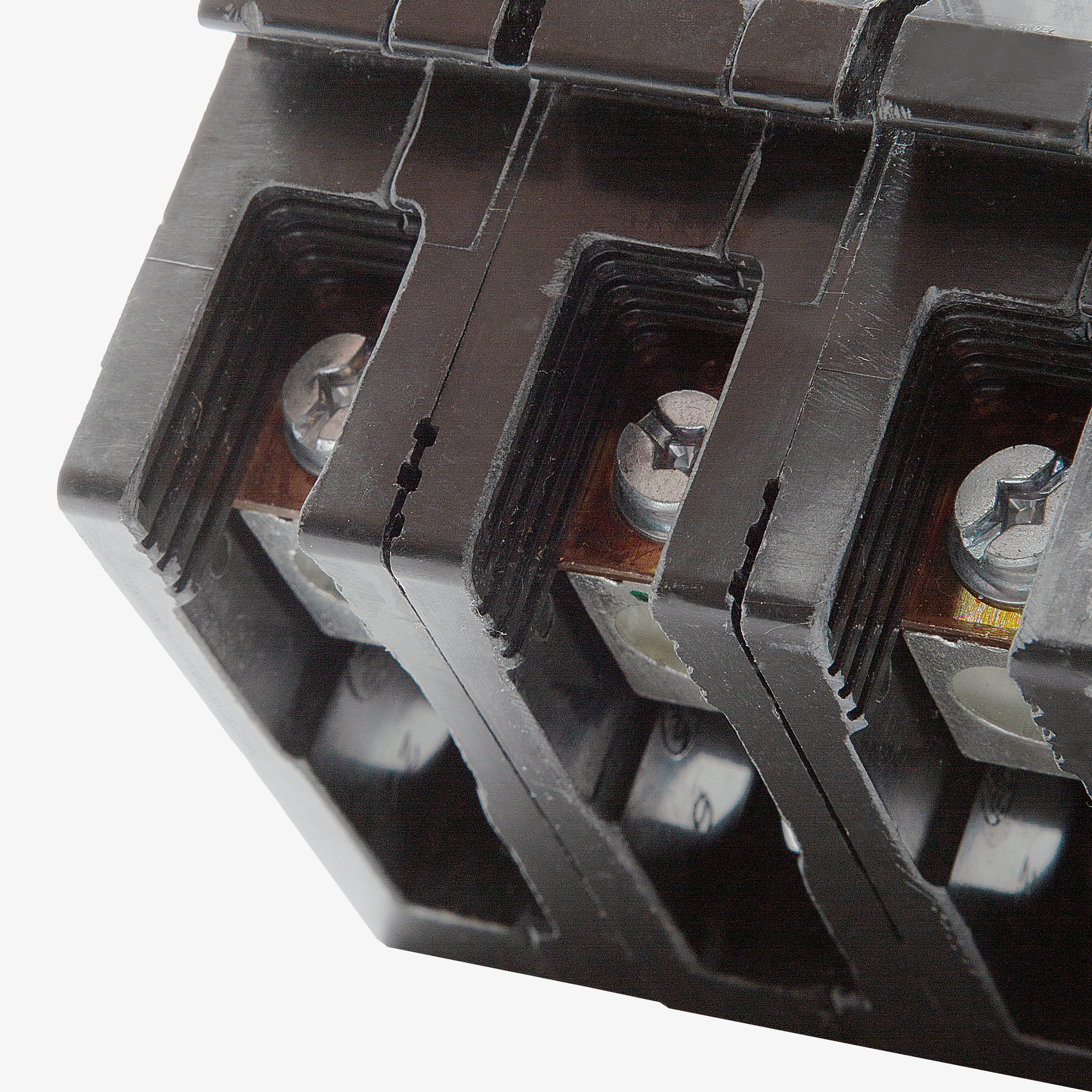

• Connection Type: Lug Terminal (Aluminum Lugs Included)
• Protection Type: Thermal Magnetic
• Trip Function: LI – Long-Time and Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Application: NF Panelboard / Commercial Power Distribution

Interrupting Ratings

• 65kA @ 120VAC
• 65kA @ 240VAC
• 35kA @ 480Y/277VAC

Electrical & Mechanical Features

• Factory-installed 120VAC shunt trip for remote and automated control
• Thermal-magnetic overload and short-circuit protection
• Bolt-on NF panelboard mounting system
• Wider footprint (3.92 in) due to integrated shunt trip module
• Visi-Trip visual fault indicator for quick troubleshooting
• Designed for emergency power-off and automation systems
• Suitable for commercial and industrial three-phase distribution
• HACR rated for HVAC applications
• Fixed trip characteristics for consistent protection performance

Wire Range

• Copper: AWG 14–2/0
• Aluminum: AWG 12–2/0
• Maximum wire size: 2/0 AWG
• Minimum wire size: AWG 14 Copper / AWG 12 Aluminum

Accessories

• Factory-installed 120VAC shunt trip
• Auxiliary switch option
• Alarm switch option
• Padlock attachment option

Standards & Approvals

• UL 489 Listed
• CSA C22.2 No. 5
• NEMA AB 1 Compliant
• NFPA 70 Compliant
• CSA Approved
• cULus Listed
• HACR Rated
• NOM Approved
• RoHS Compliant
• Authentic Square D / Schneider Electric product
• Designed for NF Panelboard systems
