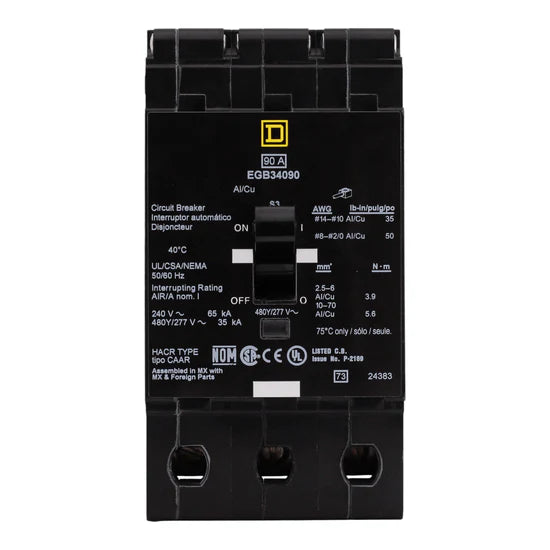

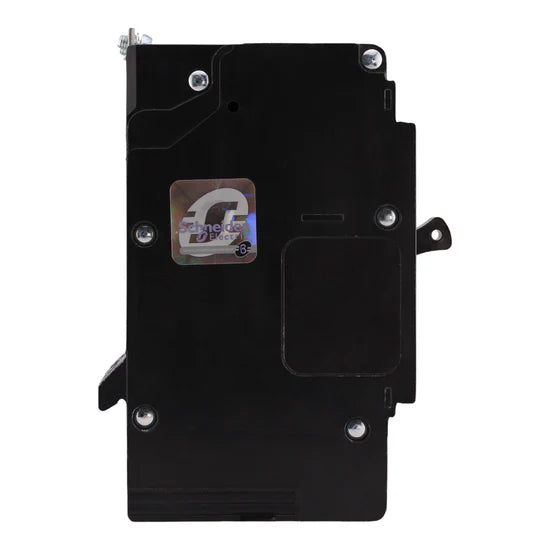

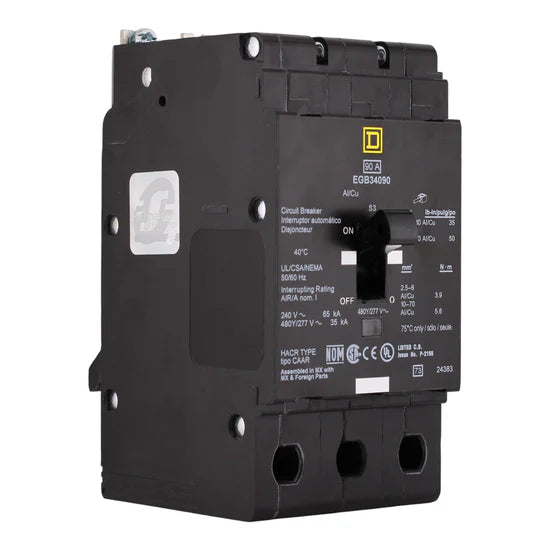

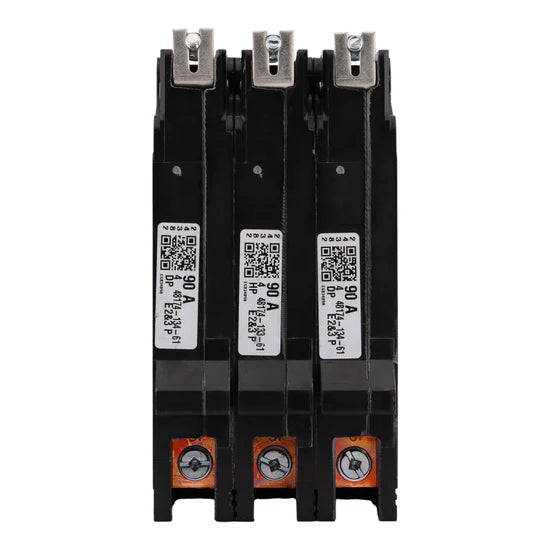

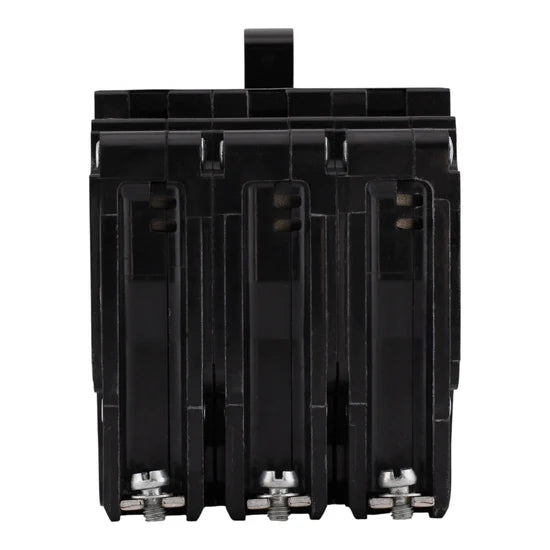

Square D EGB34090 90A 3-Pole Thermal-Magnetic – Bolt-On – 480Y/277V

The Square D EGB34090 is a 90 Amp, 3-Pole thermal-magnetic circuit breaker designed for E-Frame NF panelboards and lighting applications. With bolt-on mounting, a Visi-Trip indicator, and 65kAIC interrupt rating, it delivers reliable overload and short-circuit protection for commercial and industrial circuits.

Voltage and Rating

• Amperage: 90 Amps
• Voltage: 480Y/277 Volts AC, 120/240 Volts AC
• Interrupt Rating: 65 kAIC @ 120/240V; 35 kAIC @ 277V and 480Y/277V

Key Specifications

• Breaker Type: Thermal-Magnetic Circuit Breaker
• Poles: 3-Pole
• Mounting Mode: Bolt-On
• Trip Unit Technology: Thermal-Magnetic
• Trip Indicator: Visi-Trip for visual trip status
• Hold Current: 1000 Amps
• Trip Current: 2300 Amps

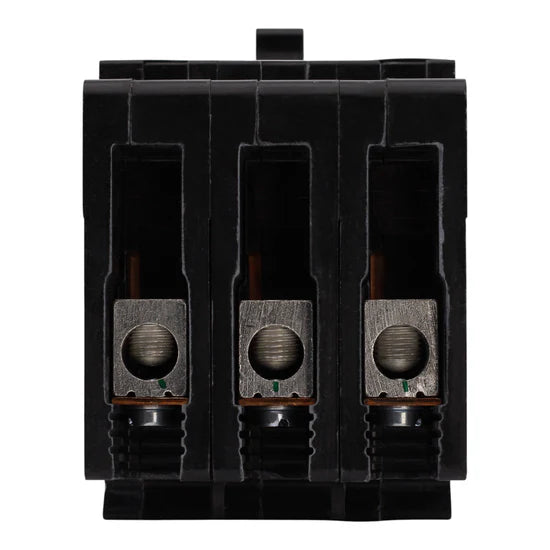

• Wire Size: #14–2/0 AWG Cu, #12–2/0 AWG Al
• Tightening Torque: 34.5 lb-in (AWG 14–10), 49.6 lb-in (AWG 8–2/0)

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: EGB34090
• UPC: 785901130475

• Dimensions:

  • Height: 5.66 in
  • Width: 2.94 in
  • Depth: 4.05 in
  • Weight: 4 lbs

• Certifications: UL Listed, CSA, HACR Rated
