Square D

Square D EGB34100SA Molded Case Circuit Breaker – 3 Pole – 100A – Bolt-On – Thermal Magnetic – Factory-Installed Shunt Trip

In stock
SKU: EGB34100SA GTIN/UPC: 785901649205
$1,516.38
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

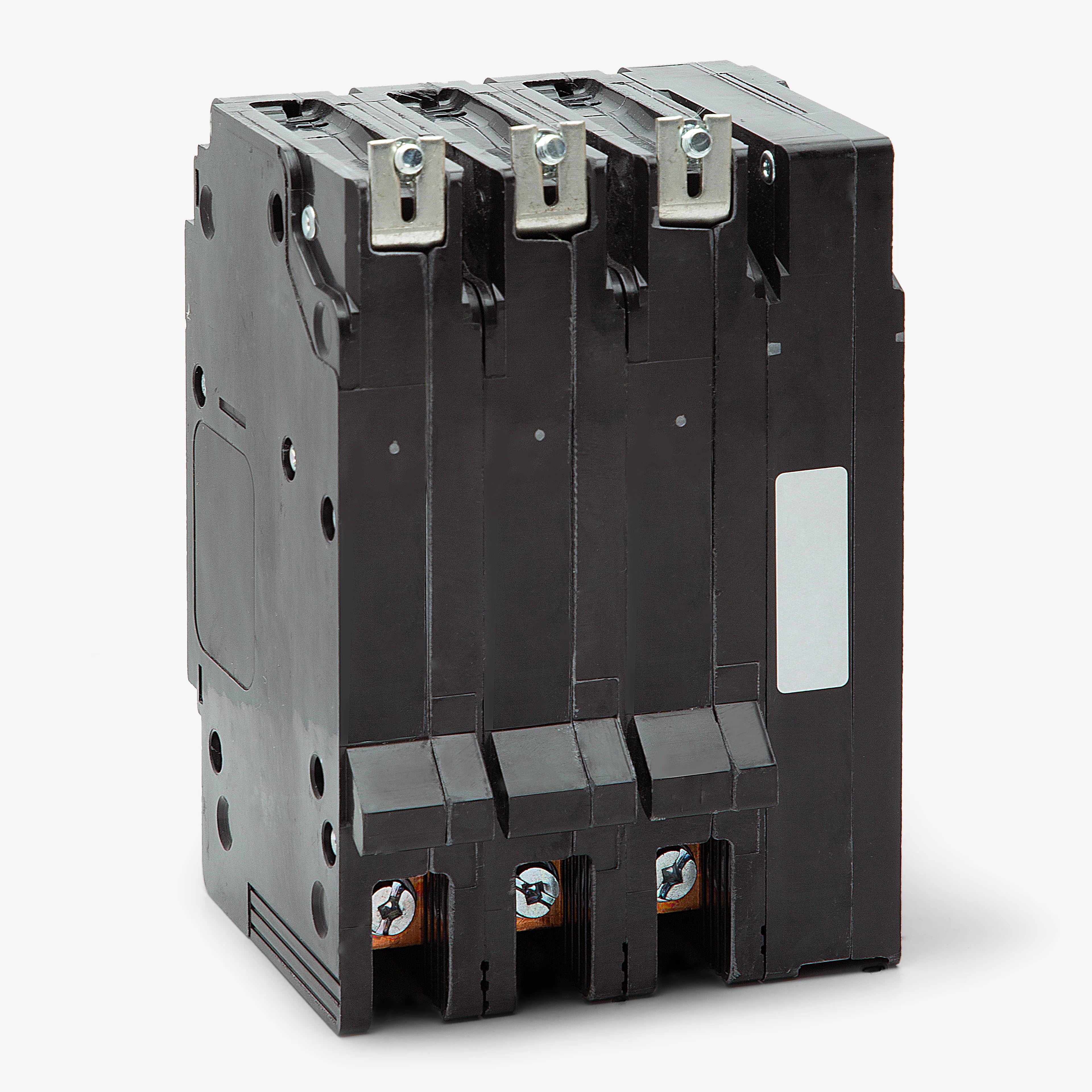

The Square D EGB34100SA is an E-Frame molded case circuit breaker designed for commercial and industrial electrical distribution systems requiring remote tripping capability and dependable circuit protection. Manufactured by Schneider Electric, this 3-pole, 100A breaker combines thermal-magnetic protection with a factory-installed shunt trip for enhanced safety and automated control applications.

Engineered for installation in Square D NF panelboards, the EGB34100SA utilizes a secure bolt-on mounting configuration and includes aluminum load-side lugs for reliable conductor termination. The integrated shunt trip allows remote opening of the breaker from external control circuits, making it suitable for emergency shutdown systems, fire alarm interfaces, safety interlocks, and building automation applications.

With interrupting ratings of 65kA at 120VAC and 240VAC, and 35kA at 480Y/277VAC, this breaker provides high fault-clearing performance for demanding electrical environments. The breaker also incorporates Visi-Trip technology, allowing maintenance personnel to quickly identify tripped circuits and reduce troubleshooting time.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: EGB34100SA
  • Series: EGB Series
  • Type: Molded Case Circuit Breaker
  • Frame Type: E-Frame
  • Configuration: 3 Pole
  • Phase: 3 Phase
  • Current Rating: 100A
  • Voltage Rating: 120VAC, 240VAC, 480Y/277VAC
  • Mounting Style: Bolt-On
  • Terminal Type: Lugs
  • Protection Type: Thermal Magnetic
  • Trip Function: LI – Long-Time and Instantaneous
  • Trip Adjustability: Fixed Thermal, Fixed Magnetic
  • Application: Square D NF Panelboards

Interrupting Ratings

  • 65kA @ 120VAC
  • 65kA @ 240VAC
  • 35kA @ 480Y/277VAC

Electrical & Mechanical Features

  • Factory-installed shunt trip for remote circuit operation
  • Thermal-magnetic overload and short-circuit protection
  • Long-time and instantaneous trip functions
  • Fixed thermal and fixed magnetic trip characteristics
  • Bolt-on mounting configuration

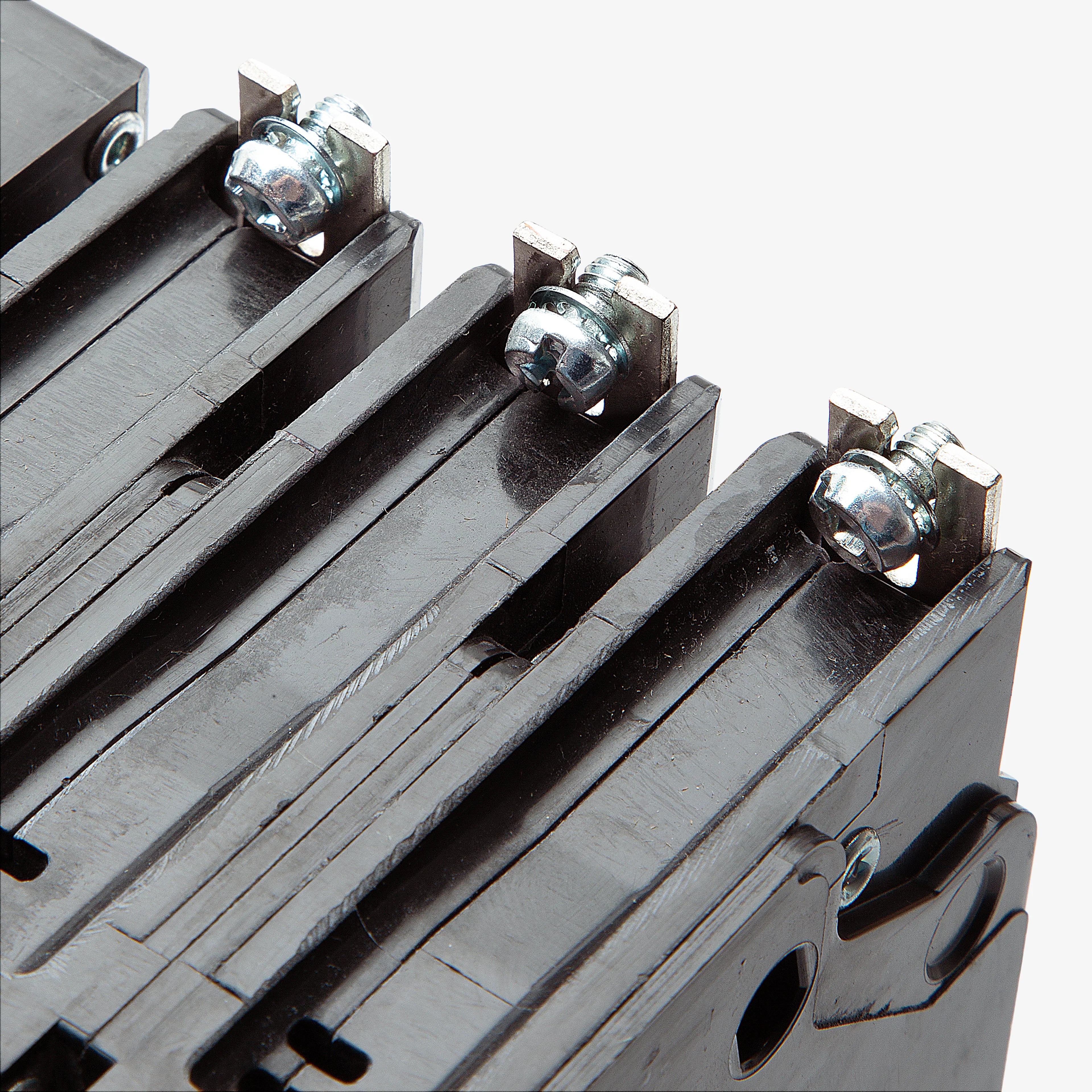

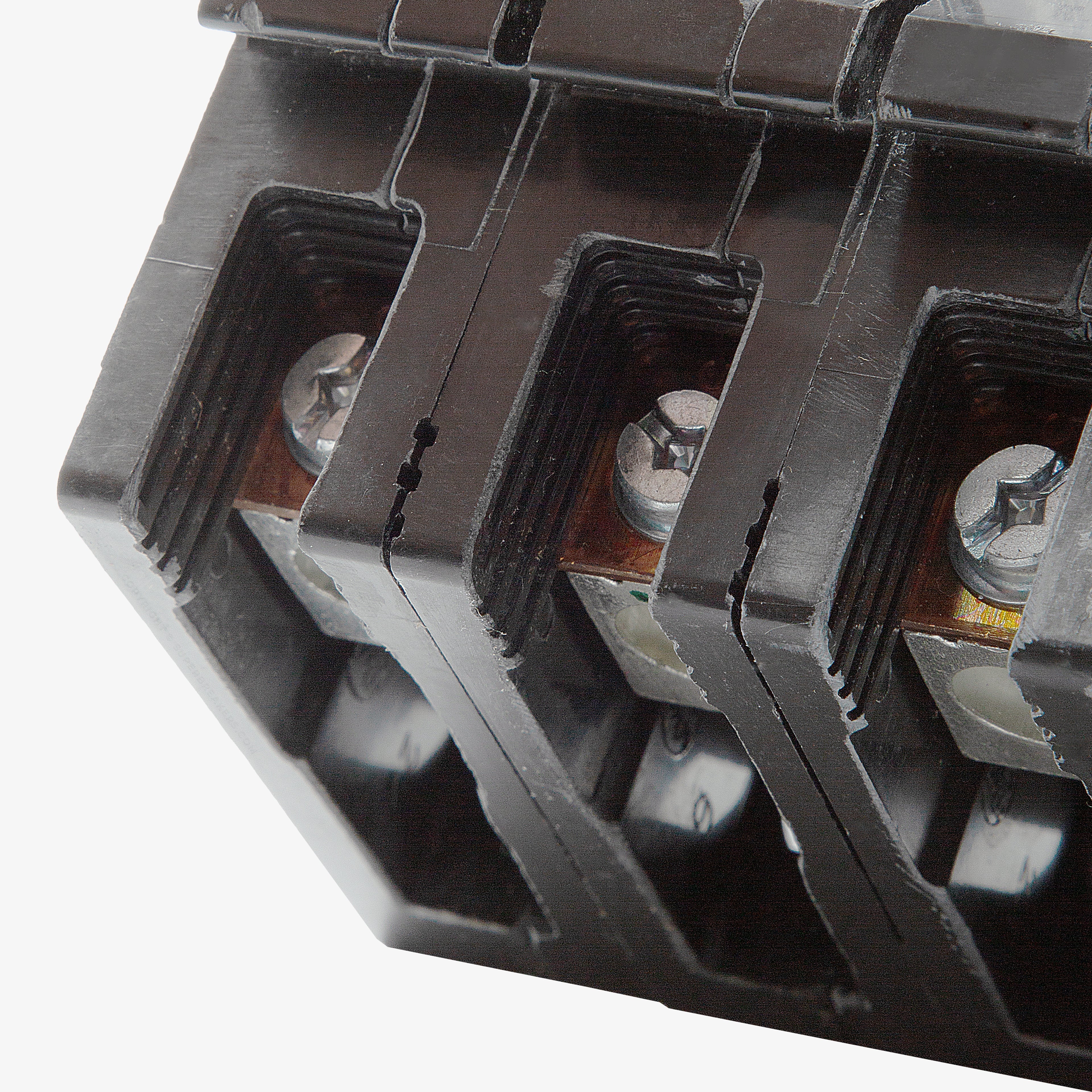

  • Aluminum load-side lugs included
  • Visi-Trip visual trip indicator
  • HACR rated for HVAC applications
  • Suitable for emergency shutdown and automation systems
  • High interrupting capacity for commercial and industrial installations

Wire Range

  • Copper Conductors: AWG 14–2/0
  • Aluminum Conductors: AWG 12–2/0
  • Maximum Wire Size: 2/0 AWG
  • Minimum Wire Size: AWG 14 Copper / AWG 12 Aluminum

Available Options

  • Auxiliary Switch
  • Alarm Switch
  • Padlock Attachment

Included Accessories

  • Factory-Installed Shunt Trip
  • Aluminum Lugs

Standards & Approvals

  • UL 489 Listed
  • CSA C22.2 No. 5
  • NEMA AB 1 Compliant
  • NFPA 70 Compliant
  • CSA Approved
  • cULus Listed
  • HACR Rated
  • NOM Approved
  • UL Listed
  • Authentic Square D / Schneider Electric product
  • Manufactured to EGB Series specifications for NF panelboard applications

Operating Conditions

  • Ambient Temperature Rating: -25°C to 70°C
  • Designed for commercial and industrial power distribution systems
  • Ideal for emergency shutdown, safety interlock, and remote-control applications
  • Type Thermal Magnetic
  • Vendor Square D
  • Brand Square D
