Square D

Square D EGB34125SA E-Frame Molded Case Circuit Breaker – 3 Pole – 125A – Bolt-On – Thermal Magnetic – 120VAC Shunt Trip

In stock
SKU: EGB34125SA GTIN/UPC: 785901590217
$1,840.23
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D EGB34125SA is a molded case circuit breaker designed for advanced control and high-capacity power distribution applications. Manufactured by Schneider Electric, this 3-pole, 125A E-Frame breaker delivers reliable thermal-magnetic protection for overloads and short-circuit conditions in three-phase electrical systems.

This model includes a factory-installed 120VAC shunt trip mechanism, enabling remote tripping for emergency shutdown systems, facility automation, and safety interlocking applications. It is designed for secure bolt-on installation in NF panelboards and features a wider 3.92-inch footprint to accommodate the integrated shunt trip assembly.

With high interrupting ratings of 65kA at 120VAC and 240VAC, and 35kA at 480Y/277VAC, the EGB34125SA provides strong fault-clearing capability for demanding industrial environments. A Visi-Trip indicator enhances operational efficiency by providing fast visual identification of tripped circuits.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: EGB34125SA
  • Series: EGB Series
  • Type: Molded Case Circuit Breaker (E-Frame)
  • Configuration: 3 Pole
  • Phase: 3 Phase
  • Current Rating: 125A
  • Voltage Rating: 120VAC, 240VAC, 480Y/277VAC

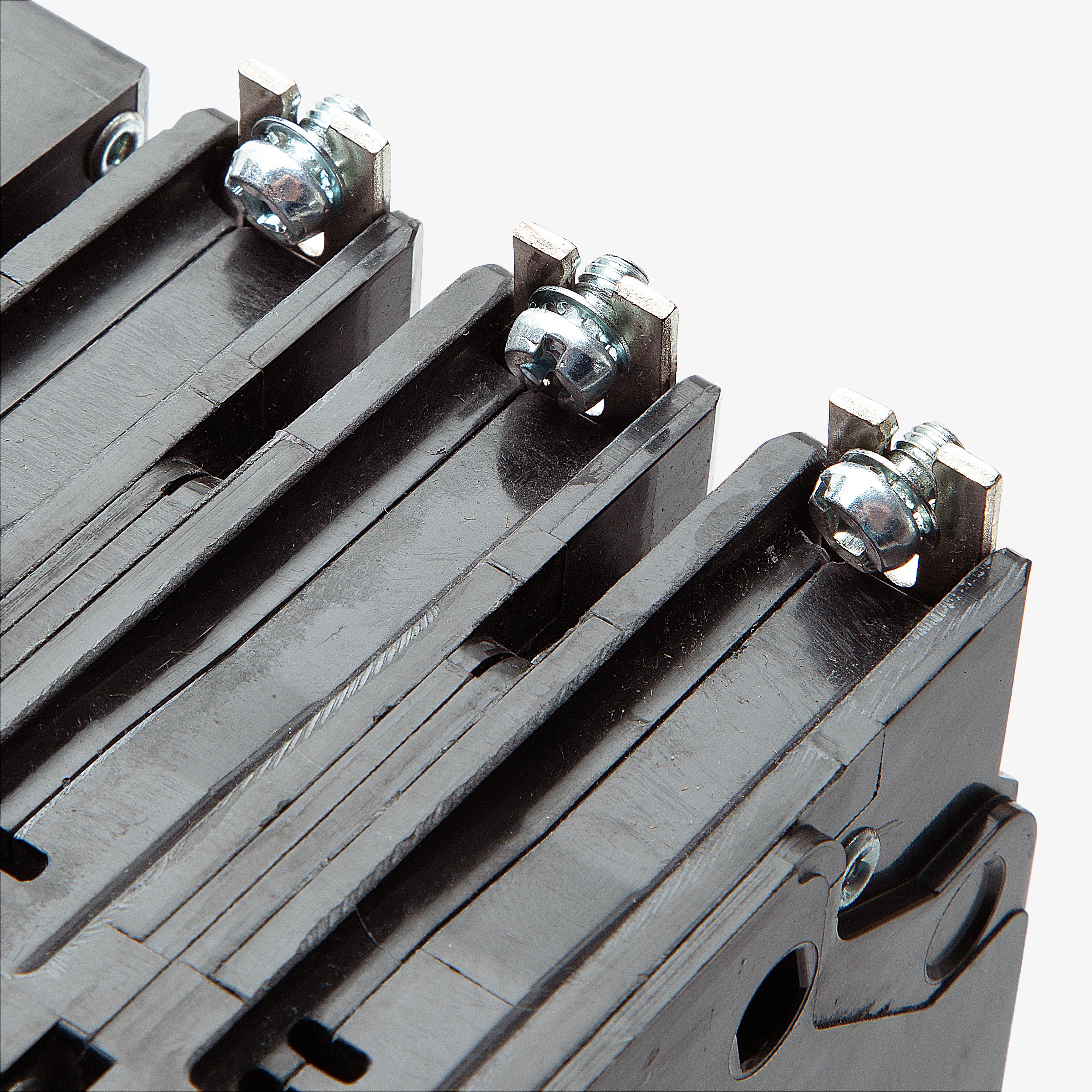

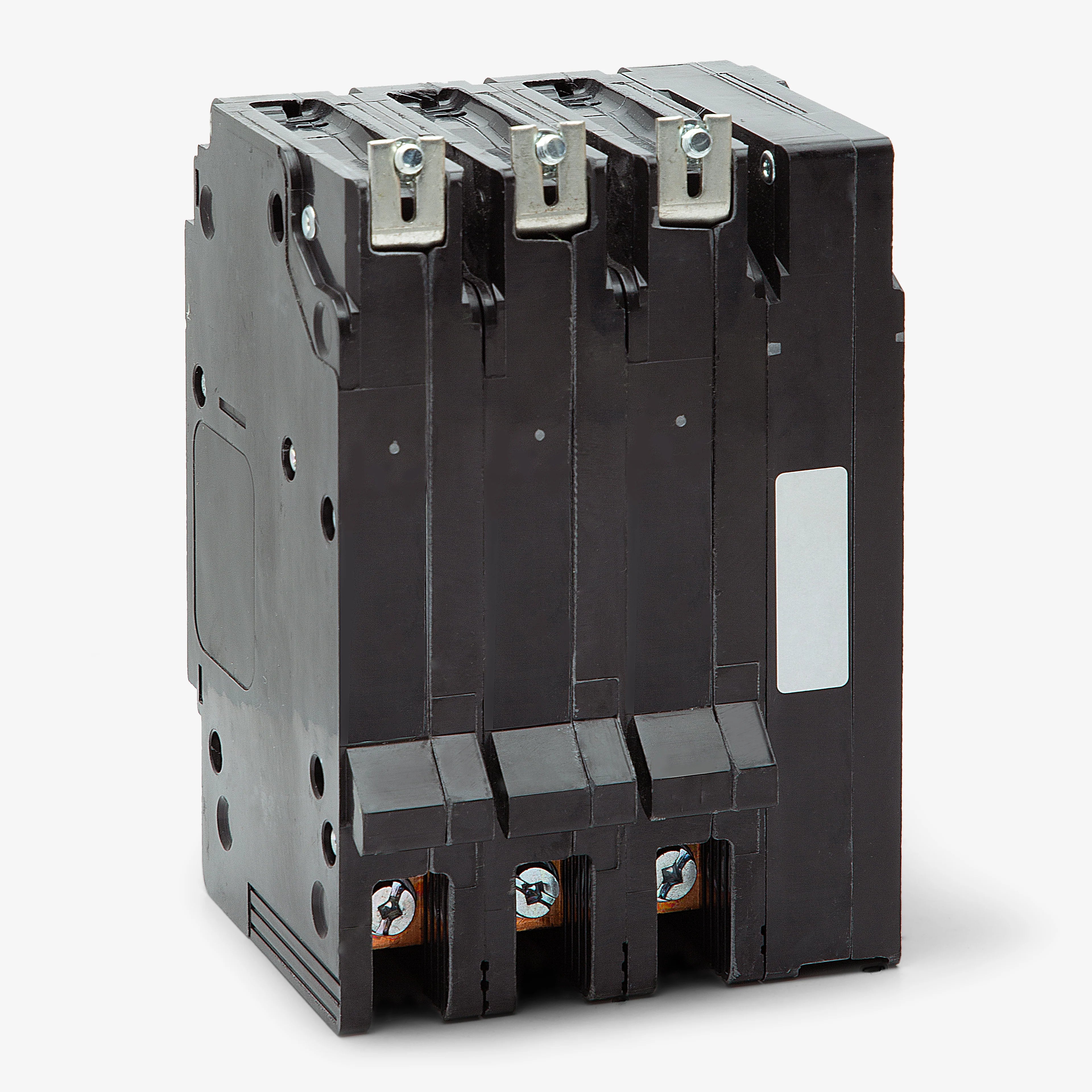

  • Mounting Style: Bolt-On

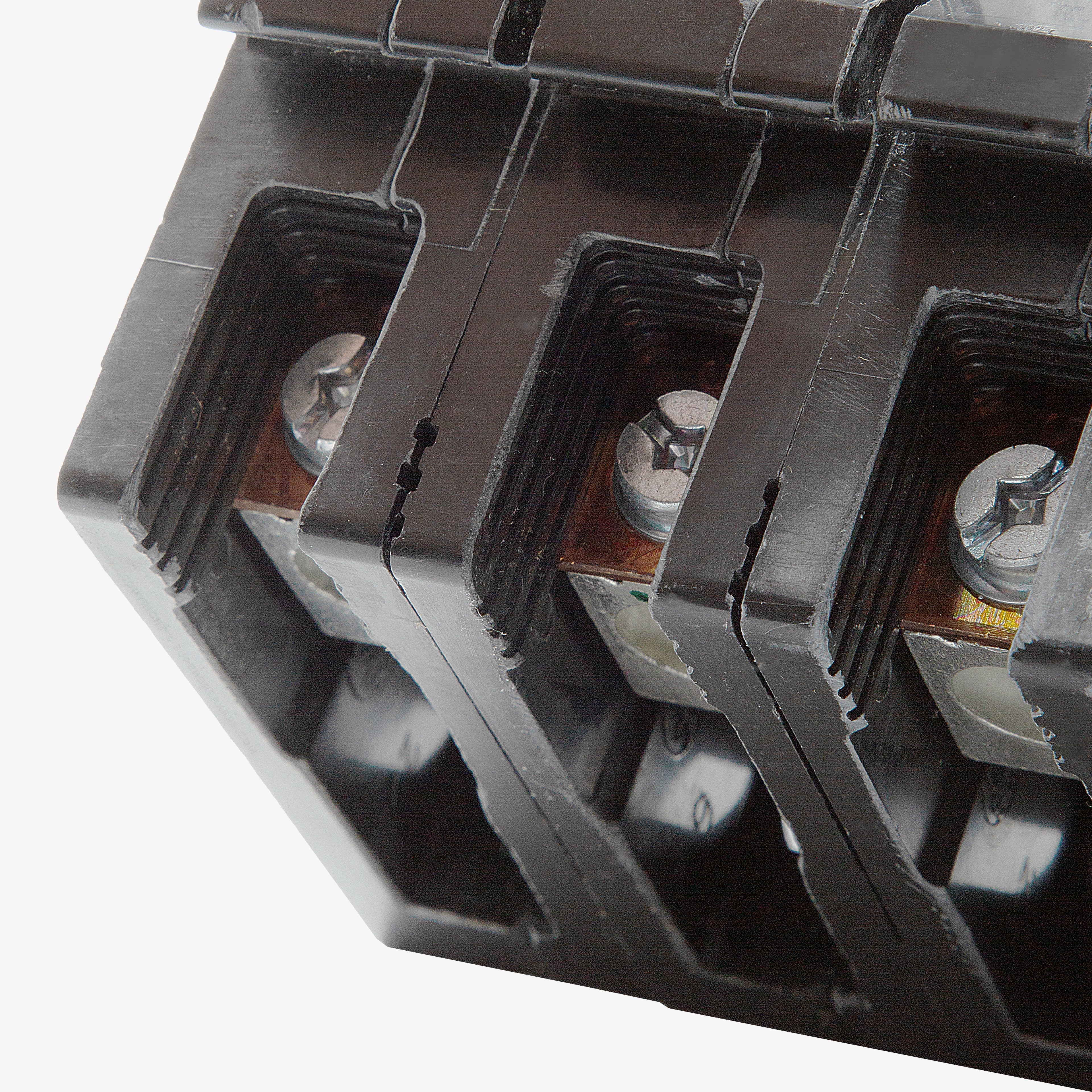

  • Connection Type: Lug Terminal
  • Protection Type: Thermal Magnetic
  • Trip Function: LI – Long-Time and Instantaneous
  • Trip Adjustability: Fixed Thermal, Fixed Magnetic
  • Application: NF Panelboard / Industrial Power Distribution

Interrupting Ratings

  • 65kA @ 120VAC
  • 65kA @ 240VAC
  • 35kA @ 480Y/277VAC

Electrical & Mechanical Features

  • Factory-installed 120VAC shunt trip for remote shutdown capability
  • Thermal-magnetic overload and short-circuit protection
  • Bolt-on NF panelboard mounting system
  • Expanded 3.92-inch footprint due to integrated shunt trip module
  • Visi-Trip visual fault indicator for quick troubleshooting
  • Suitable for emergency power-off and automation systems
  • Designed for industrial and commercial three-phase applications
  • Fixed trip characteristics for consistent protection performance
  • HACR rated construction for HVAC applications

Wire Range

  • Copper: AWG 14–2/0
  • Aluminum: AWG 12–2/0
  • Maximum wire size: 2/0 AWG
  • Minimum wire size: AWG 14 Copper / AWG 12 Aluminum

Accessories

  • Factory-installed 120VAC shunt trip
  • Auxiliary switch option
  • Alarm switch option
  • Padlock attachment option

Standards & Approvals

  • UL 489 Listed
  • CSA C22.2 No. 5
  • NEMA AB 1 Compliant
  • NFPA 70 Compliant
  • CSA Approved
  • cULus Listed
  • HACR Rated
  • NOM Approved
  • RoHS Compliant
  • Authentic Square D / Schneider Electric product
  • Designed for NF Panelboard systems
  • Type Thermal Magnetic
  • Vendor Square D
  • Brand Square D
