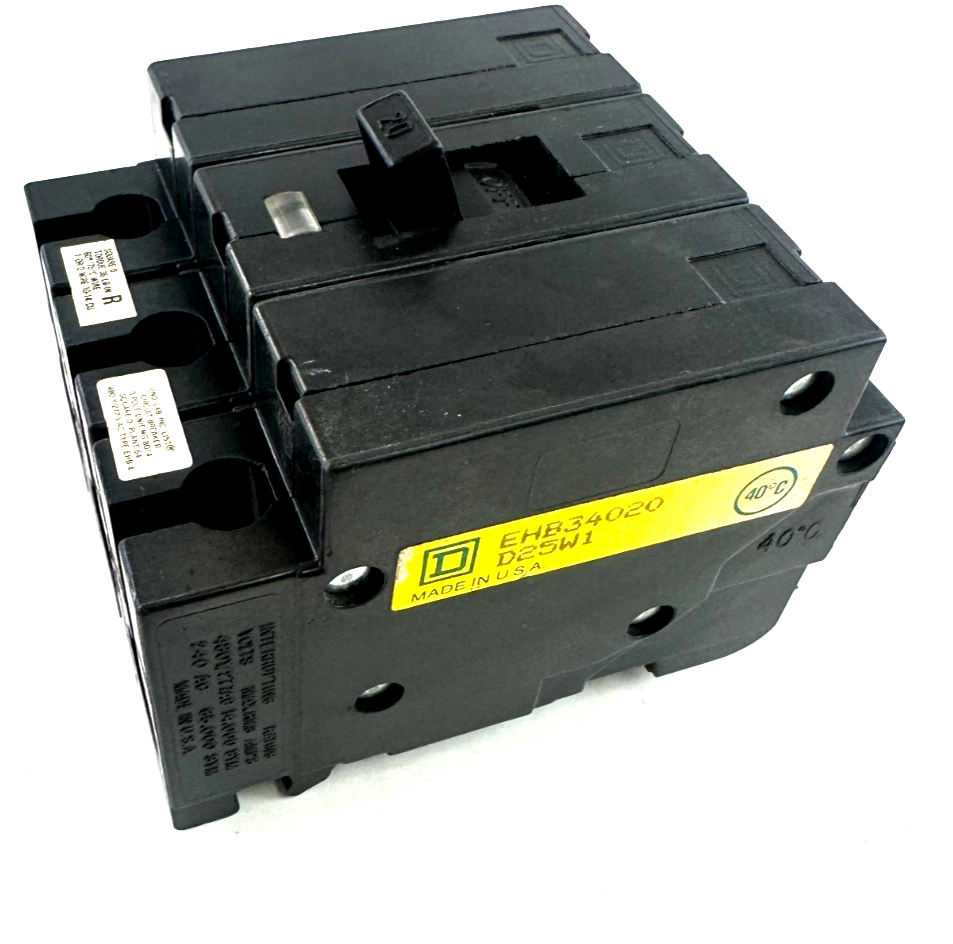

Square D EHB34020 20A 3 Pole 480Y/277V 14kAIC E-Frame Bolt-On Circuit Breaker

The Square D EHB34020 is a 20A, 3-pole molded case circuit breaker from the EHB Series, designed to provide reliable overload and short-circuit protection in compatible commercial and industrial electrical distribution systems. It features an E-Frame design, is rated for 480Y/277V AC, and provides thermal-magnetic protection with Long-Time and Instantaneous trip functions.

The breaker provides a 14 kAIC interrupting rating at 480Y/277V AC and 65 kAIC at 240V AC. It features bolt-on mounting, copper wire terminals, and VISI-TRIP trip indication. It is designed for use with compatible Square D NEHB panelboards and electrical distribution equipment.

Specifications

• Manufacturer: Schneider Electric / Square D

• Product Type: Molded Case Circuit Breaker

• Catalog No.: EHB34020

• Product Family: E-Frame Circuit Breakers

• Series: EHB

• Frame Type: E-Frame

• Current Rating: 20A

• Number of Poles: 3-Pole

• Phase: 3-Phase

• Voltage Rating: 480Y/277V AC

• Additional Voltage Rating: 240V AC

• Trip Technology: Thermal-Magnetic

• Trip Functions: Long-Time and Instantaneous (LI)

• Interrupting Rating: 14 kAIC at 480Y/277V AC

• Interrupting Rating: 65 kAIC at 240V AC

• Mounting Type: Bolt-On

• Wire Range: #14–10 AWG Copper

• Frequency: 50/60 Hz

• Trip Indication: VISI-TRIP

• Width: 3.00 Inches

• Height: 3.50 Inches

• Depth: 2.97 Inches

• Weight: 1.35 lbs

• Application: Commercial and Industrial Circuit Protection

• Protection: Overload and Short-Circuit Protection

• Certifications: UL Listed, CSA Certified

• Authenticity: Genuine Square D / Schneider Electric Product

Part Numbers & Identification

• Manufacturer Part Number (MPN): EHB34020

• Catalog Number: EHB34020

• Product Family: Square D E-Frame Circuit Breakers

• Series: EHB

• Brand: Square D

• Manufacturer: Schneider Electric

• Product Type: Molded Case Circuit Breaker

• Model: EHB34020

• Breaker Configuration: 3-Pole, 20A

• Frame Configuration: E-Frame

• UPC: 785901372387

• GTIN-14: 00785901372387

Compatibility

Designed for use with compatible Square D / Schneider Electric NEHB panelboards and electrical distribution equipment approved for EHB Series circuit breakers.

The EHB34020 is intended for 3-phase, 480Y/277V AC applications and provides thermal-magnetic overload and short-circuit protection. Its bolt-on mounting configuration and E-Frame design allow installation in compatible electrical distribution equipment.

Important: The EHB34020 is designed for legacy NEHB panelboards. Newer Square D EDB, EGB, and EJB breakers are not automatically direct replacements because panelboard mounting and compatibility requirements may differ.

Always verify the specific panelboard model, approved breaker type, voltage, pole configuration, interrupting rating, conductor size, and manufacturer requirements before installation.

Certifications

• UL Listed

• CSA Certified

• 20A Rated

• 3-Pole / 3-Phase

• 480Y/277V AC Rated

• 14 kAIC at 480Y/277V AC

• 65 kAIC at 240V AC

• Thermal-Magnetic Protection

• Long-Time and Instantaneous Trip Functions

• Bolt-On Mounting

• E-Frame Construction

• VISI-TRIP Trip Indication

• EHB Series

• Designed for Compatible Square D NEHB Panelboards

• Genuine Square D / Schneider Electric Product
