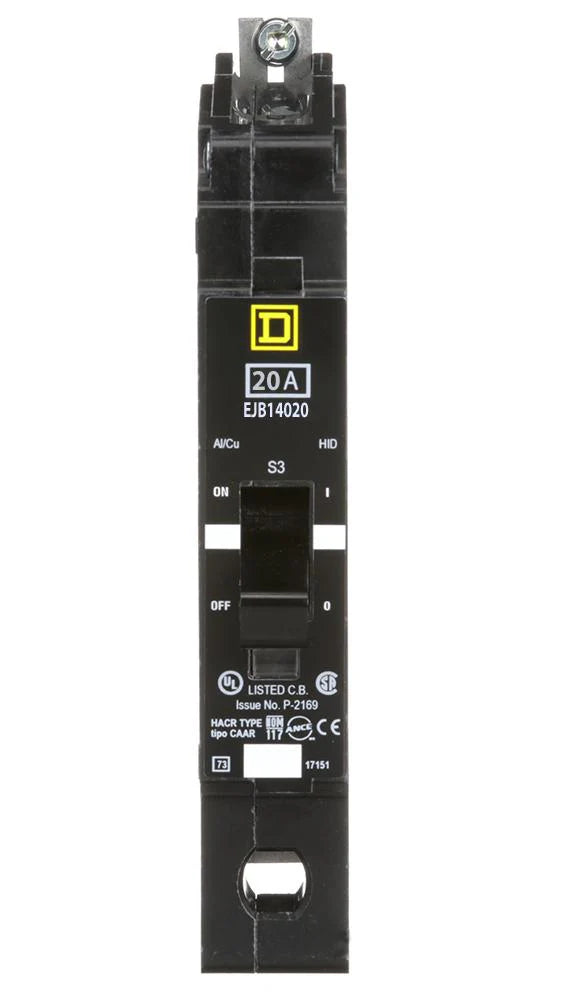

Square D EJB14020 Bolt-On Molded Case Circuit Breaker – 1 Pole – 20A – 277VAC – Thermal Magnetic
Couldn't load pickup availability
Ask an expert
The Square D EJB14020 is a high-interrupting capacity molded case circuit breaker designed for commercial and industrial electrical distribution systems. Manufactured by Schneider Electric, this 1-pole, 20A breaker provides dependable thermal-magnetic protection against overloads and short-circuit faults while maintaining compatibility with Square D NF panelboards.
As part of the EJB Series E-Frame product family, the EJB14020 features a bolt-on mounting design for secure installation and long-term reliability. Its high interrupting capacity makes it well suited for applications where elevated fault current levels are present, delivering up to 65kA interrupting capacity at 277VAC and 240VAC, and 100kA at 120VAC.
The breaker incorporates a thermal-magnetic trip unit with long-time and instantaneous protection functions, along with a visual trip indicator for quick fault identification. Designed for operation in 40°C environments, it is both HID-rated and HACR-rated, making it suitable for lighting and HVAC applications.
Specifications
- Brand: Square D
- Manufacturer: Schneider Electric
- Part Number: EJB14020
- Series: EJB Series
- Type: Molded Case Circuit Breaker
- Frame Type: E-Frame
- Configuration: 1 Pole
- Phase: 1 Phase
- Current Rating: 20A
- Voltage Rating: 277VAC
- Connection Type: Bolt-On
- Mounting Style: Bolt-On
- Protection Type: Thermal Magnetic
- Trip Function: LI – Long-Time and Instantaneous
- Product Destination: Square D NF Panelboards
Interrupting Ratings
- 65kA @ 277VAC
- 65kA @ 240VAC
- 100kA @ 120VAC
Dimensions
- Height: 5.66 in
- Width: 0.98 in
- Depth: 4.05 in
- Weight: 2 lbs
Construction Features
- E-Frame molded case circuit breaker design
- Thermal-magnetic trip unit for overload and short-circuit protection
- Long-time and instantaneous trip functions
- Bolt-on mounting configuration
- Visual trip indicator for quick status identification
- Aluminum lug terminals included
- Calibrated for 40°C operation
- Designed for NF panelboard installations
- HID-rated and HACR-rated construction
Electrical Characteristics
- Line Rated Current: 20A
- Maximum Operating Voltage: 277VAC
- Holding Current: 270A
- Trip Unit Rating: 875A
- Protection Type: Short-Circuit / Overload
Wire Range
- Aluminum Conductors: AWG 12–6
- Copper Conductors: AWG 14–6
Applications
- Commercial electrical distribution systems
- Industrial power distribution equipment
- HVAC equipment protection
- HID lighting circuits
- Branch circuit protection
- NF panelboard installations
Standards & Approvals
- UL Listed
- CSA Approved
- HID Rated
- HACR Rated
- Type Circuit Breakers
- Vendor Square D
- Brand Square D
