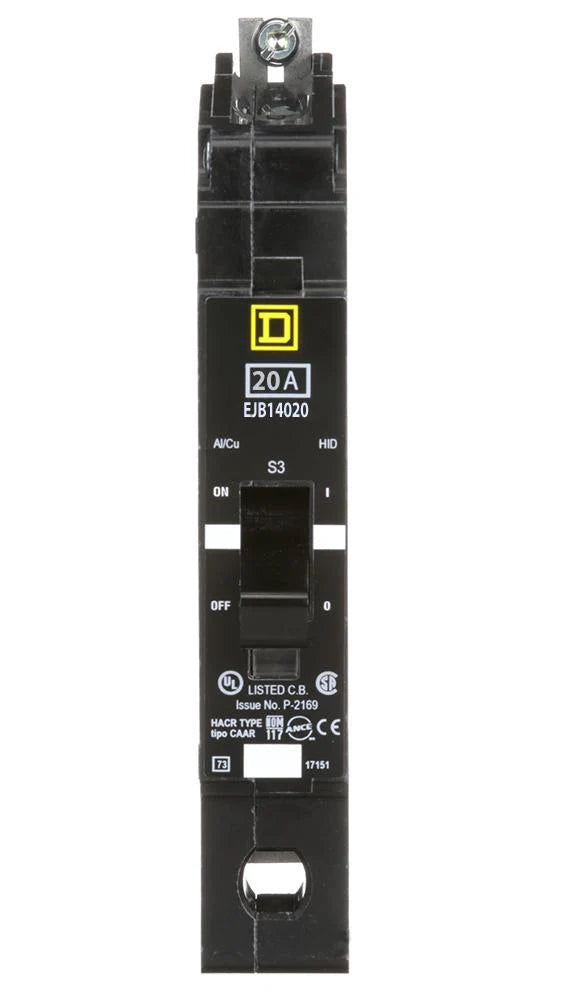

Square D EJB14020SA Molded Case Circuit Breaker – 1 Pole – 20A – Bolt-On – Thermal Magnetic – Shunt Trip

The Square D EJB14020SA is a high-interrupting capacity E-Frame molded case circuit breaker designed for commercial and industrial power distribution systems requiring remote tripping capability. Manufactured by Schneider Electric, this 1-pole, 20A breaker combines dependable thermal-magnetic protection with an integrated shunt trip for remote circuit operation.

The factory-installed shunt trip allows the breaker to be opened remotely, making it well suited for emergency stop systems, safety interlocks, building automation systems, and other applications requiring remote power disconnection. Designed for secure bolt-on installation, the EJB14020SA is compatible with Square D NF panelboards and accommodates both copper and aluminum conductors.

With interrupting ratings up to 100kA at 120VAC and 65kA at 240VAC and 277VAC, this breaker delivers exceptional fault-clearing performance in demanding electrical environments. The breaker also features a Visi-Trip visual indicator for rapid identification of tripped circuits, reducing troubleshooting time and improving maintenance efficiency.

Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Part Number: EJB14020SA
• Series: EJB Series
• Type: Molded Case Circuit Breaker (E-Frame)
• Configuration: 1 Pole
• Phase: 1 Phase
• Current Rating: 20A
• Voltage Rating: 120VAC, 240VAC, 277VAC
• Mounting Style: Bolt-On
• Terminal Type: Lugs
• Protection Type: Thermal Magnetic
• Trip Function: LI – Long-Time and Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Application: NF Panelboards

Interrupting Ratings

• 100kA @ 120VAC
• 65kA @ 240VAC
• 65kA @ 277VAC

Electrical & Mechanical Features

• Factory-installed shunt trip for remote circuit operation
• Thermal-magnetic overload and short-circuit protection
• Long-time and instantaneous trip functions
• Fixed thermal and fixed magnetic trip characteristics
• Bolt-on mounting for NF panelboards
• Visi-Trip visual trip indicator
• Suitable for emergency shutdown and automation systems
• HACR rated for HVAC applications
• HID rated for lighting applications
• SWD rated for switching duty applications

Wire Range

• Copper: AWG 14–6
• Aluminum: AWG 12–6
• Maximum wire size: 6 AWG
• Minimum wire size: AWG 14 Copper / AWG 12 Aluminum

Available Options

• Auxiliary Switch
• Alarm Switch
• Padlock Attachment
• Lug Kits

Accessories

• Factory-installed Shunt Trip

Standards & Approvals

• UL 489 Listed
• CSA C22.2 No. 5
• NEMA AB 1 Compliant
• NFPA 70 Compliant
• CSA Approved
• cULus Listed
• HACR Rated
• HID Rated
• NOM Approved
• SWD Rated
• UL Listed
• Authentic Square D / Schneider Electric product
• Manufactured to EJB Series specifications for NF panelboard applications

Operating Conditions

• Ambient Temperature Rating: 40°C
• Designed for commercial and industrial electrical distribution systems
• Ideal for emergency shutdown, safety interlock, and remote-control applications
