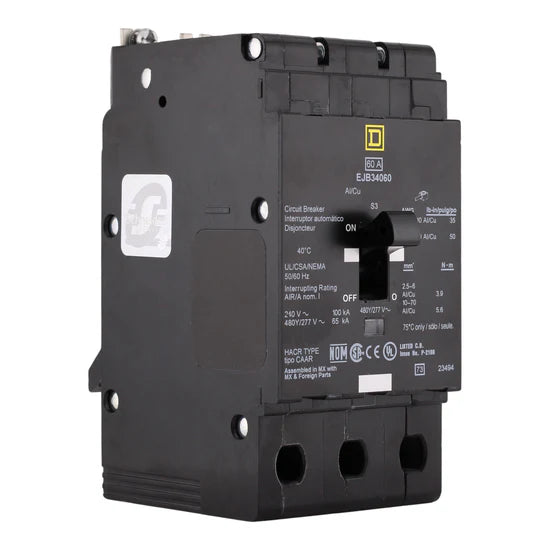

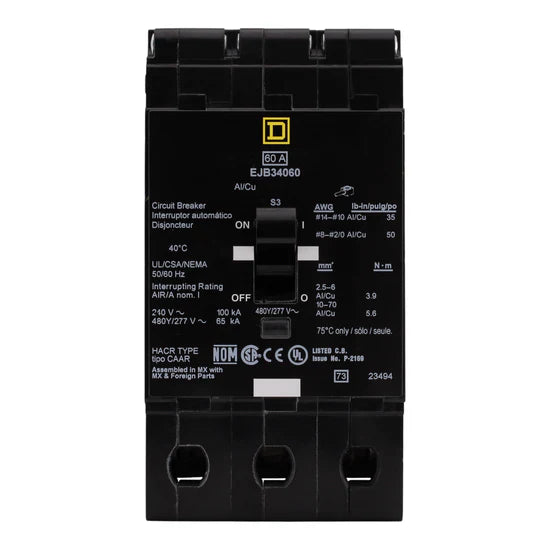

Square D EJB34060 60A 3-Pole Thermal-Magnetic – Bolt-On – 480Y/277V

The Square D EJB34060 is a 60 Amp, 3-Pole thermal-magnetic circuit breaker designed for E-Frame NF lighting panelboards. Featuring bolt-on mounting, aluminum lugs, and a 100kAIC interrupt rating at 120/240VAC, it provides reliable overload and short-circuit protection for commercial and industrial electrical circuits.

Voltage and Rating

• Amperage: 60 Amps
• Voltage: 480Y/277 Volts AC
• Interrupt Rating: 100 kAIC @ 120/240VAC, 65 kAIC @ 480Y/277VAC

Key Specifications

• Breaker Type: Thermal-Magnetic Circuit Breaker
• Poles: 3-Pole
• Mounting Mode: Bolt-On
• Connections Terminals: Aluminum lugs
• Wire Size: #14–2/0 AWG Cu, #12–2/0 AWG Al
• Tightening Torque: 34.5 lb-in (#14–10 AWG), 49.6 lb-in (#8–2/0 AWG)
• Holding Current: 630 Amps
• Trip Current: 1800 Amps

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: EJB34060
• UPC: 785901335245

• Dimensions:

  • Height: 5.66 in
  • Width: 2.94 in
  • Depth: 4.05 in
  • Weight: 4 lbs

• Certifications: UL Listed, CSA Certified, HACR Rated
