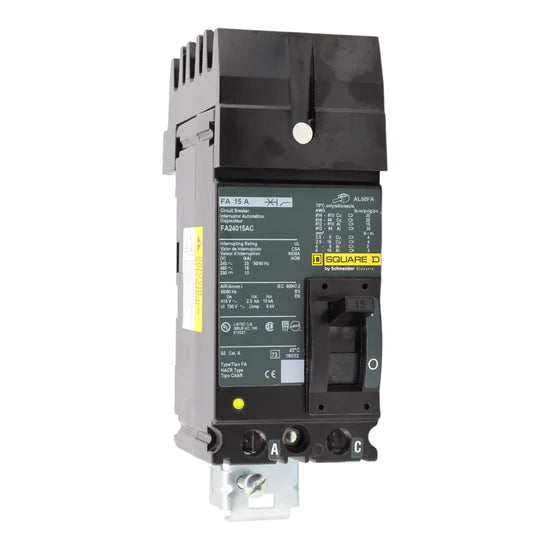

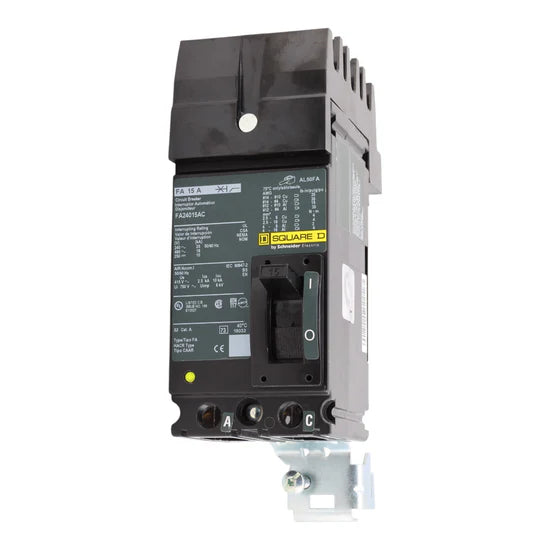

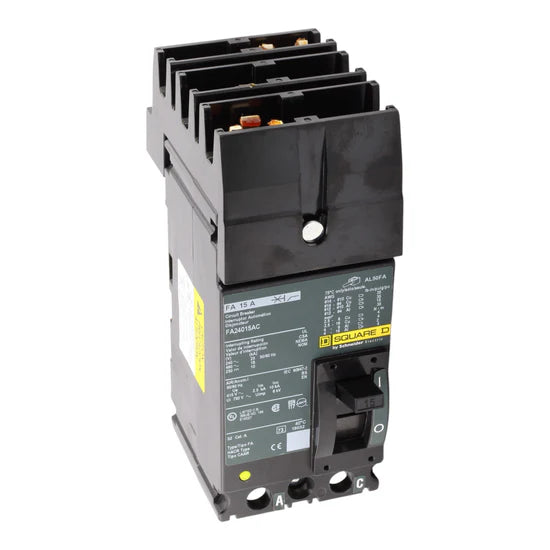

Square D FA24015AC 15A 2-Pole Thermal-Magnetic – I-Line – 480V

The Square D FA24015AC is a 15 Amp, 2-Pole thermal-magnetic circuit breaker designed for I-Line panelboards and switchboards. It provides reliable protection for 480V commercial and industrial circuits, with a 14 kAIC interrupt rating for enhanced safety and compatibility.

Electrical Specifications

• Breaker Type: Thermal-Magnetic
• Amperage: 15 Amps
• Poles: 2-Pole
• Voltage: 480 Volts AC
• Interrupt Rating: 14 kAIC
• Phase: AC

Mechanical & Mounting Specifications

• Mounting Mode: I-Line
• Connection Terminals: Lugs (load), I-Line connection (line)
• Wire Size Range: #14–4 AWG Cu/Al
• Tightening Torque: 40 lb-in

Certifications

• UL Listed
• CSA Certified
• HACR Rated

Physical Dimensions

• • Height: 6.4 in
  • Width: 3.0 in
  • Depth: 4.13 in
  • Weight: 2.2 lbs

Key Features

• Reliable 15A, 2-Pole thermal-magnetic protection for 480V circuits
• Designed for I-Line panelboards and switchboards
• 14 kAIC interrupt rating for enhanced safety
• Lugs for secure load and line connections
• UL, CSA listed and HACR rated for compliance
