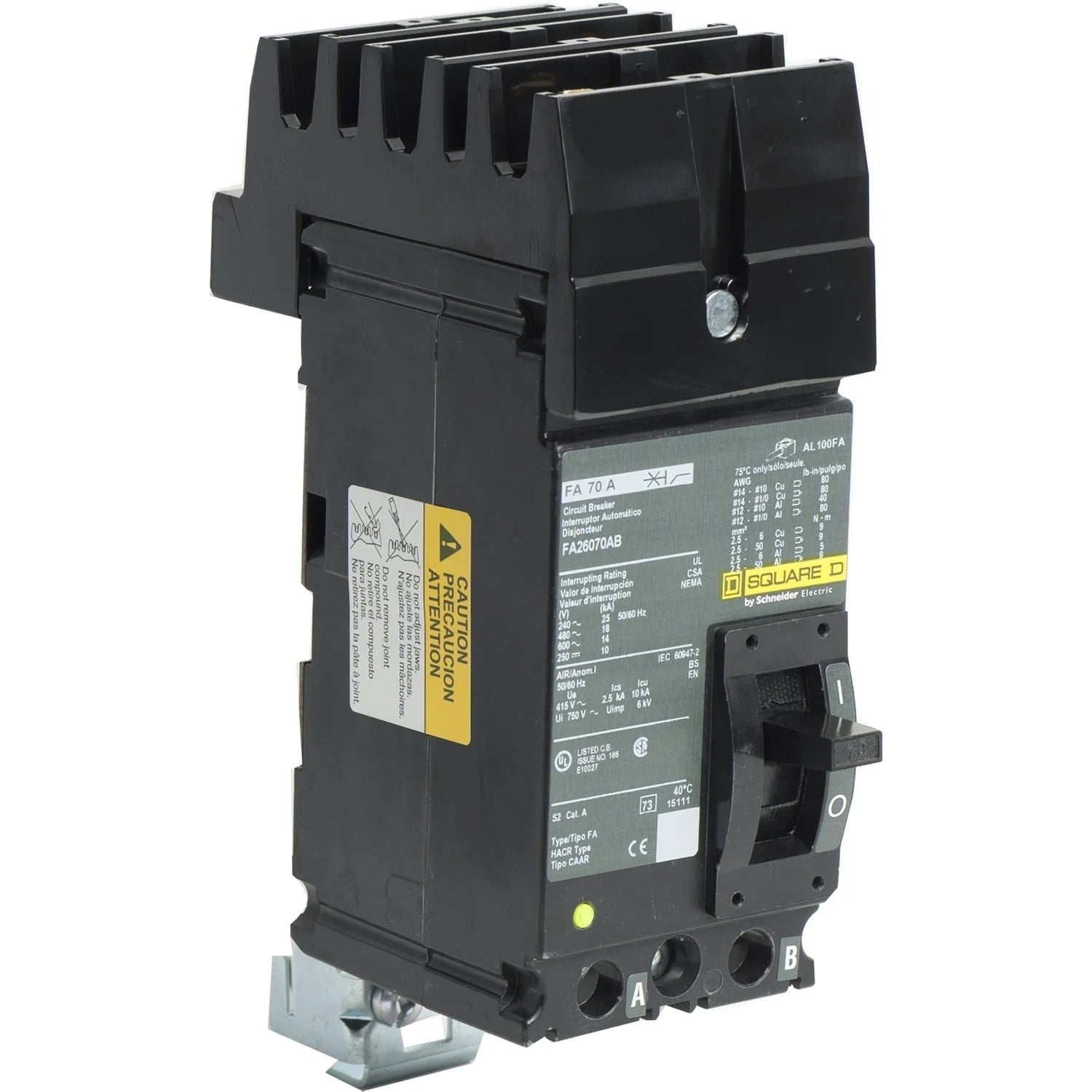

Square D FA26070AB Molded Case Circuit Breaker – 2 Pole – 70A – I-Line Plug-In – F Frame – Thermal Magnetic

In stock
SKU: FA26070AB GTIN/UPC: 785901042686
$628.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D FA26070AB is an F-Frame molded case circuit breaker designed for industrial and commercial power distribution systems requiring reliable overcurrent protection in I-Line panelboards. Manufactured by Schneider Electric, this 2-pole, 70A breaker provides dependable thermal-magnetic protection with long-time and instantaneous trip functions.

Built on the I-Line plug-in connection system, the FA26070AB allows for fast installation and secure mounting in compatible switchboards and panelboards. Its robust construction and high-voltage rating make it suitable for demanding electrical distribution environments where reliability and ease of maintenance are critical.

With an interrupting capacity of 18kA at 480V, this breaker is engineered to safely clear fault conditions while protecting downstream equipment and electrical infrastructure.

Specifications

  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Part Number: FA26070AB
  • Series / Family: I-Line
  • Frame Type: F Frame
  • Configuration: 2 Pole
  • Phase: 1 Phase
  • Current Rating: 70A
  • Voltage Rating: 600V
  • Mounting Style: I-Line Plug-In (I-Line Style)
  • Connection Type: Plug-In
  • Protection Type: Thermal Magnetic
  • Trip Function: Long-Time and Instantaneous
  • Application Category: Molded Case Circuit Breaker

Interrupting Ratings

  • 18kA @ 480V

Electrical Characteristics

  • Line Rated Current: 70A
  • Voltage Class: 600V system compatibility
  • Protection: Short-circuit and overload protection via thermal-magnetic trip unit

Construction Features

  • I-Line plug-in design for fast installation and removal
  • F-Frame molded case construction
  • Long-time and instantaneous trip functions
  • Secure bus connection system for industrial panels
  • CSA approved construction
  • Designed for switchboards and I-Line panelboard systems

Applications

  • Industrial power distribution systems
  • Commercial electrical switchboards
  • Motor control centers
  • Panelboard feeder circuits
  • General branch circuit protection

Standards & Approvals

  • CSA Certified
  • Manufactured to Square D / Schneider Electric I-Line specifications
  • Suitable for industrial and commercial electrical installations
  • Type Thermal Magnetic
  • Vendor Square D
  • Brand Square D
