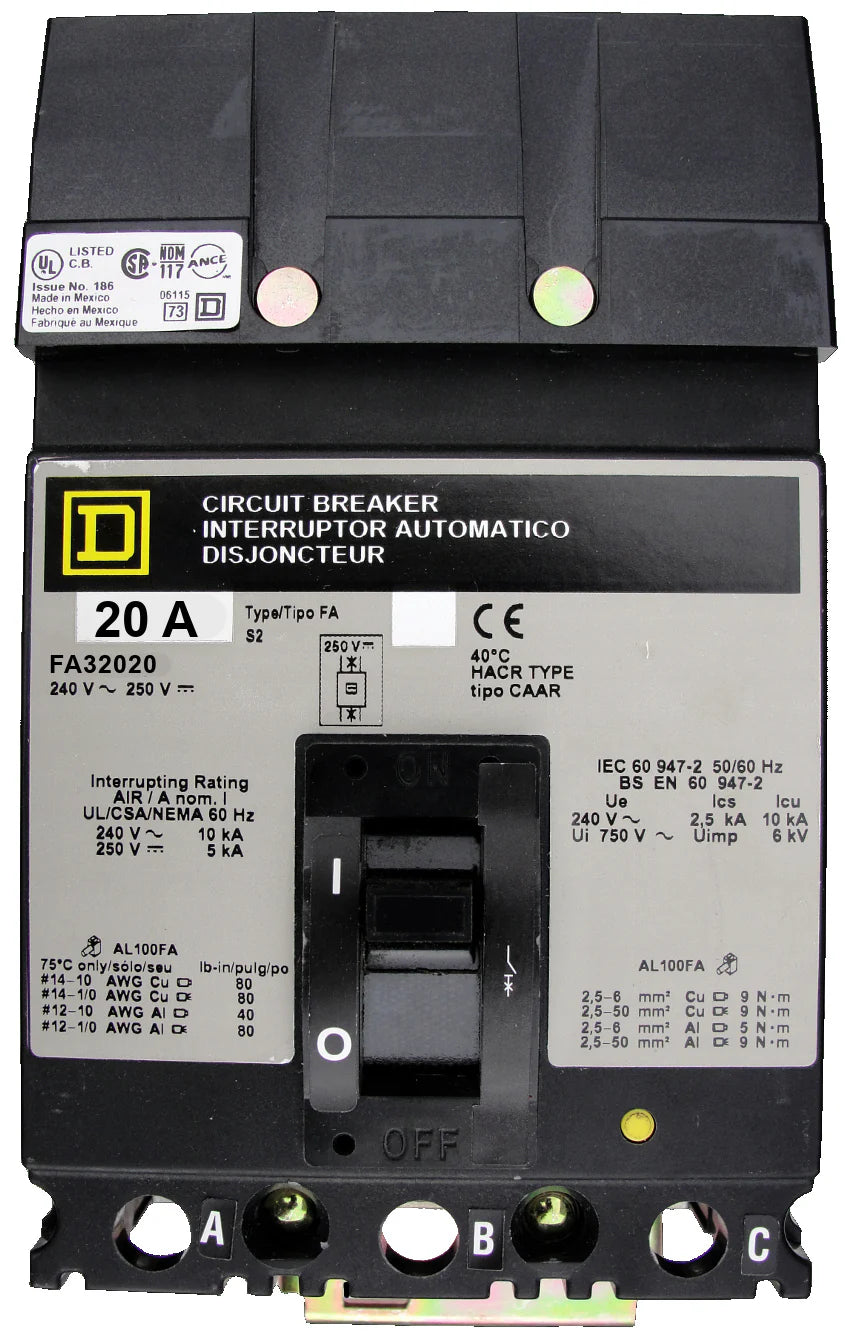

Square D FA32020 20A 3 Pole Molded Case Circuit Breaker – Plug In – 240VAC

The FA32020 by Square D is an FA-frame molded case circuit breaker engineered for dependable circuit protection in commercial and industrial electrical systems. Featuring a thermal magnetic non-interchangeable trip unit, this breaker delivers reliable overload and short-circuit protection. Its plug-in I-Line configuration allows convenient installation and maintenance, making it suitable for a wide range of power distribution applications.

Product Specifications

• Brand: Square D
• Model Number: FA32020
• Product Type: Molded Case Circuit Breaker
• Frame Style: FA (I-Line) Frame
• Trip Unit Type: Thermal Magnetic Non-interchangeable
• Connection Type: Plug In
• Mount Type: I-Line Plug-In Mount
• Number of Poles: 3 Pole
• Amperage Rating: 20 Ampere
• Maximum Voltage Rating: 240 VAC
• Frequency: 50/60 Hz
• Standard Lug Type: Load End Terminals
• Operating Temperature Reference: 40°C
• Warranty: One Year

Technical Specifications

• Thermal magnetic trip mechanism for overload and short-circuit protection
• Non-interchangeable trip unit construction
• FA-frame molded case breaker design
• I-Line plug-in mounting configuration
• Suitable for commercial and industrial power distribution systems
• Load end terminals included as standard
• Durable molded case housing for long-term operation
• Compact design for efficient panel integration

Voltage and Ratings

• 10 kA Interrupting Capacity @ 240 VAC
• 5 kA Interrupting Capacity @ 250 VDC
• Maximum Voltage: 240 VAC
• Current Rating: 20 Ampere
• 3 Pole Configuration

Product Data

• Manufacturer: Square D
• Model: FA32020
• Frame Type: FA (I-Line) Frame
• Connection: Plug In
• Terminal Type: Load End Standard Lugs
• Product Category: Molded Case Circuit Breaker
• Warranty Coverage: 1 Year In-House Warranty
• Application: Electrical Power Distribution and Circuit Protection

Important Note

The product image shown is for identification purposes only and may represent a base model. Accessories ordered with the breaker can be installed according to your specified configuration at no additional cost when details are provided in the order comments during checkout. The included one-year in-house warranty covers standard shipping, repair services, replacement parts, and labor required for recertification under normal operating conditions. Damage caused by misuse, improper installation, or normal wear is not covered under warranty.
