Square D FA32080 80A 3 Pole Molded Case Circuit Breaker – I-Line Mount – 240VAC

The FA32080 by Square D is a durable molded case circuit breaker designed to provide dependable circuit protection in commercial and industrial electrical systems. Featuring an FA frame style and thermal magnetic non-interchangeable trip unit, this breaker delivers effective overload and short-circuit protection for demanding applications. Its plug-in I-Line mounting configuration allows for simplified installation and maintenance, while the rugged molded case construction ensures long-term operational reliability. Rated at 80 amperes with a 3-pole configuration, the FA32080 is engineered for consistent performance and safe electrical distribution.

Product Specifications

• Brand: Square D
• Model: FA32080
• Product Type: Molded Case Circuit Breaker
• Frame Style: FA (I-Line)
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Mount Type: Plug-In / I-Line
• Amperage Rating: 80 Amp
• Number of Poles: 3 Pole
• Frequency: 50/60 Hz
• Terminal Type: Standard Load End Lugs
• Frame Type: F Frame
• Condition Support: New Surplus & Certified Reconditioned
• Warranty: 1 Year

Technical Specifications

• Thermal magnetic trip mechanism for overload and short-circuit protection
• Non-interchangeable trip unit with fixed protection calibration
• Heavy-duty molded case construction for industrial-grade performance
• Plug-in I-Line mounting design for efficient installation and servicing
• Standard load-end lug terminals for secure electrical connections
• Rated for operation at 40°C ambient temperature
• Suitable for commercial and industrial power distribution systems

Voltage and Ratings

• Maximum Voltage: 240VAC
• DC Voltage Rating: 250VDC
• Interrupting Capacity:
  • 10kA @ 240VAC
  • 5kA @ 250VDC
• Current Rating: 80 Ampere
• Pole Configuration: 3 Pole

Product Data

• Manufacturer: Square D
• Model Number: FA32080
• Connection Type: Plug In
• Lug Type: Load End Standard
• Interrupting Rating: 10kA / 5kA
• Mounting Style: I-Line
• Application: Circuit Protection and Electrical Distribution
• Warranty Coverage: One Year In-House Warranty
• Warranty Includes: Standard shipping, repairs, labor, and replacement parts required for recertification

Important Note

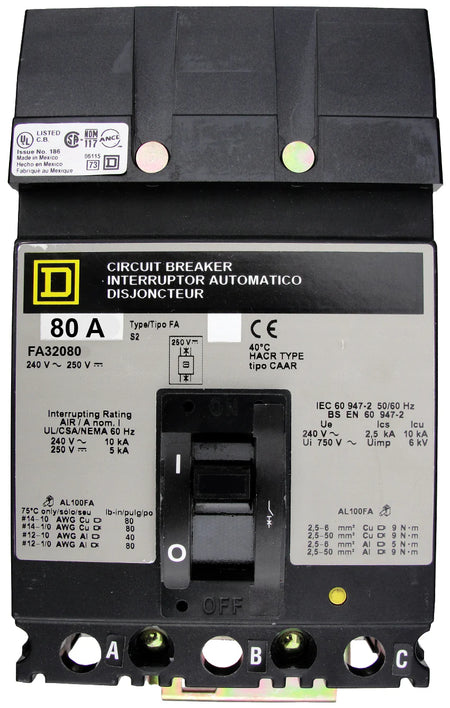

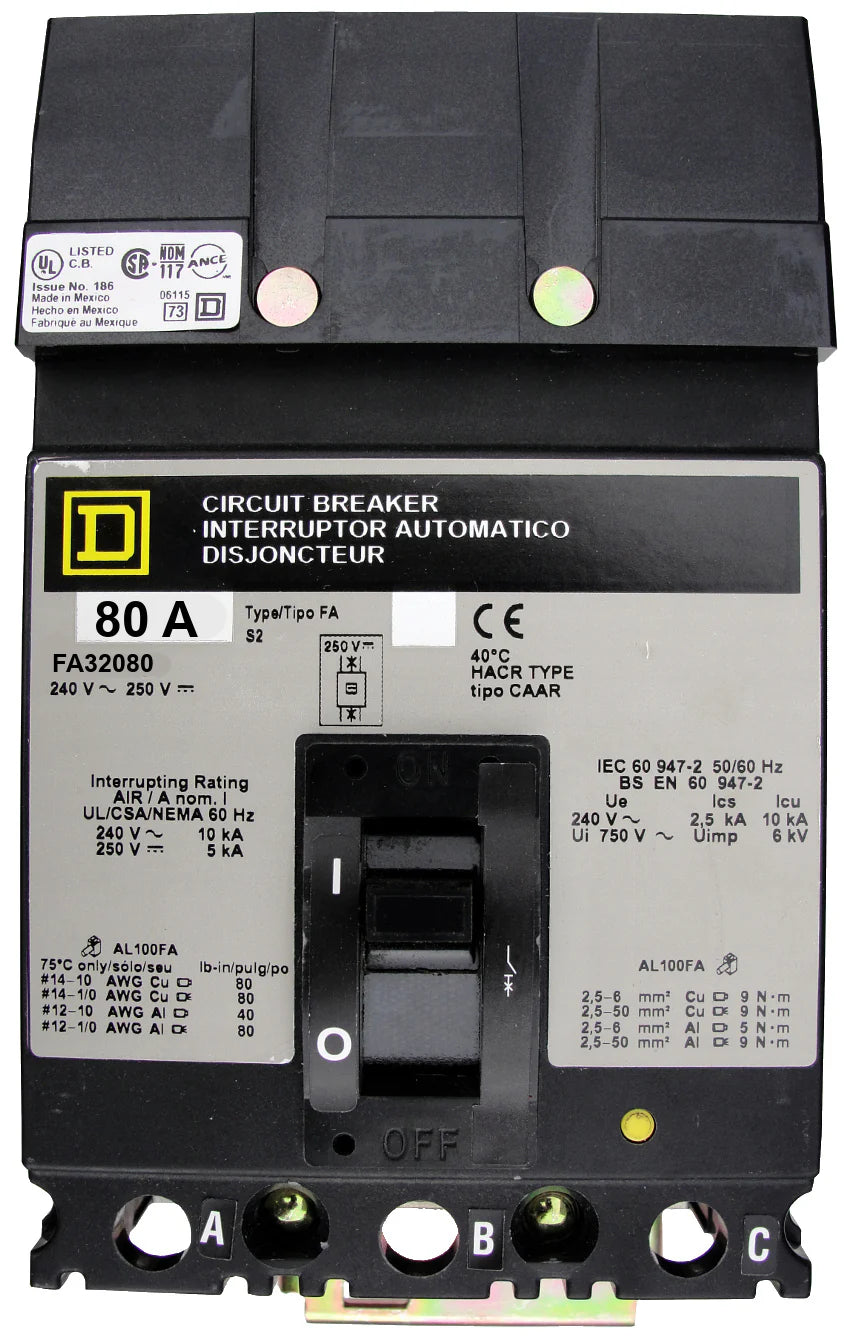

The product image shown is a representation of the base model and is intended for identification purposes only. Accessories ordered with the breaker can be professionally installed at no additional cost when installation requirements are included during checkout. The one-year in-house warranty covers repairs, labor, parts, and standard shipping associated with recertification, but does not include damage caused by misuse, mishandling, or normal wear and tear.
