Square D FA34025 25A 3 Pole Molded Case Circuit Breaker – I-Line Mount – 480VAC

In stock
SKU: FA34025-NS GTIN/UPC: 785901529606
$999.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The FA34025 by Square D is a molded case circuit breaker designed to deliver reliable protection for industrial and commercial electrical distribution systems. Built with an FA I-Line frame style and a thermal magnetic non-interchangeable trip unit, this breaker provides consistent protection against overloads and short-circuit conditions. Its plug-in I-Line mounting configuration ensures fast installation and easy replacement, while the durable molded case construction supports long-term operational stability. With a 25-amp rating and 3-pole configuration, it is suitable for three-phase circuit protection in demanding environments.

Product Specifications

  • Brand: Square D
  • Model: FA34025
  • Product Type: Molded Case Circuit Breaker
  • Frame Style: FA (I-Line)
  • Frame Type: F
  • Trip Unit Type: Thermal Magnetic Non-Interchangeable
  • Mounting Type: Plug-In / I-Line
  • Amperage Rating: 25 Amp
  • Number of Poles: 3 Pole
  • Frequency: 50/60 Hz
  • Terminal Type: Load End Standard
  • Voltage Maximum: 480VAC
  • Warranty: 1 Year
  • Manufacturer: Square D

Technical Specifications

  • Thermal magnetic trip mechanism for overload and short-circuit protection
  • Non-interchangeable trip unit with factory-calibrated settings
  • Heavy-duty molded case construction for industrial durability
  • Plug-in I-Line mounting system for quick installation and servicing
  • Designed for three-phase electrical distribution systems
  • Standard load-end terminals for secure electrical connection
  • Rated for operation at 40°C ambient temperature

Voltage and Ratings

  • Maximum Voltage: 480VAC
  • DC Voltage Rating: 250VDC
  • Interrupting Capacity:
    • 25kA @ 240 VAC
    • 18kA @ 480 VAC
    • 10kA @ 250 VDC
  • Current Rating: 25 Ampere
  • Pole Configuration: 3 Pole

Product Data

  • Manufacturer: Square D
  • Model Number: FA34025
  • Connection Type: Plug In
  • Frame Type: F Frame
  • Frame Style: FA (I-Line)
  • Lug Type: Load End Standard
  • Interrupting Rating: 25kA / 18kA / 10kA
  • Application: Industrial and commercial circuit protection
  • Warranty Coverage: One Year In-House Warranty
  • Warranty Includes: Repairs, labor, parts, and standard shipping for recertification

Important Note

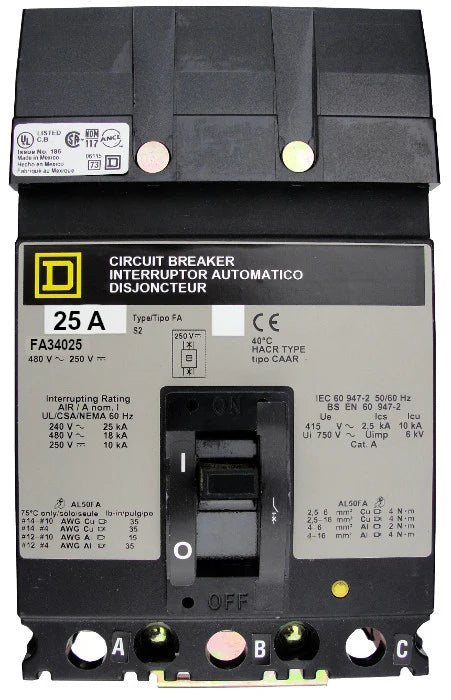

The product image shown represents a base model and is intended for identification purposes only. Accessories purchased with the breaker can be installed at no additional cost when configuration details are provided during checkout. The one-year in-house warranty covers repair, replacement parts, labor, and standard shipping required for recertification, excluding damage caused by misuse, improper handling, or normal wear and tear.
