Square D FA34035 35A 3 Pole Molded Case Circuit Breaker – I-Line Mount – 480VAC

The FA34035 by Square D is a molded case circuit breaker designed for dependable circuit protection in commercial and industrial power distribution systems. Built on an FA I-Line frame style with a thermal magnetic non-interchangeable trip unit, this breaker delivers reliable protection against overload and short-circuit faults. Its plug-in I-Line mounting design ensures fast installation and straightforward replacement, while the rugged molded case construction provides long-term durability and operational stability. With a 35-amp rating and 3-pole configuration, it is suitable for three-phase electrical systems requiring consistent protection performance.

Product Specifications

• Brand: Square D
• Model: FA34035
• Product Type: Molded Case Circuit Breaker
• Frame Style: FA (I-Line)
• Frame Type: F
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Mounting Type: Plug-In / I-Line
• Amperage Rating: 35 Amp
• Number of Poles: 3 Pole
• Frequency: 50/60 Hz
• Terminal Type: Load End Standard
• Voltage Maximum: 480VAC
• Warranty: 1 Year
• Manufacturer: Square D

Technical Specifications

• Thermal magnetic trip system for overload and short-circuit protection
• Non-interchangeable trip unit with factory-set calibration
• Heavy-duty molded case construction for industrial-grade reliability
• Plug-in I-Line mounting system for efficient installation and maintenance
• Designed for three-phase electrical distribution applications
• Standard load-end termination for secure wiring connections
• Rated for operation at 40°C ambient temperature

Voltage and Ratings

• Maximum Voltage: 480VAC
• DC Voltage Rating: 250VDC
• Interrupting Capacity Ratings:
  • 25kA @ 240 VAC
  • 18kA @ 480 VAC
  • 10kA @ 250 VDC
• Current Rating: 35 Ampere
• Pole Configuration: 3 Pole

Product Data

• Manufacturer: Square D
• Model Number: FA34035
• Connection Type: Plug In
• Frame Style: FA (I-Line)
• Frame Type: F
• Lug Type: Load End Standard
• Interrupting Rating: 25kA / 18kA / 10kA
• Application: Industrial and commercial electrical protection systems
• Warranty Coverage: One Year In-House Warranty
• Warranty Includes: Repairs, parts, labor, and standard shipping required for recertification

Important Note

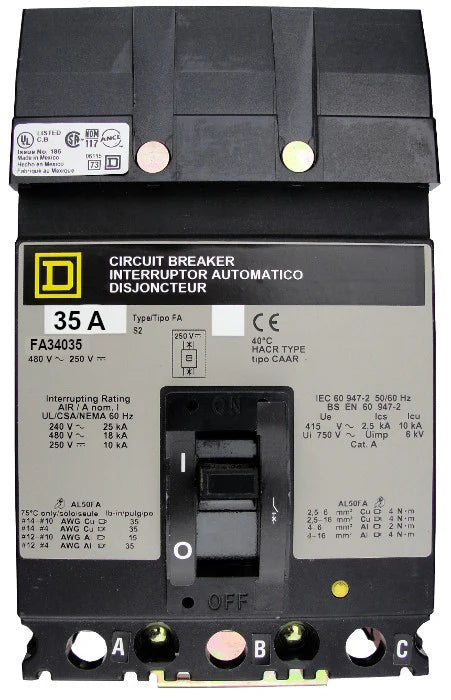

The product image shown represents a base model and is for identification purposes only. Accessories purchased with the breaker can be installed at no additional cost when configuration details are provided during checkout. The one-year in-house warranty covers repairs, parts, labor, and standard shipping required for recertification, excluding damage caused by misuse, improper handling, or normal wear and tear.
