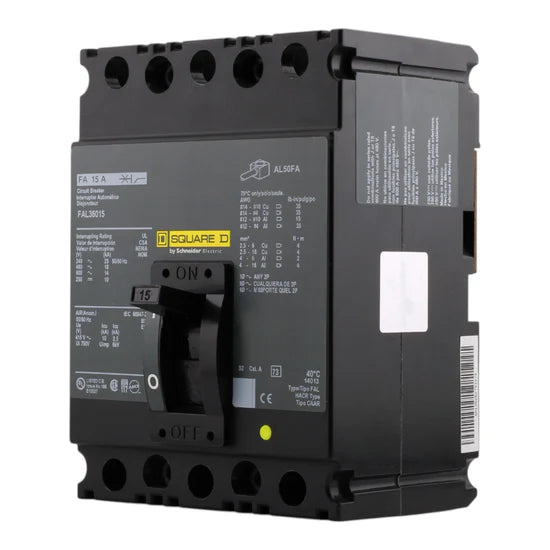

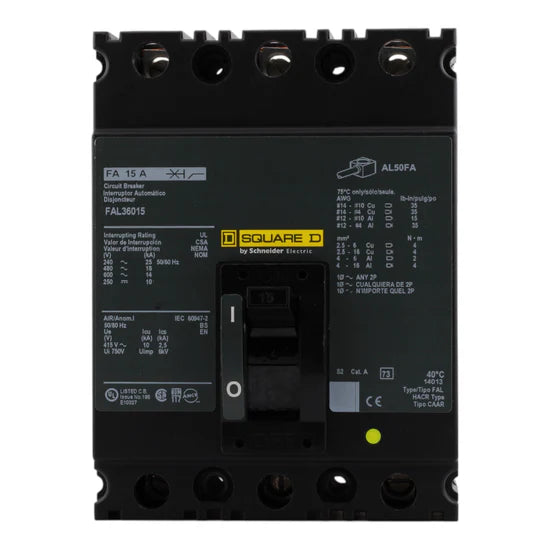

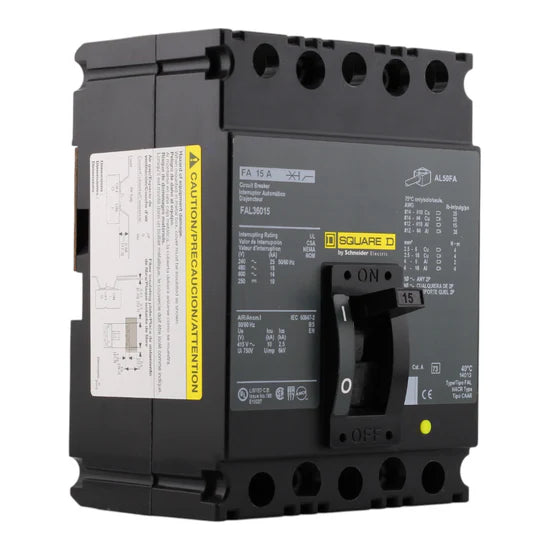

Square D FAL36015 15A 3-Pole Thermal-Magnetic – Unit Mount – 600V

The Square D FAL36015 is a 15 Amp, 3-Pole thermal-magnetic circuit breaker designed for unit mount and I-Line applications. It provides reliable protection for 600V commercial and industrial circuits. With a 14 kA interrupt rating, it ensures safe and durable performance in demanding electrical systems.

Electrical Specifications

• Breaker Type: Thermal-Magnetic
• Amperage: 15 Amps
• Poles: 3-Pole
• Voltage: 600 Volts AC
• Interrupt Rating: 14 kAIC

Mechanical & Mounting Specifications

• Mounting Mode: Unit Mount

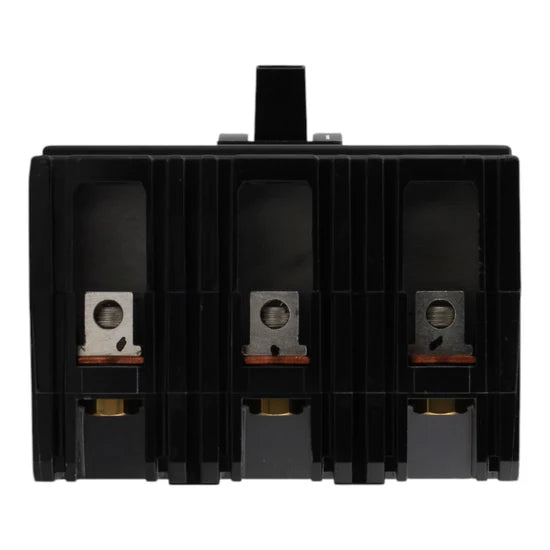

• Connection Terminals: Lugs (load and line)
• Wire Size Range: #14–1 AWG Cu/Al
• Tightening Torque: 45 lb-in

Certifications

• UL Listed
• CSA Certified
• HACR Rated

Physical Dimensions

• • Height: 6.4 in
  • Width: 4.5 in
  • Depth: 4.13 in
  • Weight: 4.760 lbs

Key Features

• Compatible with Square D I-Line and unit mount systems
• Thermal-magnetic protection for reliable circuit safety
• 14 kA interrupt rating for enhanced safety and performance
• Ideal for commercial and industrial 600V circuits
• UL, CSA listed and HACR rated
