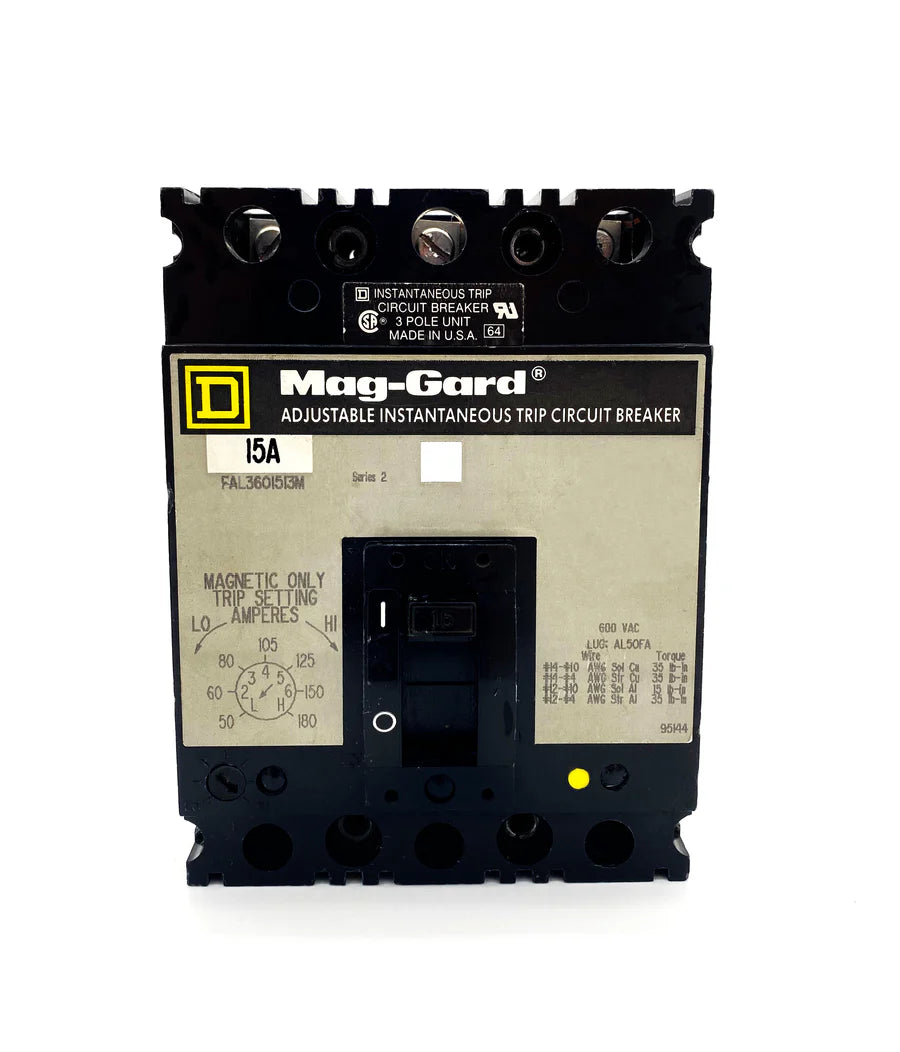

The Square D FAL3601513M is a molded case circuit breaker specifically designed for motor circuit protection in industrial and commercial electrical systems. Featuring a magnetic-only non-interchangeable instantaneous trip unit, this breaker provides fast-response short-circuit protection for motors and associated equipment without thermal overload protection. Its FAL frame construction combined with a bolt-on mounting configuration ensures secure installation, rugged durability, and reliable long-term performance in demanding environments. Rated for applications up to 600V, the FAL3601513M is ideal for motor control centers, machinery protection systems, and industrial power distribution applications requiring rapid fault interruption.

Product Specifications

• Brand: Square D
• Model: FAL3601513M
• Product Type: Molded Case Circuit Breaker (MCCB)
• Frame Type: FAL / F Frame
• Rated Current: 15 Ampere
• Number of Poles: 3 Pole
• Trip Unit Type: Magnetic Only Non-Interchangeable Instantaneous Trip
• Protection Type: Motor Circuit Protection
• Mounting Type: Bolt On
• Operating Temperature Reference: 40°C
• Trip Setting: 50–180
• Terminal Type: Line and Load End Standard
• Application: Motor Protection and Industrial Power Distribution

Technical Specifications

• Maximum Voltage Rating: 600VAC
• Connection Type: Bolt-On Connection
• Instantaneous Magnetic Protection: Yes
• Thermal Overload Protection: No
• Frame Construction: Molded Case Design
• Pole Configuration: Three Pole
• Trip Mechanism: Instantaneous Magnetic Trip Only
• Standard Compliance: Industrial Circuit Protection Standards

Voltage and Ratings

• Rated Operational Voltage: Up to 600VAC
• Maximum Voltage Capacity: 600VAC
• Current Rating: 15A
• Pole Configuration: 3 Pole
• Trip Setting Range: 50–180 Instantaneous Trip

Product Data

• Manufacturer: Square D
• Frame Series: FAL Frame
• Product Condition Support: New Surplus & Certified Reconditioned
• Warranty: 1 Year In-House Warranty
• Installation Type: Bolt-On Mounting
• Terminal Configuration: Line and Load End Standard
• Product Application: Motor Circuit and Short-Circuit Protection

Important Note

Product images are intended for identification purposes only and may represent a standard base model configuration. Accessories purchased together with the breaker can be professionally installed at no additional cost when detailed configuration information is provided during checkout. Installation, maintenance, and servicing should only be performed by qualified electrical personnel in accordance with applicable electrical codes and manufacturer recommendations. The included one-year warranty covers repairs, labor, replacement parts, and standard shipping associated with recertification, excluding damage caused by misuse, improper installation, or normal operational wear and tear.
