Square D

Square D FAL3605014M 50A 3 Pole Magnetic Only Circuit Breaker – Bolt On – 600V

In stock
SKU: FAL3605014M-NS
$1,799.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D FAL3605014M is a molded case circuit breaker designed for reliable motor circuit protection in industrial and commercial electrical systems. Featuring a magnetic-only non-interchangeable instantaneous trip unit, this breaker delivers rapid short-circuit protection for motors and connected electrical equipment without thermal overload functionality. Its FAL frame construction and bolt-on mounting configuration provide secure installation, rugged durability, and dependable long-term performance in demanding operating environments. Rated for systems up to 600V, the FAL3605014M is ideal for motor control centers, industrial machinery, and power distribution systems requiring fast fault interruption and dependable protection.

Product Specifications

  • Brand: Square D
  • Model: FAL3605014M
  • Product Type: Molded Case Circuit Breaker (MCCB)
  • Frame Type: FAL / F Frame
  • Rated Current: 50 Ampere
  • Number of Poles: 3 Pole
  • Trip Unit Type: Magnetic Only Non-Interchangeable Instantaneous Trip
  • Protection Type: Motor Circuit Protection
  • Mounting Type: Bolt On
  • Operating Temperature Reference: 40°C
  • Terminal Type: Line and Load End Standard
  • Application: Motor Protection and Industrial Power Distribution

Technical Specifications

  • Maximum Voltage Rating: 600VAC
  • Connection Type: Bolt-On Connection
  • Instantaneous Magnetic Protection: Yes
  • Thermal Overload Protection: No
  • Frame Construction: Molded Case Design
  • Pole Configuration: Three Pole
  • Trip Mechanism: Instantaneous Magnetic Trip Only
  • Standard Compliance: Industrial Circuit Protection Standards

Voltage and Ratings

  • Rated Operational Voltage: Up to 600VAC
  • Maximum Voltage Capacity: 600VAC
  • Current Rating: 50A
  • Pole Configuration: 3 Pole

Product Data

  • Manufacturer: Square D
  • Frame Series: FAL Frame
  • Product Condition Support: New Surplus & Certified Reconditioned
  • Warranty: 1 Year In-House Warranty
  • Installation Type: Bolt-On Mounting
  • Terminal Configuration: Line and Load End Standard
  • Product Application: Motor Circuit and Short-Circuit Protection

Important Note

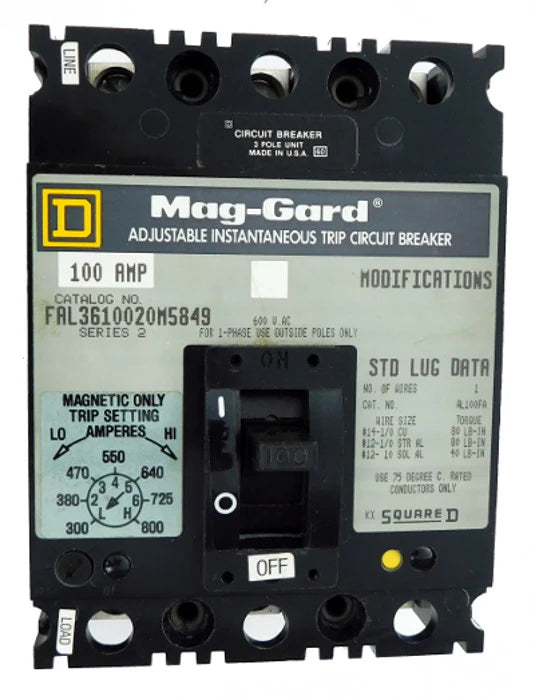

Product images are intended for identification purposes only and may represent a standard base model configuration. Accessories purchased together with the breaker can be professionally installed at no additional cost when complete configuration details are provided during checkout. Installation, maintenance, and servicing should only be performed by qualified electrical personnel in accordance with applicable electrical codes and manufacturer recommendations. The included one-year warranty covers repairs, labor, replacement parts, and standard shipping associated with recertification, excluding damage caused by misuse, improper installation, or normal operational wear and tear.
