Square D FAL361001021 100A 3 Pole Molded Case Circuit Breaker with 120VAC Shunt – Bolt-On Mount – 600VAC

The FAL361001021 by Square D is a high-performance molded case circuit breaker designed for dependable protection in industrial and commercial electrical distribution systems. Featuring a FAL frame style and a thermal magnetic non-interchangeable trip unit, this breaker provides reliable overload and short-circuit protection for demanding three-phase applications. It comes equipped with a factory-installed 120VAC shunt trip accessory, allowing remote tripping capability for enhanced safety and control. Its bolt-on mounting configuration ensures secure installation and stable electrical connectivity, while the rugged molded case construction delivers long-lasting operational durability. With a 100-amp rating and 3-pole configuration, the FAL361001021 is ideal for systems operating up to 600VAC.

Product Specifications

• Brand: Square D
• Model: FAL361001021
• Product Type: Molded Case Circuit Breaker
• Frame Style: FAL
• Frame Type: F
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Mounting Type: Bolt-On
• Amperage Rating: 100 Amp
• Number of Poles: 3 Pole
• Shunt Trip Voltage: 120VAC
• Frequency: 50/60 Hz
• Terminal Type: Line and Load End Standard
• Voltage Maximum: 600VAC
• Warranty: 1 Year
• Manufacturer: Square D

Technical Specifications

• Thermal magnetic trip mechanism for overload and short-circuit protection
• Factory-installed 120VAC shunt trip for remote breaker operation
• Non-interchangeable trip unit with fixed factory-calibrated settings
• Heavy-duty molded case construction for industrial-grade durability
• Bolt-on mounting design for secure installation and dependable operation
• Designed for three-phase electrical distribution systems
• Standard line and load end terminal configuration
• Rated for operation at 40°C ambient temperature

Voltage and Ratings

• Maximum Voltage: 600VAC
• Shunt Trip Control Voltage: 120VAC
• DC Voltage Rating: 250VDC
• Interrupting Capacity Ratings:
  • 25kA @ 240 VAC
  • 18kA @ 480 VAC
  • 14kA @ 600 VAC
  • 10kA @ 250 VDC
• Current Rating: 100 Ampere
• Pole Configuration: 3 Pole

Product Data

• Manufacturer: Square D
• Model Number: FAL361001021
• Connection Type: Bolt-On
• Frame Style: FAL
• Frame Type: F
• Lug Type: Line and Load End Standard
• Integrated Accessory: 120VAC Shunt Trip
• Interrupting Rating: 25kA / 18kA / 14kA / 10kA
• Application: Industrial and commercial electrical distribution systems
• Warranty Coverage: One Year In-House Warranty
• Warranty Includes: Repairs, replacement parts, labor, and standard shipping required for recertification

Important Note

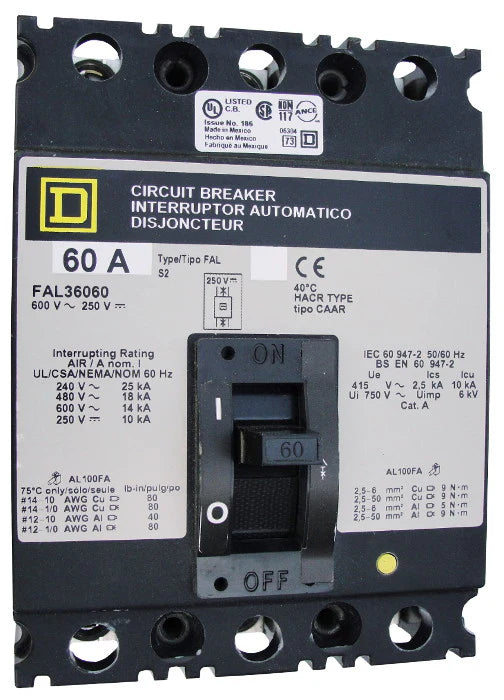

The product image shown represents a base model and is intended for identification purposes only. Accessories purchased with the breaker can be professionally installed at no additional cost when configuration details are provided during checkout. The included one-year in-house warranty covers repairs, labor, replacement parts, and standard shipping required for recertification, excluding damage caused by misuse, improper handling, or normal wear and tear.
