The Square D FAL3610016M is a molded case circuit breaker engineered for reliable motor circuit protection in demanding industrial and commercial electrical applications. Featuring a magnetic-only non-interchangeable instantaneous trip unit, this breaker delivers rapid short-circuit protection for motors and connected equipment without thermal overload functionality. Its FAL frame construction combined with a bolt-on mounting configuration ensures secure installation, rugged durability, and dependable long-term performance in motor control and power distribution systems. Rated for systems up to 600V, the FAL3610016M is ideal for applications requiring fast fault interruption and dependable motor protection.

Product Specifications

• Brand: Square D
• Model: FAL3610016M
• Product Type: Molded Case Circuit Breaker (MCCB)
• Frame Type: FAL / F Frame
• Rated Current: 100 Ampere
• Number of Poles: 3 Pole
• Trip Unit Type: Magnetic Only Non-Interchangeable Instantaneous Trip
• Protection Type: Motor Circuit Protection
• Mounting Type: Bolt On
• Operating Temperature Reference: 40°C
• Trip Setting: 150–580
• Terminal Type: Line and Load End Standard
• Application: Motor Protection and Industrial Power Distribution

Technical Specifications

• Maximum Voltage Rating: 600VAC
• Connection Type: Bolt-On Connection
• Instantaneous Magnetic Protection: Yes
• Thermal Overload Protection: No
• Frame Construction: Molded Case Design
• Pole Configuration: Three Pole
• Trip Mechanism: Instantaneous Magnetic Trip Only
• Standard Compliance: Industrial Circuit Protection Standards

Voltage and Ratings

• Rated Operational Voltage: Up to 600VAC
• Maximum Voltage Capacity: 600VAC
• Current Rating: 100A
• Pole Configuration: 3 Pole
• Trip Setting Range: 150–580 Instantaneous Trip

Product Data

• Manufacturer: Square D
• Frame Series: FAL Frame
• Product Condition Support: New Surplus & Certified Reconditioned
• Warranty: 1 Year In-House Warranty
• Installation Type: Bolt-On Mounting
• Terminal Configuration: Line and Load End Standard
• Product Application: Motor Circuit and Short-Circuit Protection

Important Note

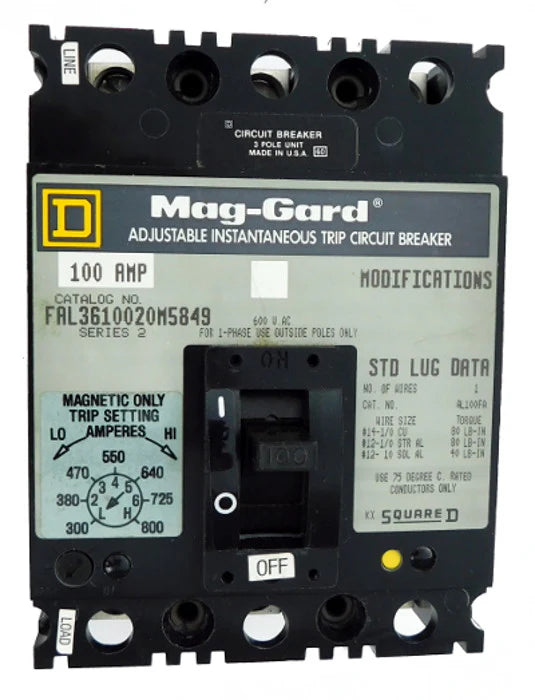

Product images are intended for identification purposes only and may represent a standard base model configuration. Accessories purchased together with the breaker can be professionally installed at no additional cost when detailed configuration information is provided during checkout. Installation, maintenance, and servicing should only be performed by qualified electrical personnel in accordance with applicable electrical codes and manufacturer recommendations. The included one-year warranty covers repairs, labor, replacement parts, and standard shipping associated with recertification, excluding damage caused by misuse, improper installation, or normal operational wear and tear.
