Square D

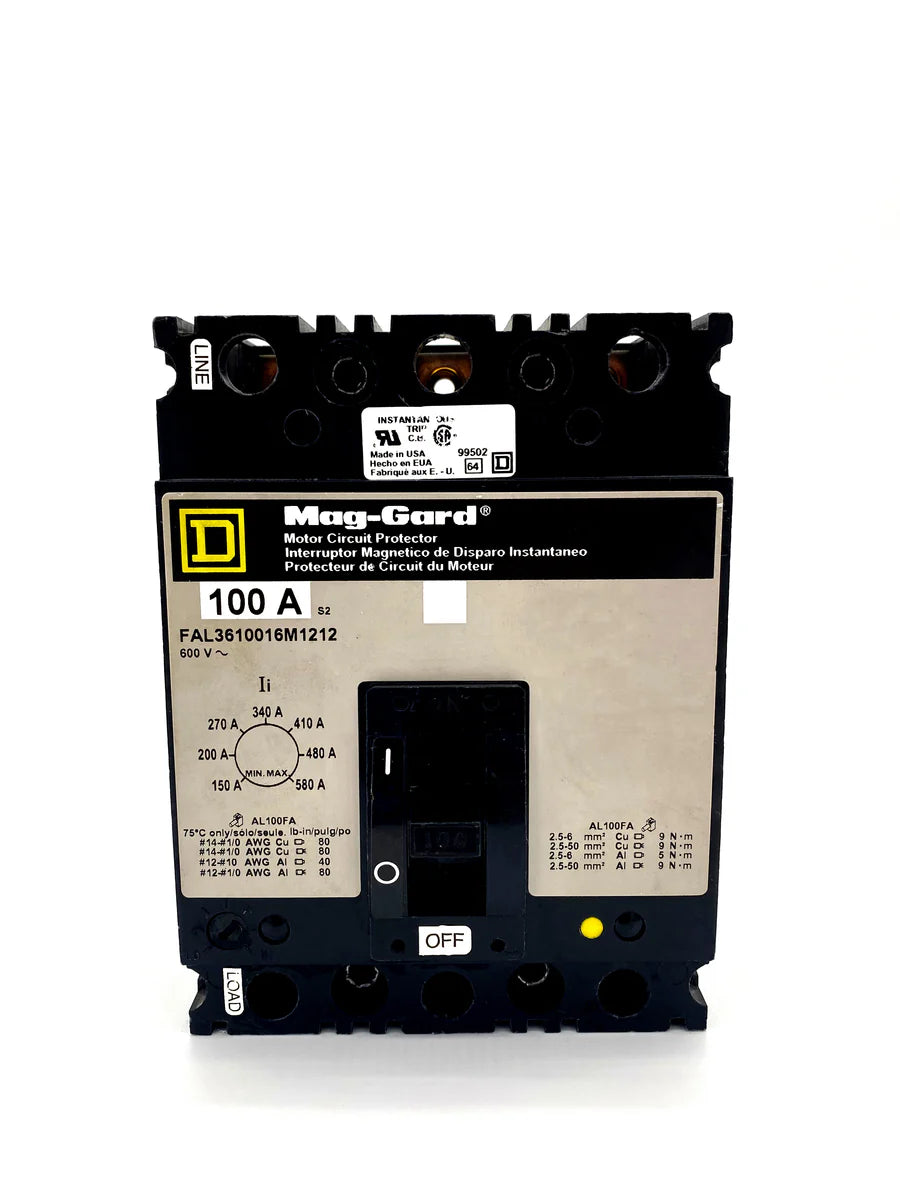

Square D FAL3610016M1212 100A 3 Pole Magnetic Only Circuit Breaker – Bolt On – 600V

In stock
SKU: FAL3610016M1212-NS
$2,099.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D FAL3610016M1212 is a molded case circuit breaker specifically designed for motor circuit protection in industrial and commercial electrical systems. Built with a magnetic-only non-interchangeable instantaneous trip unit, this breaker provides fast and reliable short-circuit protection for motors and associated electrical equipment. Its FAL frame construction ensures mechanical strength and dependable performance, while the bolt-on mounting design allows secure and stable installation in power distribution and motor control applications. Rated for systems up to 600V, the FAL3610016M1212 is ideal for demanding environments requiring rapid fault interruption and reliable motor protection.

Product Specifications

  • Brand: Square D
  • Model: FAL3610016M1212
  • Product Type: Molded Case Circuit Breaker (MCCB)
  • Frame Type: FAL / F Frame
  • Rated Current: 100 Ampere
  • Number of Poles: 3 Pole
  • Trip Unit Type: Magnetic Only Non-Interchangeable Instantaneous Trip
  • Protection Type: Motor Circuit Protection
  • Mounting Type: Bolt On
  • Operating Temperature Reference: 40°C
  • Trip Setting: 150–580
  • Terminal Type: Line and Load End Standard
  • Application: Motor Protection and Industrial Power Distribution

Technical Specifications

  • Maximum Voltage Rating: 600VAC
  • Connection Type: Bolt-On Connection
  • Instantaneous Magnetic Protection: Yes
  • Thermal Overload Protection: No
  • Frame Construction: Molded Case Design
  • Pole Configuration: Three Pole
  • Trip Mechanism: Instantaneous Magnetic Trip Only
  • Standard Compliance: Industrial Circuit Protection Standards

Voltage and Ratings

  • Rated Operational Voltage: Up to 600VAC
  • Maximum Voltage Capacity: 600VAC
  • Current Rating: 100A
  • Pole Configuration: 3 Pole
  • Trip Setting Range: 150–580 Instantaneous Trip

Product Data

  • Manufacturer: Square D
  • Frame Series: FAL Frame
  • Product Condition Support: New Surplus & Certified Reconditioned
  • Warranty: 1 Year In-House Warranty
  • Installation Type: Bolt-On Mounting
  • Terminal Configuration: Line and Load End Standard
  • Product Application: Motor Circuit and Short-Circuit Protection

Important Note

Product images are intended for identification purposes only and may represent a standard base model configuration. Accessories ordered together with the breaker can be professionally installed at no additional cost when detailed configuration instructions are provided during checkout. Installation, maintenance, and servicing should only be performed by qualified electrical personnel following applicable electrical codes and manufacturer recommendations. The included one-year warranty covers repairs, labor, replacement parts, and standard shipping associated with recertification, excluding damage resulting from misuse, improper installation, or normal operational wear and tear.
