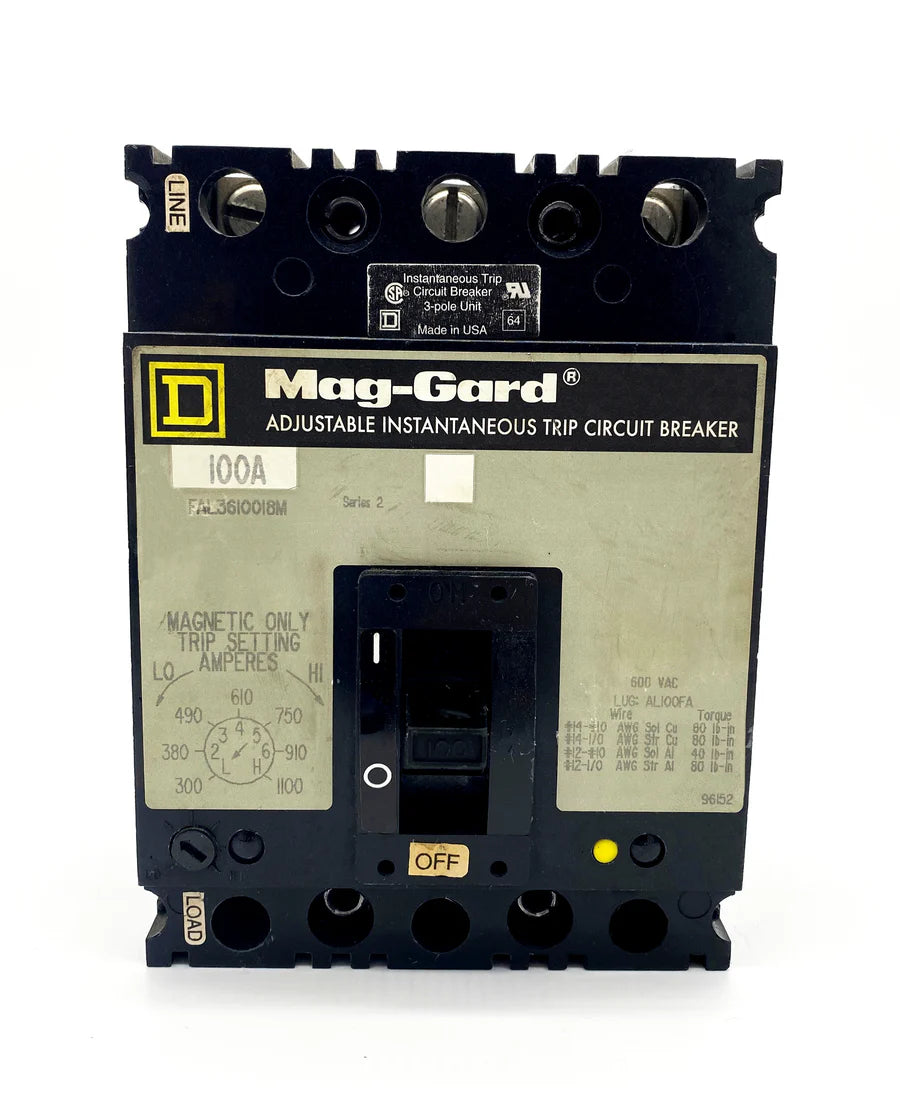

The Square D FAL3610018M is a molded case circuit breaker designed for reliable motor circuit protection in industrial and commercial electrical systems. It utilizes a magnetic-only non-interchangeable instantaneous trip unit, providing fast response to short-circuit conditions and protecting motors and connected equipment from electrical faults. Built on the rugged FAL frame platform, this breaker delivers dependable mechanical strength and consistent performance in demanding applications. Its bolt-on mounting configuration ensures secure installation in panelboards, motor control centers, and power distribution assemblies. Rated up to 600V, the FAL3610018M is well-suited for motor protection applications requiring rapid fault interruption and operational reliability.

Product Specifications

• Brand: Square D
• Model: FAL3610018M
• Product Type: Molded Case Circuit Breaker (MCCB)
• Frame Type: FAL / F Frame
• Rated Current: 100 Ampere
• Number of Poles: 3 Pole
• Trip Unit Type: Magnetic Only Non-Interchangeable Instantaneous Trip
• Protection Type: Motor Circuit Protection
• Mounting Type: Bolt On
• Operating Temperature Reference: 40°C
• Trip Setting Range: 300–1100
• Terminal Type: Line and Load End Standard
• Application: Motor Protection and Industrial Power Distribution

Technical Specifications

• Maximum Voltage Rating: 600VAC
• Connection Type: Bolt-On Connection
• Instantaneous Magnetic Protection: Yes
• Thermal Overload Protection: No
• Frame Construction: Molded Case Design
• Pole Configuration: Three Pole
• Trip Mechanism: Instantaneous Magnetic Trip Only
• Standard Compliance: Industrial Circuit Protection Standards

Voltage and Ratings

• Rated Operational Voltage: Up to 600VAC
• Maximum Voltage Capacity: 600VAC
• Current Rating: 100A
• Pole Configuration: 3 Pole
• Trip Setting Range: 300–1100 Instantaneous Trip

Product Data

• Manufacturer: Square D
• Frame Series: FAL Frame
• Product Condition Support: New Surplus & Certified Reconditioned
• Warranty: 1 Year In-House Warranty
• Installation Type: Bolt-On Mounting
• Terminal Configuration: Line and Load End Standard
• Product Application: Motor Circuit and Short-Circuit Protection

Important Note

Product images are intended for identification purposes only and may represent a standard base model configuration. Accessories purchased with the breaker can be installed at no additional cost when full configuration details are provided at the time of order. All installation and maintenance work should be performed by qualified electrical personnel in accordance with applicable electrical codes and manufacturer guidelines. The included one-year warranty covers repair, parts, labor, and standard shipping for recertification, excluding damage caused by misuse, improper installation, or normal operational wear and tear.
