Square D FAL3615024M 150A 3 Pole Magnetic Only Circuit Breaker – Bolt On – 600V

In stock
SKU: FAL3615024M-NS
$3,199.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D FAL3615024M is a molded case circuit breaker designed for robust motor circuit protection in industrial and commercial electrical systems. It features a magnetic-only non-interchangeable instantaneous trip unit that delivers fast and reliable short-circuit protection for motors and connected equipment. Built on the durable FAL frame platform, this breaker ensures strong mechanical performance and long service life in demanding electrical environments. Its bolt-on mounting design provides secure installation in panelboards, motor control centers, and distribution systems. Rated up to 600V, the FAL3615024M is suitable for high-capacity motor protection applications requiring dependable fault interruption.

Product Specifications

  • Brand: Square D
  • Model: FAL3615024M
  • Product Type: Molded Case Circuit Breaker (MCCB)
  • Frame Type: FAL / F Frame
  • Rated Current: 150 Ampere
  • Number of Poles: 3 Pole
  • Trip Unit Type: Magnetic Only Non-Interchangeable Instantaneous Trip
  • Protection Type: Motor Circuit Protection
  • Mounting Type: Bolt On
  • Operating Temperature Reference: 40°C
  • Trip Setting Range: 450–1100
  • Terminal Type: Line and Load End Standard
  • Application: Motor Protection and Industrial Power Distribution

Technical Specifications

  • Maximum Voltage Rating: 600VAC
  • Connection Type: Bolt-On Connection
  • Instantaneous Magnetic Protection: Yes
  • Thermal Overload Protection: No
  • Frame Construction: Molded Case Design
  • Pole Configuration: Three Pole
  • Trip Mechanism: Instantaneous Magnetic Trip Only
  • Standard Compliance: Industrial Circuit Protection Standards

Voltage and Ratings

  • Rated Operational Voltage: Up to 600VAC
  • Maximum Voltage Capacity: 600VAC
  • Current Rating: 150A
  • Pole Configuration: 3 Pole
  • Trip Setting Range: 450–1100 Instantaneous Trip

Product Data

  • Manufacturer: Square D
  • Frame Series: FAL Frame
  • Product Condition Support: New Surplus & Certified Reconditioned
  • Warranty: 1 Year In-House Warranty
  • Installation Type: Bolt-On Mounting
  • Terminal Configuration: Line and Load End Standard
  • Product Application: Motor Circuit and Short-Circuit Protection

Important Note

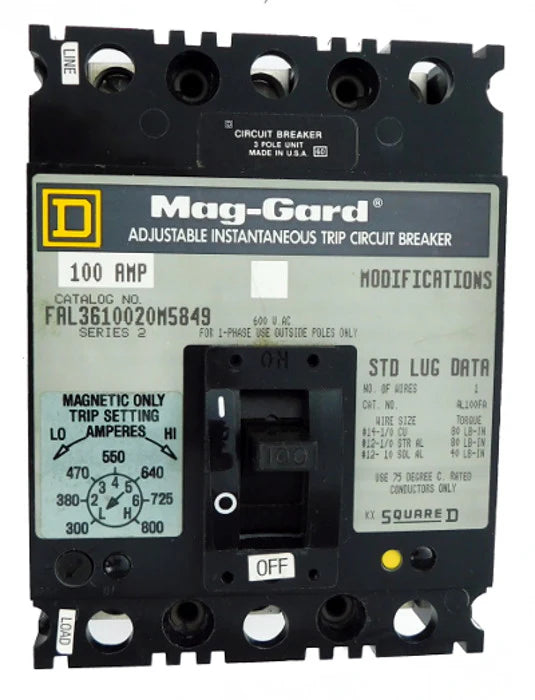

Product images are for identification purposes only and may represent a standard base configuration. Accessories ordered with the breaker can be installed at no additional cost when full configuration details are provided at the time of purchase. All installation and servicing should be performed by qualified electrical personnel in accordance with applicable electrical codes and manufacturer instructions. The included one-year warranty covers repair, parts, labor, and standard shipping for recertification, excluding damage resulting from misuse, improper installation, or normal operational wear.
