Square D FHP36025 25A 3 Pole Molded Case Circuit Breaker – Panel Mounted – 600VAC

In stock
SKU: FHP36025-NS GTIN/UPC: 785901747413
$299.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The FHP36025 by Square D is a high-performance panel-mounted molded case circuit breaker designed for industrial and commercial electrical distribution systems. Built with an FHP frame style and a thermal magnetic non-interchangeable trip unit, this breaker provides dependable overload and short-circuit protection for demanding three-phase applications. Its panel-mounted configuration allows secure integration into switchboards and electrical panel systems, while the durable molded case construction ensures long-lasting operational reliability. With a 25-amp current rating and strong interrupting capability, the FHP36025 is ideal for systems operating up to 600VAC.

Product Specifications

  • Brand: Square D
  • Model: FHP36025
  • Product Type: Molded Case Circuit Breaker
  • Frame Style: FHP
  • Frame Type: F
  • Trip Unit Type: Thermal Magnetic Non-Interchangeable
  • Mounting Type: Panel Mounted
  • Amperage Rating: 25 Amp
  • Number of Poles: 3 Pole
  • Frequency: 50/60 Hz
  • Terminal Type: Load End Only
  • Voltage Maximum: 600VAC
  • Warranty: 1 Year
  • Manufacturer: Square D

Technical Specifications

  • Thermal magnetic trip mechanism for overload and short-circuit protection
  • Non-interchangeable trip unit with fixed factory-calibrated settings
  • Panel-mounted design for secure installation in switchboards and panel assemblies
  • High interrupting capacity construction for demanding electrical fault conditions
  • Heavy-duty molded case construction for industrial-grade durability
  • Designed for three-phase electrical distribution systems
  • Load-end terminals only configuration
  • Rated for operation at 40°C ambient temperature

Voltage and Ratings

  • Maximum Voltage: 600VAC
  • Interrupting Capacity Ratings:
    • 65kA @ 240 VAC
    • 25kA @ 480 VAC
    • 18kA @ 600 VAC
  • Current Rating: 25 Ampere
  • Pole Configuration: 3 Pole

Product Data

  • Manufacturer: Square D
  • Model Number: FHP36025
  • Connection Type: Panel Mounted
  • Frame Style: FHP
  • Frame Type: F
  • Lug Type: Load End Only
  • Interrupting Rating: 65kA / 25kA / 18kA
  • Application: Industrial and commercial electrical distribution systems
  • Warranty Coverage: One Year In-House Warranty
  • Warranty Includes: Repairs, replacement parts, labor, and standard shipping required for recertification

Important Note

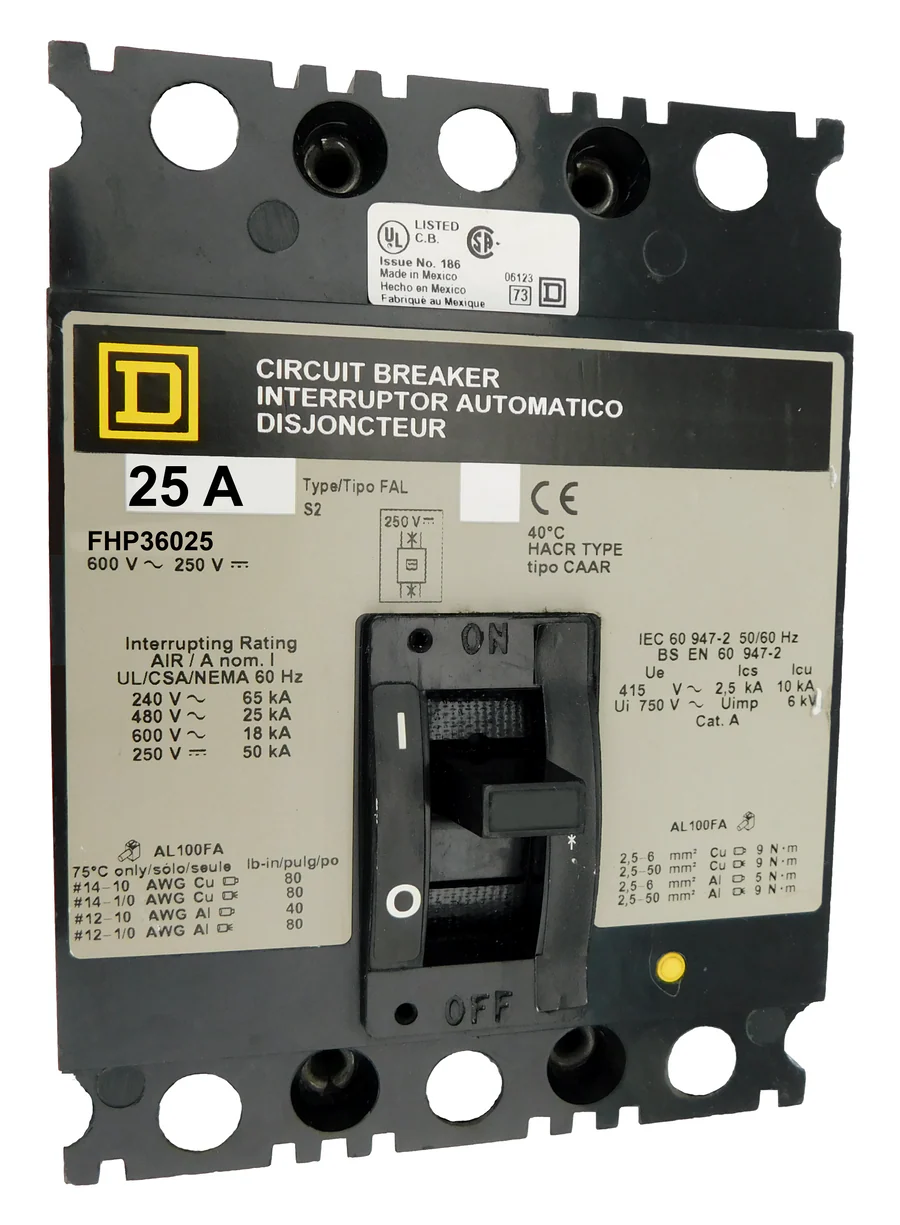

The product image shown represents a base model and is intended for identification purposes only. Accessories purchased with the breaker can be professionally installed at no additional cost when configuration details are provided during checkout. The included one-year in-house warranty covers repairs, labor, replacement parts, and standard shipping required for recertification, excluding damage caused by misuse, improper handling, or normal wear and tear.
