Square D FHP36050 50A 3 Pole Molded Case Circuit Breaker – Panel Mounted – 600VAC
Couldn't load pickup availability
Ask an expert
The FHP36050 by Square D is a panel-mounted molded case circuit breaker designed for reliable protection in industrial and commercial electrical distribution systems. Featuring an FHP frame style and a thermal magnetic non-interchangeable trip unit, this breaker provides dependable overload and short-circuit protection for demanding three-phase applications. Its panel-mounted configuration allows secure integration into switchboards and electrical panels, while the durable molded case construction ensures long-term operational reliability. With a 50-amp current rating and 3-pole configuration, the FHP36050 is suitable for systems operating up to 600VAC.
Product Specifications
- Brand: Square D
- Model: FHP36050
- Product Type: Molded Case Circuit Breaker
- Frame Style: FHP
- Frame Type: F
- Trip Unit Type: Thermal Magnetic Non-Interchangeable
- Mounting Type: Panel Mounted
- Amperage Rating: 50 Amp
- Number of Poles: 3 Pole
- Frequency: 50/60 Hz
- Terminal Type: Load End Only
- Voltage Maximum: 600VAC
- Warranty: 1 Year
- Manufacturer: Square D
Technical Specifications
- Thermal magnetic trip mechanism for overload and short-circuit protection
- Non-interchangeable trip unit with fixed factory-calibrated settings
- Heavy-duty molded case construction for industrial-grade durability
- Panel-mounted configuration for secure installation in distribution equipment
- Designed for three-phase electrical distribution applications
- Load-end terminals only configuration
- Rated for operation at 40°C ambient temperature
Voltage and Ratings
- Maximum Voltage: 600VAC
- Interrupting Capacity Ratings:
- 65kA @ 240 VAC
- 25kA @ 480 VAC
- 18kA @ 600 VAC
- Current Rating: 50 Ampere
- Pole Configuration: 3 Pole
Product Data
- Manufacturer: Square D
- Model Number: FHP36050
- Connection Type: Panel Mounted
- Frame Style: FHP
- Frame Type: F
- Lug Type: Load End Only
- Interrupting Rating: 65kA / 25kA / 18kA
- Application: Industrial and commercial electrical distribution systems
- Warranty Coverage: One Year In-House Warranty
- Warranty Includes: Repairs, replacement parts, labor, and standard shipping required for recertification
Important Note

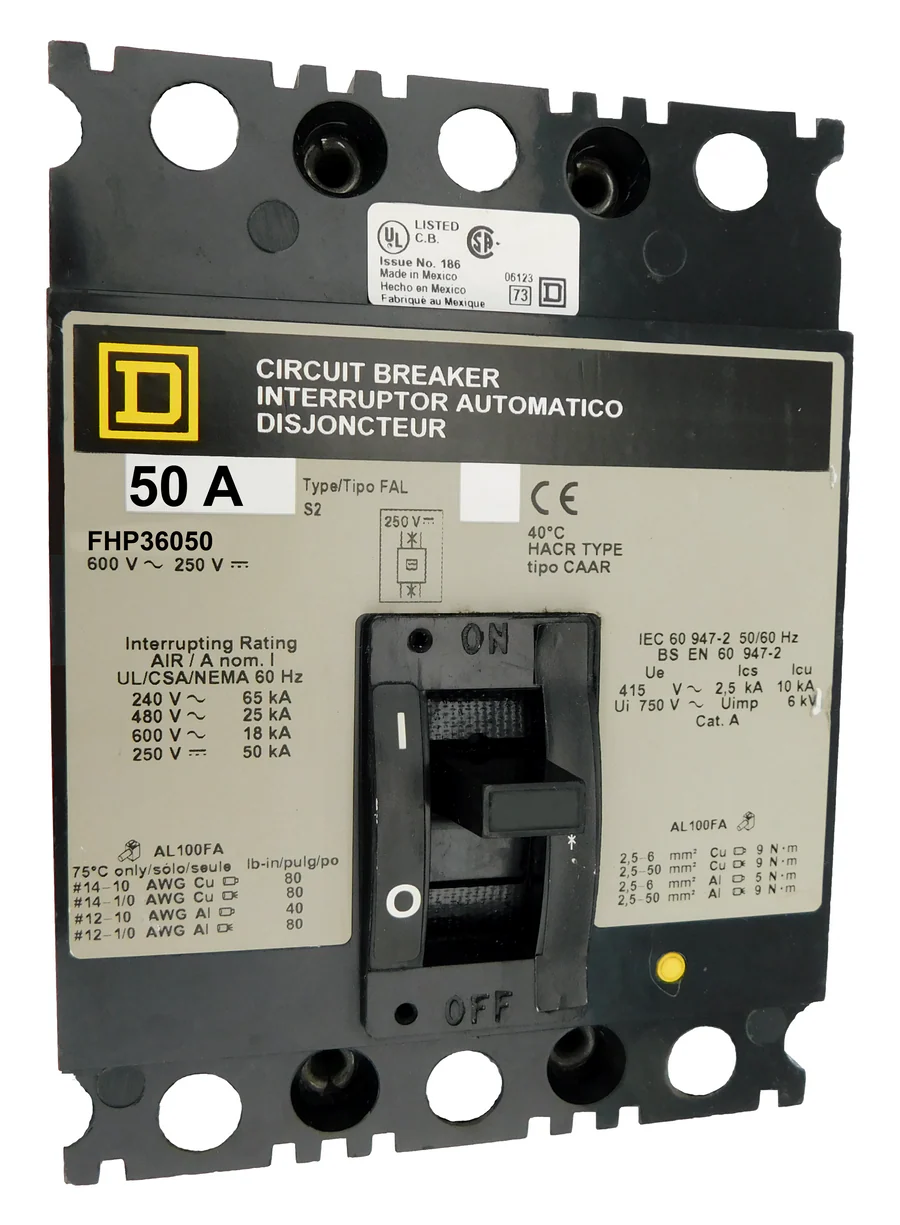

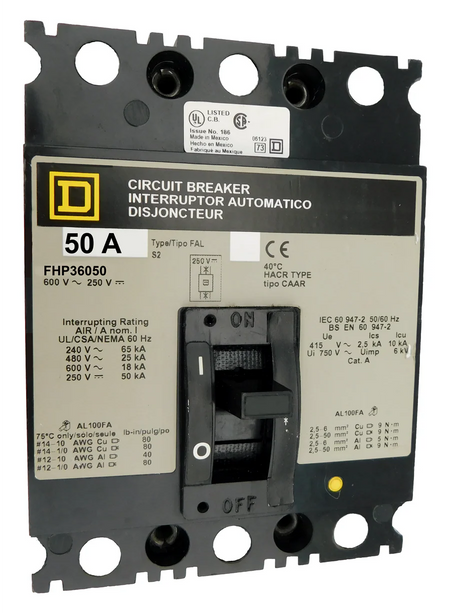

The product image shown represents a base model and is intended for identification purposes only. Accessories purchased with the breaker can be professionally installed at no additional cost when configuration details are provided during checkout. The included one-year in-house warranty covers repairs, labor, replacement parts, and standard shipping required for recertification, excluding damage caused by misuse, improper handling, or normal wear and tear.
