The Square D GJL36007M02 is a premium PowerPact molded case circuit breaker designed to provide reliable protection for industrial and commercial electrical distribution systems. Featuring a thermal magnetic non-interchangeable trip unit, this breaker delivers dependable overload and short-circuit protection to maintain system safety and operational efficiency. Its GJL frame construction combined with a bolt-on mounting configuration ensures secure installation, long-term durability, and consistent performance under demanding electrical conditions. Rated for applications up to 600V, the GJL36007M02 offers high interrupting capacity, making it suitable for critical power distribution environments requiring superior fault protection.

Product Specifications

• Brand: Square D
• Model: GJL36007M02
• Product Type: Molded Case Circuit Breaker (MCCB)
• Product Series: PowerPact
• Frame Type: GJL / G Frame
• Rated Current: 7 Ampere
• Number of Poles: 3 Pole
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Mounting Type: Bolt On
• Terminal Type: Line and Load End Standard
• Application: Commercial and Industrial Power Distribution

Technical Specifications

• Interrupting Capacity: 100kA @ 240VAC
• Interrupting Capacity: 65kA @ 480VAC
• Interrupting Capacity: 18kA @ 600Y/347VAC
• Maximum Voltage Rating: 600VAC
• Protection Type: Overload and Short Circuit Protection
• Connection Type: Bolt-On Connection
• Frame Construction: Molded Case Design
• Trip Setting: Factory Standard
• Standard Compliance: Industrial Circuit Protection Standards

Voltage and Ratings

• Rated Operational Voltage: 240VAC / 480VAC / 600Y/347VAC
• Maximum Voltage Capacity: 600VAC
• Current Rating: 7A
• Pole Configuration: 3 Pole
• Interrupting Rating at 240VAC: 100 Kiloampere
• Interrupting Rating at 480VAC: 65 Kiloampere
• Interrupting Rating at 600Y/347VAC: 18 Kiloampere

Product Data

• Manufacturer: Square D
• Product Series: PowerPact GJL Frame
• Product Condition Support: New Surplus & Certified Reconditioned
• Warranty: 1 Year In-House Warranty
• Installation Type: Bolt-On Mounting
• Terminal Configuration: Line and Load End Standard
• Product Use: Electrical Distribution and Circuit Protection Systems

Important Note

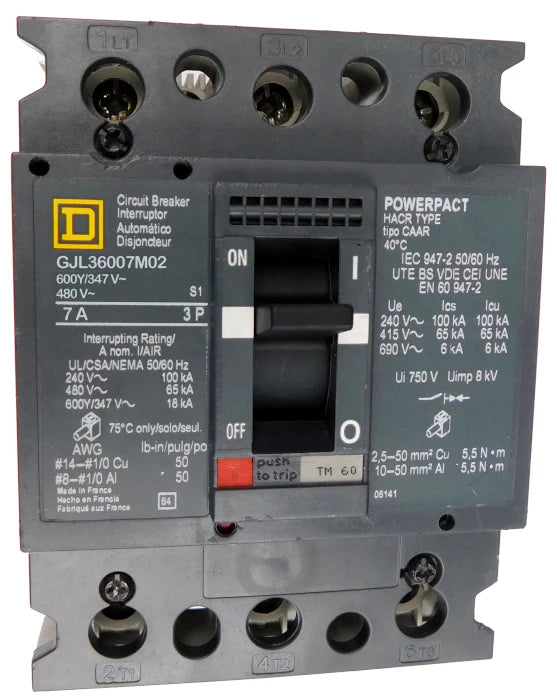

Product images are intended for identification purposes only and may represent a standard base model configuration. Accessories purchased together with the breaker can be professionally installed at no additional cost when detailed configuration instructions are provided during checkout. Installation, maintenance, and servicing should only be carried out by qualified electrical personnel in accordance with applicable electrical codes and manufacturer recommendations. The included one-year warranty covers repairs, labor, replacement parts, and standard shipping required for recertification, excluding damage caused by misuse, improper installation, or normal wear and tear.
