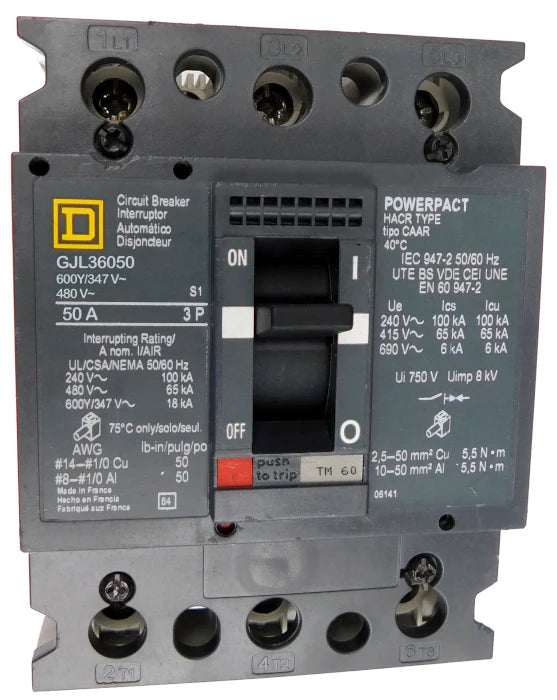

The Square D GJL36050 is a high-performance PowerPact molded case circuit breaker designed to provide dependable protection for commercial and industrial electrical distribution systems. Featuring a thermal magnetic non-interchangeable trip unit, this breaker delivers reliable overload and short-circuit protection to ensure operational safety and system reliability. Its GJL frame construction combined with a bolt-on mounting configuration offers secure installation, rugged durability, and long-lasting performance in demanding electrical applications. Rated for systems up to 600V, the GJL36050 provides high interrupting capacity for superior fault protection in critical power environments.

Product Specifications

• Brand: Square D
• Model: GJL36050
• Product Type: Molded Case Circuit Breaker (MCCB)
• Product Series: PowerPact
• Frame Type: GJL / G Frame
• Rated Current: 50 Ampere
• Number of Poles: 3 Pole
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Mounting Type: Bolt On
• Operating Temperature Reference: 40°C
• Trip Setting: 800–1400
• Terminal Type: Line and Load End Standard
• Application: Commercial and Industrial Power Distribution

Technical Specifications

• Interrupting Capacity: 100kA @ 240VAC
• Interrupting Capacity: 65kA @ 480VAC
• Interrupting Capacity: 18kA @ 600Y/347VAC
• Maximum Voltage Rating: 600VAC
• Protection Type: Overload and Short Circuit Protection
• Connection Type: Bolt-On Connection
• Frame Construction: Molded Case Design
• Standard Compliance: Industrial Circuit Protection Standards

Voltage and Ratings

• Rated Operational Voltage: 240VAC / 480VAC / 600Y/347VAC
• Maximum Voltage Capacity: 600VAC
• Current Rating: 50A
• Pole Configuration: 3 Pole
• Interrupting Rating at 240VAC: 100 Kiloampere
• Interrupting Rating at 480VAC: 65 Kiloampere
• Interrupting Rating at 600Y/347VAC: 18 Kiloampere

Product Data

• Manufacturer: Square D
• Product Series: PowerPact GJL Frame
• Product Condition Support: New Surplus & Certified Reconditioned
• Warranty: 1 Year In-House Warranty
• Installation Type: Bolt-On Mounting
• Terminal Configuration: Line and Load End Standard
• Product Use: Electrical Distribution and Circuit Protection Systems

Important Note

Product images are provided for identification purposes only and may represent a standard base model configuration. Accessories purchased together with the breaker can be professionally installed at no additional cost when detailed configuration requirements are provided during checkout. Installation, servicing, and maintenance must be performed by qualified electrical personnel in accordance with applicable electrical codes and manufacturer guidelines. The included one-year warranty covers repairs, labor, replacement parts, and standard shipping associated with recertification, excluding damage caused by misuse, improper installation, or normal operational wear and tear.
