Square D HDA260501 PowerPact Circuit Breaker – 2 Pole – 50A – 600V – Thermal Magnetic – I-Line Plug-In – 18kA @ 480V

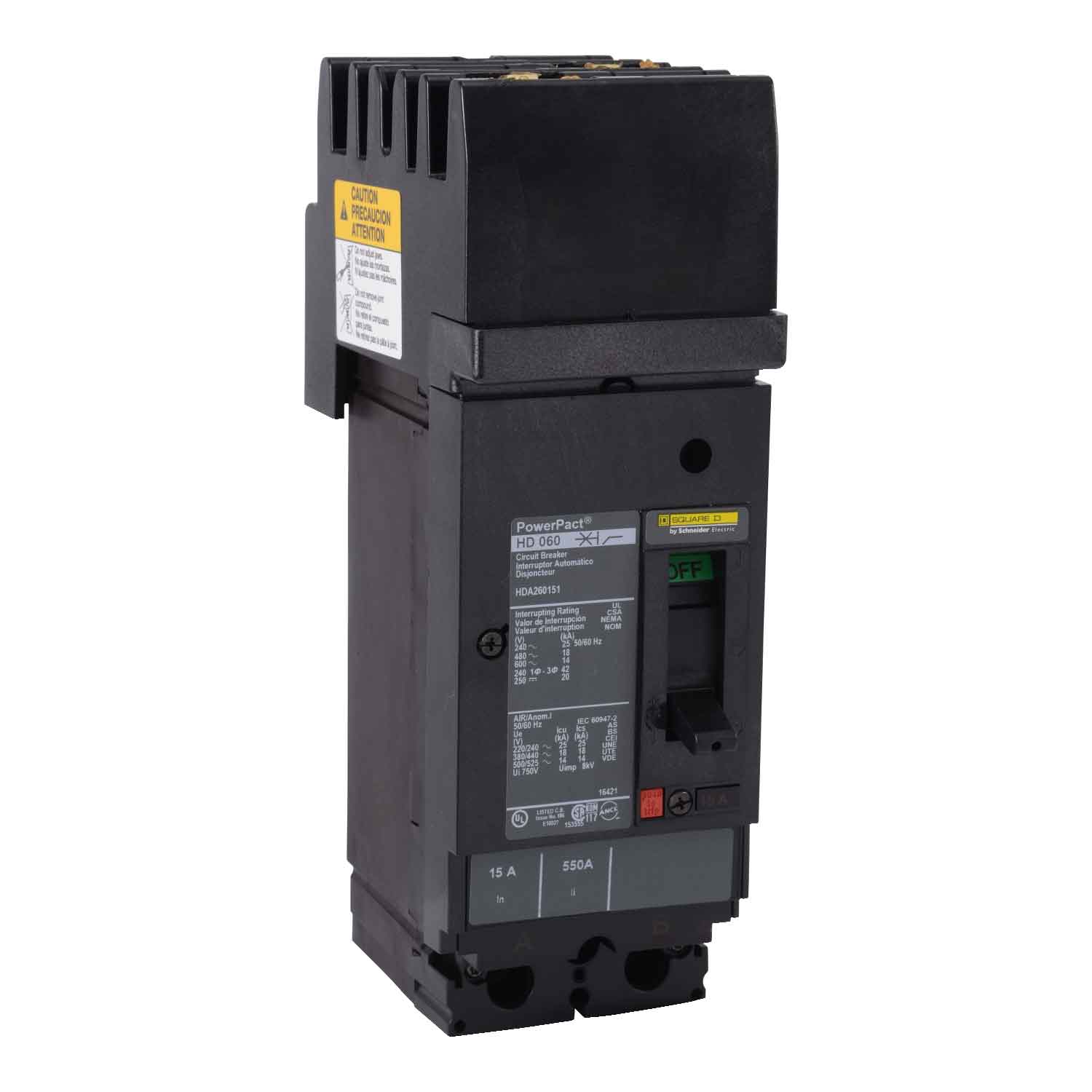

The Square D HDA260501 PowerPact Circuit Breaker is a high-performance molded case circuit breaker designed for dependable protection of electrical distribution systems in commercial and industrial environments. Manufactured by Schneider Electric and part of the PowerPact H-Frame family, this 2-pole breaker provides reliable thermal-magnetic protection against overloads and short-circuit faults.

Rated at 50A and 600V AC, the HDA260501 incorporates a non-interchangeable thermal-magnetic trip unit with Long-Time and Instantaneous (LI) protection functions. The thermal element responds to prolonged overload conditions, while the magnetic trip mechanism delivers rapid interruption of high fault currents to help protect conductors, equipment, and connected loads.

The breaker features an I-Line style plug-in connection and mounting bracket design for quick installation into compatible Square D I-Line panelboards and switchboards. Configured with an A & B phase connection arrangement, the HDA260501 offers a standard interrupting capacity of 18kA at 480V AC and includes load-side lug terminals for secure field wiring.

Its compact H-Frame design, toggle operating handle, and rugged molded case construction make the HDA260501 an excellent solution for branch circuit protection, feeder applications, and industrial power distribution systems requiring reliable and long-lasting circuit protection.

Specifications

• Brand: Square D by Schneider Electric
• Manufacturer: Schneider Electric
• Part Number: HDA260501
• Product Family: PowerPact
• Series: HDA Series
• Frame Type: H-Frame
• Device Type: Molded Case Circuit Breaker
• Number of Poles: 2 Pole
• Phase: 1 Phase
• Current Rating: 50A
• Voltage Rating: 600V AC
• Connection Type: I-Line Style Plug-In
• Mounting Mode: I-Line Bracket
• Protection Type: Thermal Magnetic
• Trip Unit Technology: Thermal-Magnetic
• Trip Functions: LI (Long-Time and Instantaneous)
• Control Type: Toggle
• Breaking Capacity Code: D
• Phase Connection: A & B Phase

Electrical Performance

• Rated Current: 50A
• Maximum Voltage: 600V AC
• Interrupting Capacity: 18kA @ 480V AC
• Continuous Current Rating: 80%
• Magnetic Hold Current: 400A
• Trip Unit: Non-Interchangeable
• Overload Protection: Long-Time Thermal Trip
• Short-Circuit Protection: Instantaneous Magnetic Trip
• Standard Interrupting Capacity: Yes

Mechanical & Construction Features

• H-Frame molded case construction
• Compact industrial design
• I-Line plug-in mounting system
• Toggle handle operation
• Non-interchangeable thermal-magnetic trip unit
• Rugged molded insulating case
• Load-side lug terminals included
• Designed for commercial and industrial power distribution applications
• Long service life and dependable performance

Electrical Connections

• Line Connection: I-Line Connection
• Load Connection: Lug Terminals
• Conductor Compatibility: Copper or Aluminum
• Wire Size Range: AWG 14 to AWG 3/0

Dimensions & Weight

• Dimensions (H × W × D): 9.73" × 2.94" × 4.80"
• Weight: 1.36 lbs

Applications

• Commercial electrical distribution systems
• Industrial power distribution equipment
• Branch circuit protection
• Feeder circuit protection
• Square D I-Line panelboards
• Square D I-Line switchboards
• Manufacturing facilities
• Control panels and OEM equipment
• Electrical infrastructure upgrades and replacements

Standards & Certifications

• UL Listed
• CSA Approved
• Manufactured to applicable PowerPact molded case circuit breaker standards
• Suitable for commercial and industrial electrical installations
